Center Case

CENTER CASE / REMOVAL






Center Case Oil Seal
Remove center case oil seal.

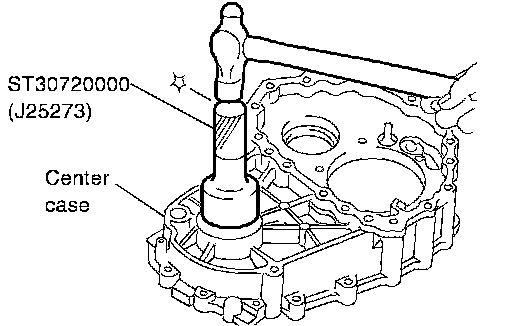

CENTER CASE / INSTALLATION






Center Case Oil Seal
Install center case oil seal.
