Shift Control Components

Shift Control Components
DISASSEMBLY






1. Mount adapter plate on vise.
2. Remove OD and reverse fork rod.

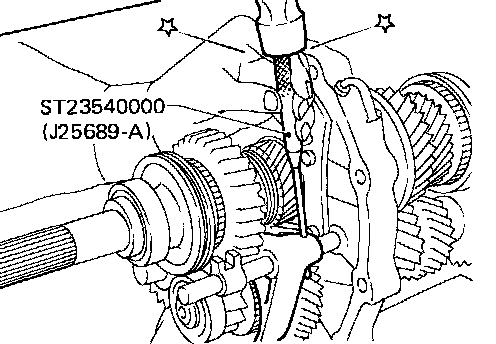

3. Drive out retaining pin from striking lever.
4. While pulling out striking rod, remove striking lever and striking interlock. Then remove 1st and 2nd, 3rd and 4th, and reverse shift forks.

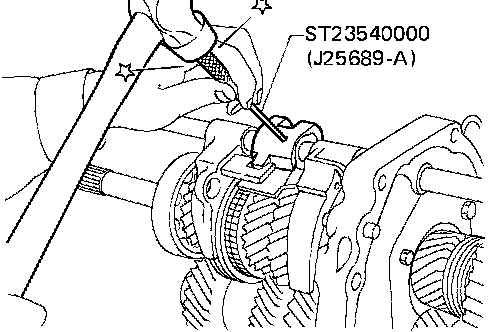

5. Drive out retaining pin from OD shift fork.

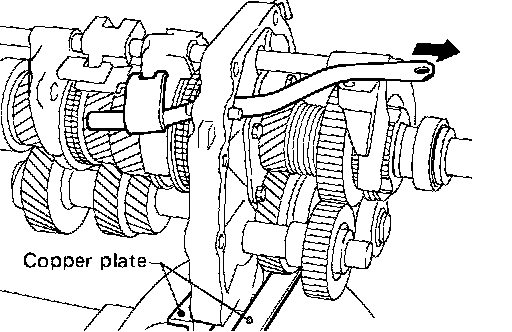

6. Pull out OD fork rod and then remove OD shift fork.
