Inspection

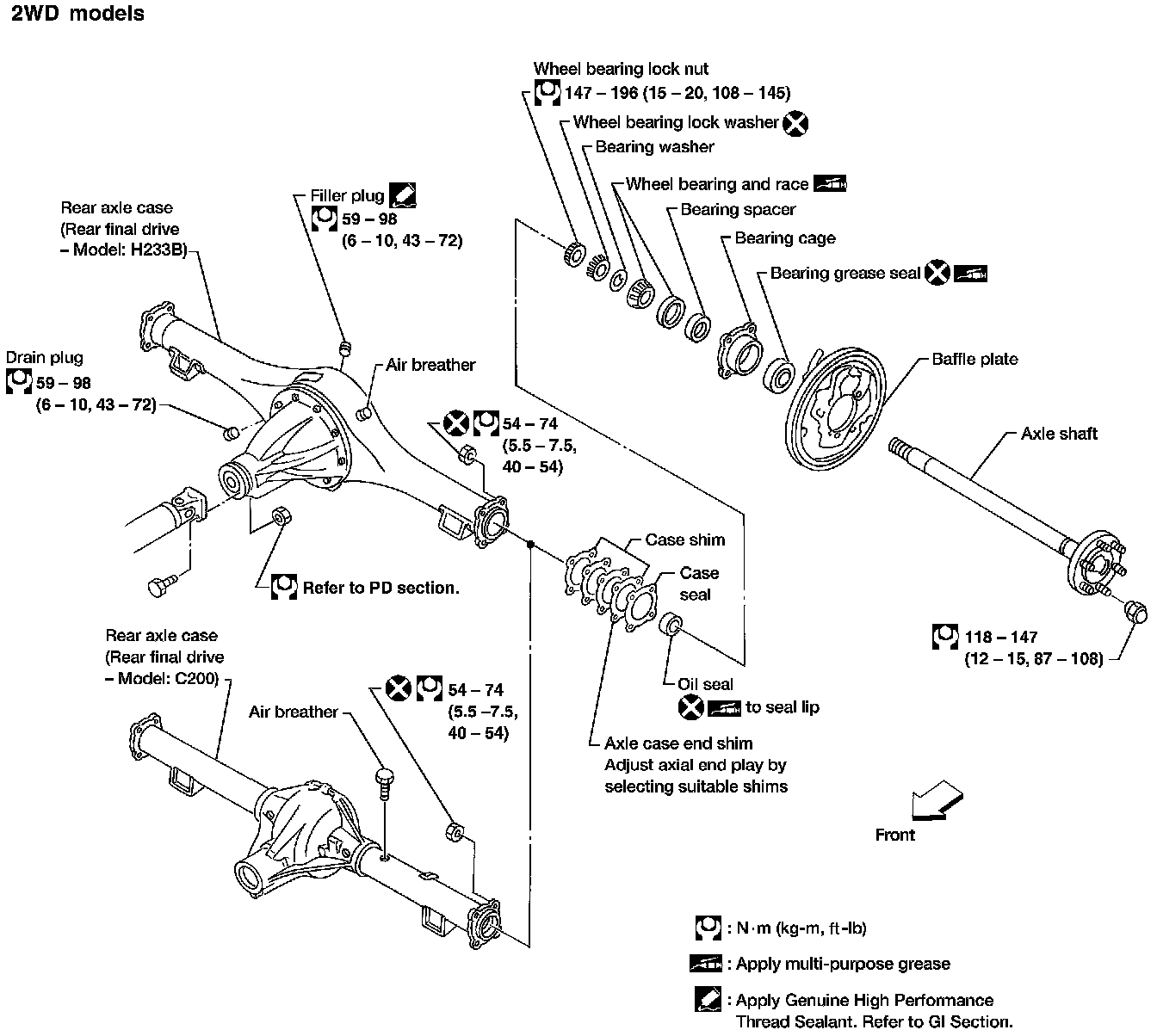

Rear Axle - 2WD:

Rear Axle - 4WD:

Inspection / AXLE SHAFT
Check axle shaft for straightness, cracks, damage, wear and distortion. Replace if necessary.

WHEEL BEARING
Make sure wheel bearing rolls freely and is free from noise, cracks, pitting and wear.

AXLE CASE
Check axle case for yield, deformation and cracks. Replace if necessary.
