Preparation For Disassembly

H233B - Rear Final Drive / Limited Slip Differential
PREPARATION FOR DISASSEMBLY

CAUTION: Do not run engine when only one wheel (rear) is off the ground.






Checking Differential Torque

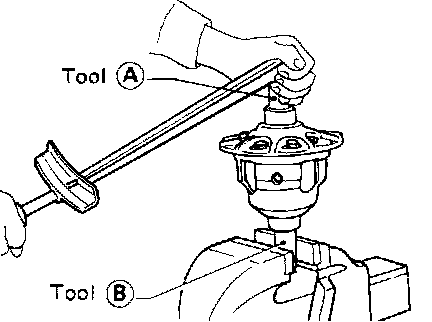

Measure differential torque with Tool.

If it is not within the specifications, inspect components of limited slip differential.

Differential torque:..........................187 - 245 Nm (19 - 25 kg.m, 138 - 180 ft. lbs.)

Tool number: A - KV38105210 (-)
Tool number: B - KV38105220 (-)
