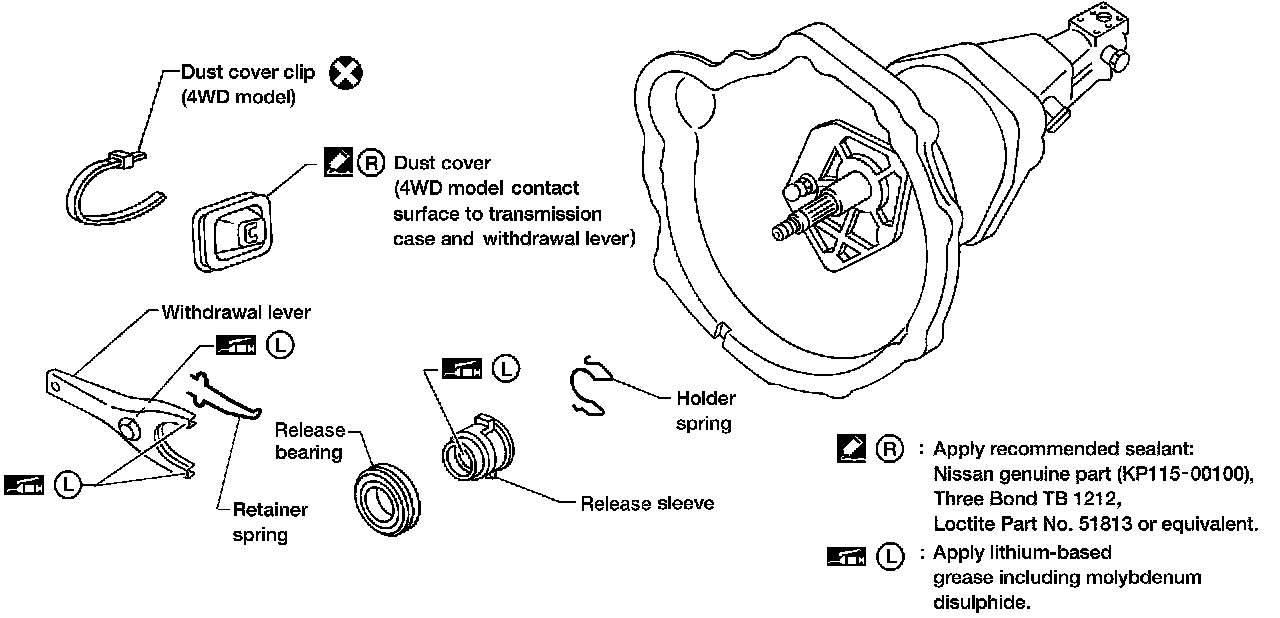

Clutch Release Mechanism

Clutch Release Mechanism

Clutch Release Mechanism:

Inspection
Check the following items, and replace if necessary.






Release bearing, to see that it rolls freely and is free from noise, cracks, pitting or wear

Release sleeve and withdrawal lever rubbing surface, for wear, rust or damage

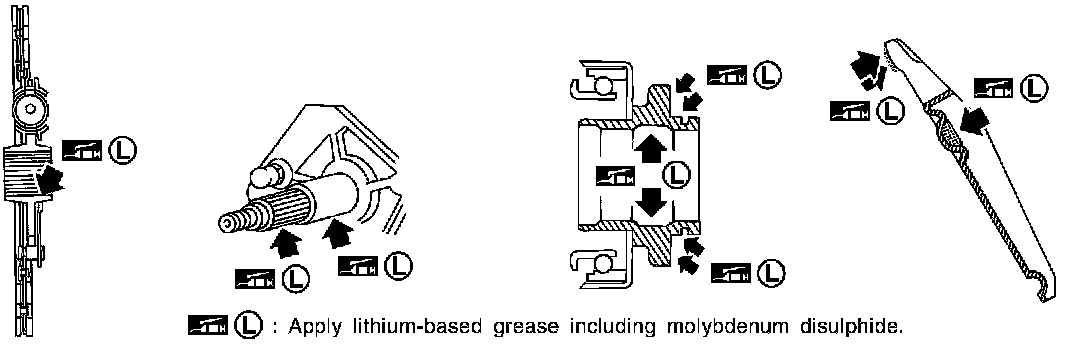

Lubrication
Apply recommended grease to contact surface and rubbing surface.

Too much lubricant might damage clutch disc facing.

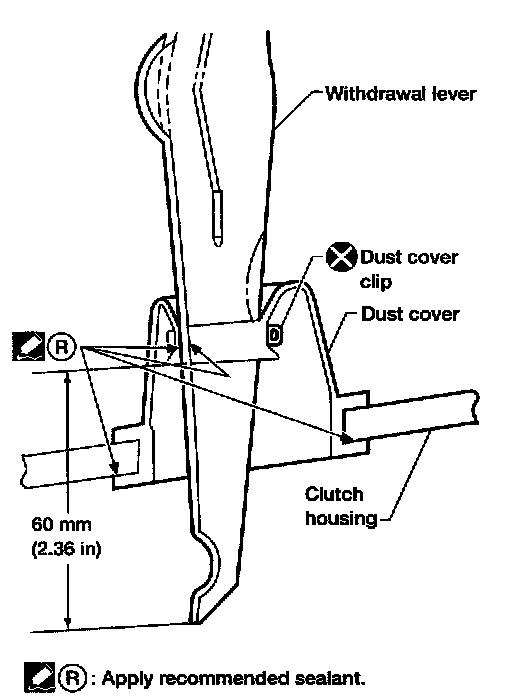

Waterproof for 4WD Model
Apply recommended sealant to contact surface of dust cover to transmission case and withdrawal lever and then install dust cover clip.

Recommended sealant: Nissan genuine part (KP11500100), Three Bond TB1212, Loctite Part Number 51813 or equivalent.
