Inspection

INSPECTION

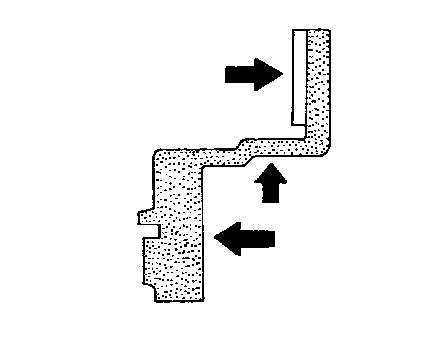

Rear Internal Gear and Forward Clutch Hub
Check gear for excessive wear, chips or cracks.

Check frictional surfaces of forward one-way clutch and thrust washer for wear or damage.

Check spline for wear or damage.

Snap Ring and End Bearing
Check for deformation or damage.
