Removal

Removal
-4WD MODEL-






CAUTION: When removing the A/T assembly from engine, first remove the crankshaft position sensor (OBD. from the A/T assembly upper side.
Be careful not to damage sensor edge.

1. Remove battery negative terminal.
2. Remove exhaust front and rear tubes.
3. Remove fluid charging pipe from A/T assembly.
4. Remove oil cooler pipe from A/T assembly.
5. Plug up openings such as the fluid charging pipe hole, etc.
6. Remove propeller shaft.
7. Remove transfer control linkage from transfer.
- Insert plug into rear oil seal after removing rear propeller shaft.
- Be careful not to damage spline, sleeve yoke and rear oil seal.

8. Remove A/T control cable from A/T assembly.
9. Disconnect A/T, turbine revolution sensor (VG33ER only. and vehicle speed sensor harness connectors.





10. Remove starter motor.
11. Remove gusset and rear plate cover securing engine to A/T assembly.

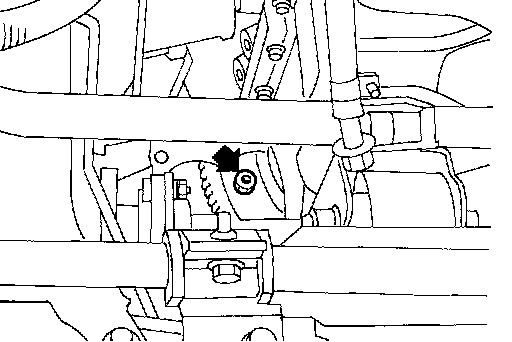

12. Remove bolts securing torque converter to drive plate. Remove the bolts by turning crankshaft.

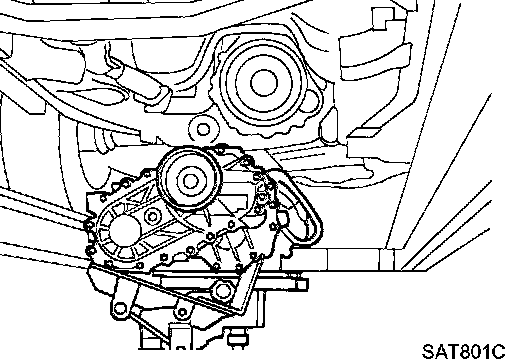

13. Support A/T and transfer assembly with a jack.
14. Remove rear engine mounting member from body and A/T assembly. Tighten rear engine mounting member to the specified torque.
15. Remove bolts securing A/T assembly to engine.
16. Lower A/T assembly with transfer.
