Steering Wheel Play

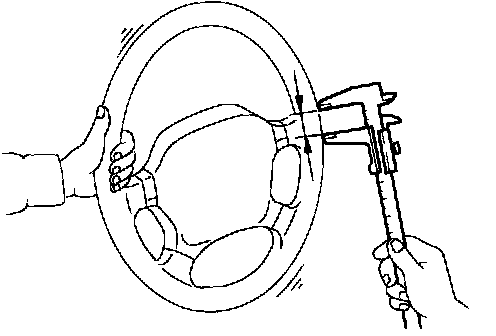

Checking Steering Wheel Play
Place wheels in straight ahead position and check steering wheel play.

Steering wheel play: 35 mm (1.38 inch) or less

If steering wheel play is not within specification, check the following for loose or worn components.
A. Steering column.
B. Front suspension and axle.
C. Steering gear.
