Multiple Junction Connector: Service and Repair

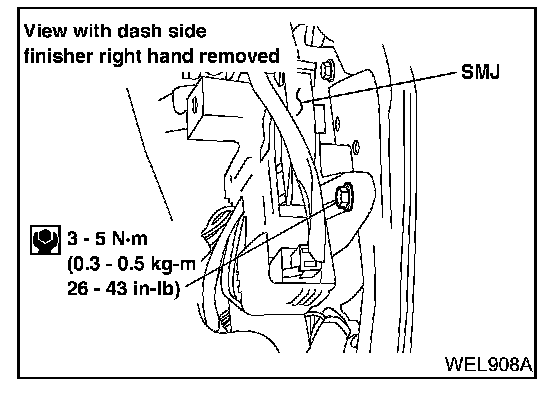

Super Multiple Junction (SMJ) / Installation
Securely fit and lock SMJ connectors. Tighten harness bracket bolt to specified torque.

Tightening Torque: 3 - 5 N.m (0.3 - 0.5 kg-m, 26 - 43 in-lb)
