Alignment

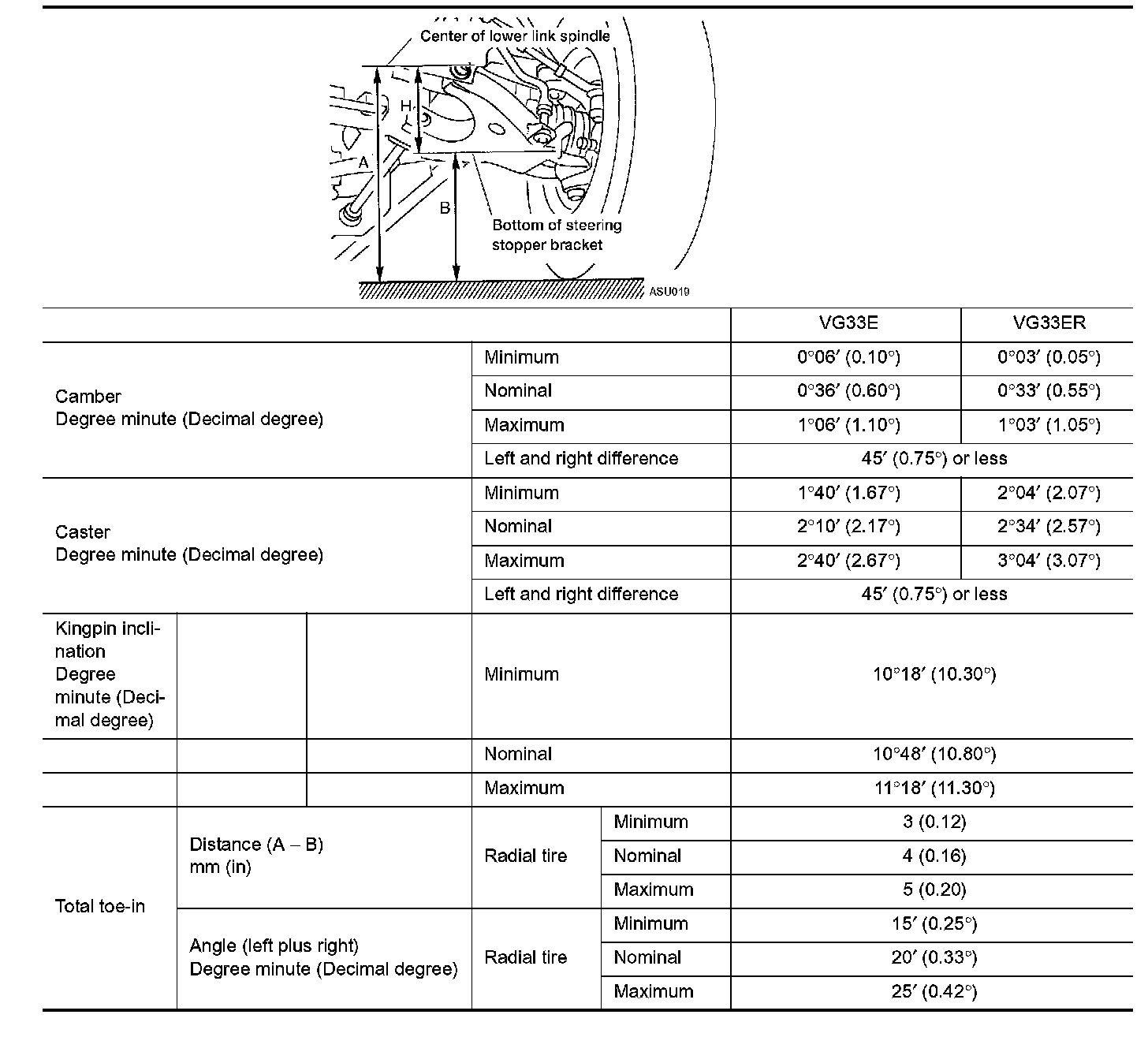

FRONT SUSPENSION - Wheel Alignment (Unladen) [4WD 3.3L VG33E & VG33ER]:

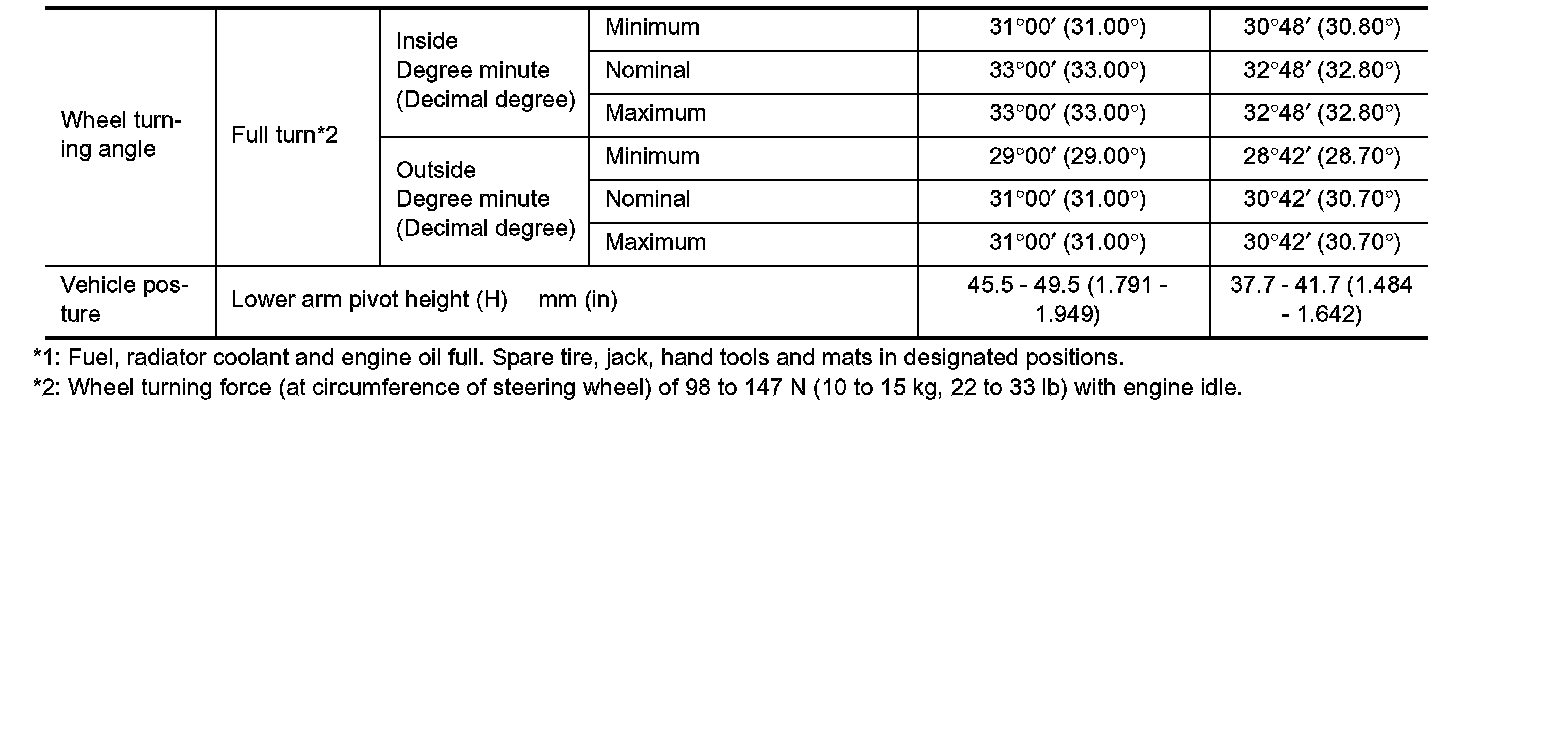

FRONT SUSPENSION - Wheel Alignment (Unladen) [4WD 3.3L VG33E & VG33ER] cont......:
