Nissan-Datsun Truck
>>
2002
>>
Frontier XE Crew Cab 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Transmission and Drivetrain
Transmission and Drivetrain

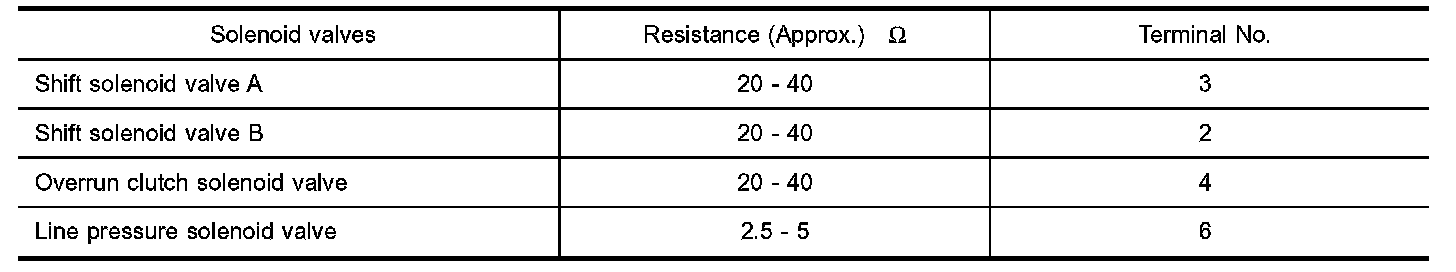

Solenoid Valves / 1 Of 2:
Solenoid Valves / 2 Of 2:

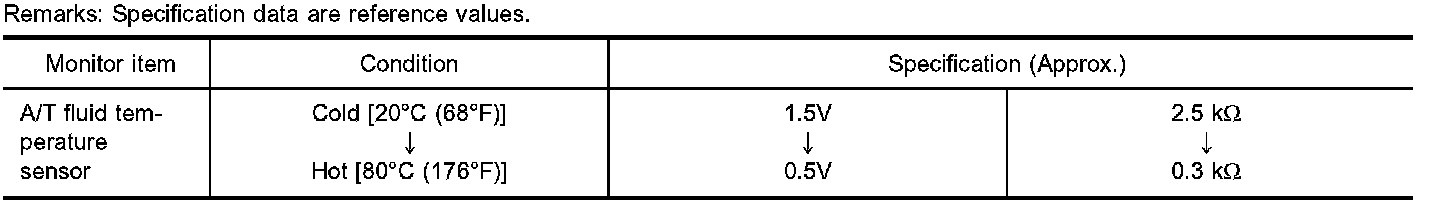

A/T Fluid Temperature Sensor:

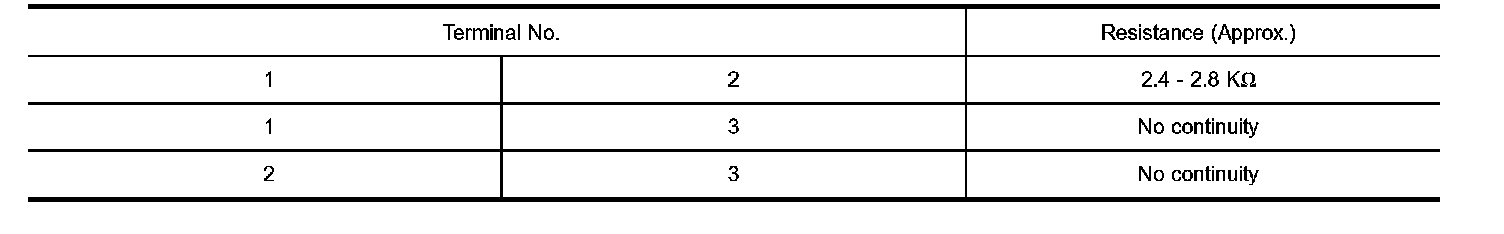

Turbine Revolution Sensor:

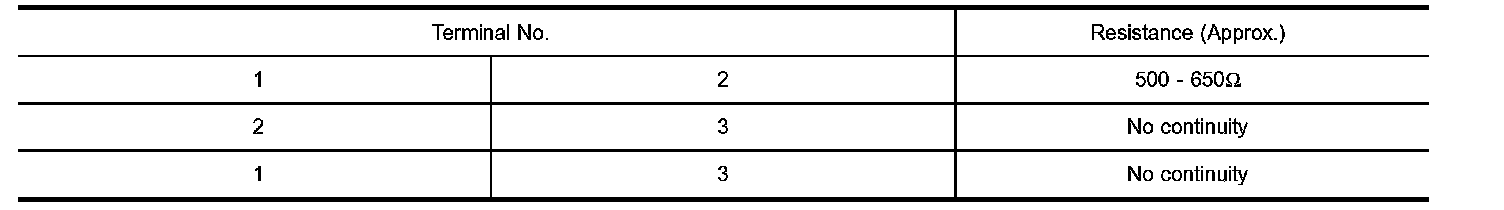

Revolution Sensor:

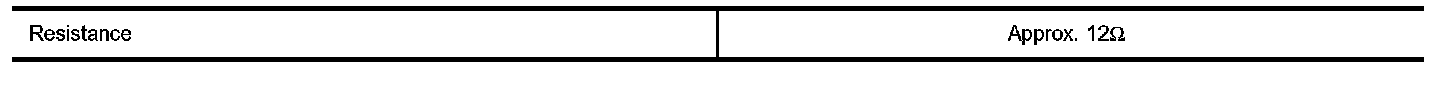

Dropping Resistor:
