Vehicle Speed Sensor Signal: Testing and Inspection

VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.

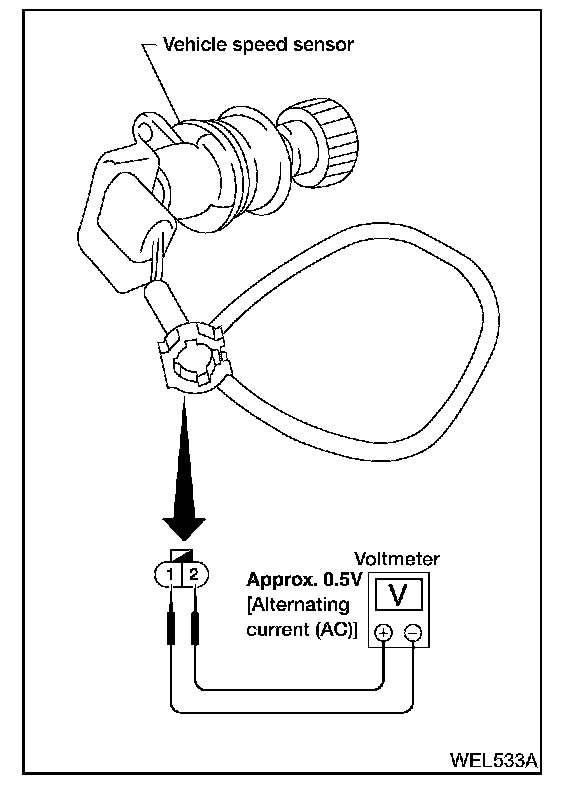

2. Turn vehicle speed sensor pinion quickly and measure voltage across 1 and 2.
