SRS Warning Lamp Operation Check

SRS Operation Check / Without Scan Tool









DIAGNOSTIC PROCEDURE 1

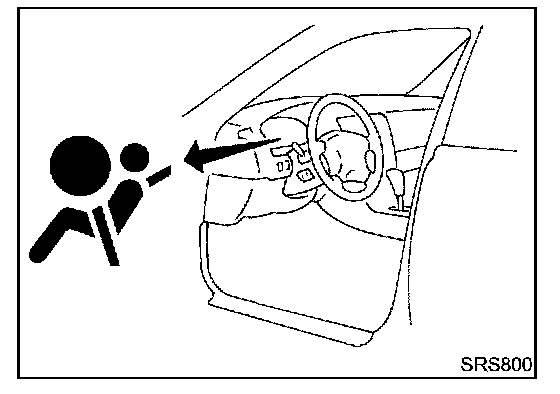

Checking Air Bag Operation by Using "AIR BAG" Warning Lamp - User Mode
1. After turning ignition switch from "OFF" to "ON" warning lamp operates.

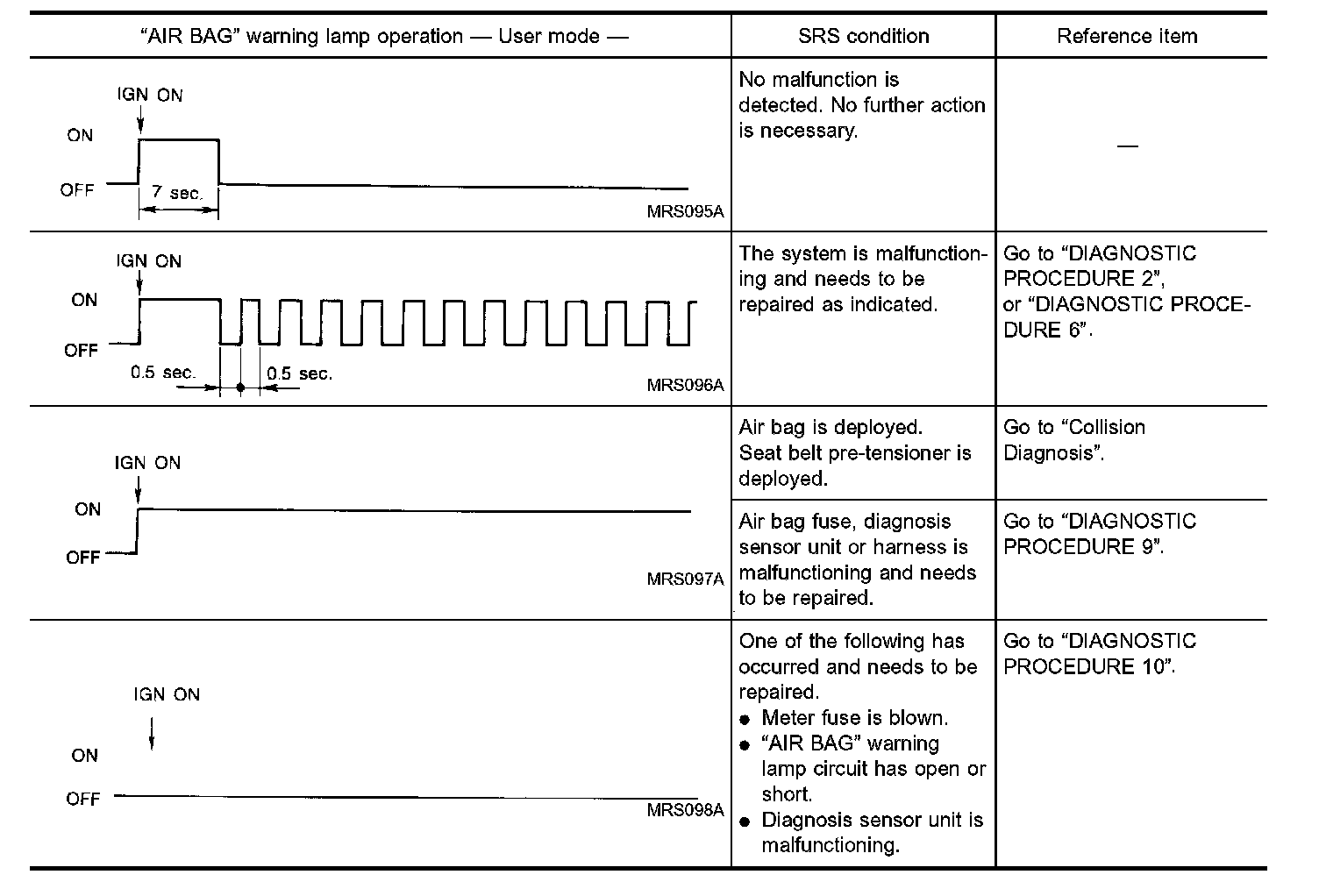

2. Compare "AIR BAG" warning lamp operation to the chart.
