Diagnostic Procedure 10
Diagnostic Procedure 10
Diagnostic Procedure 10
"Air Bag" Warning Lamp Does Not Turn On

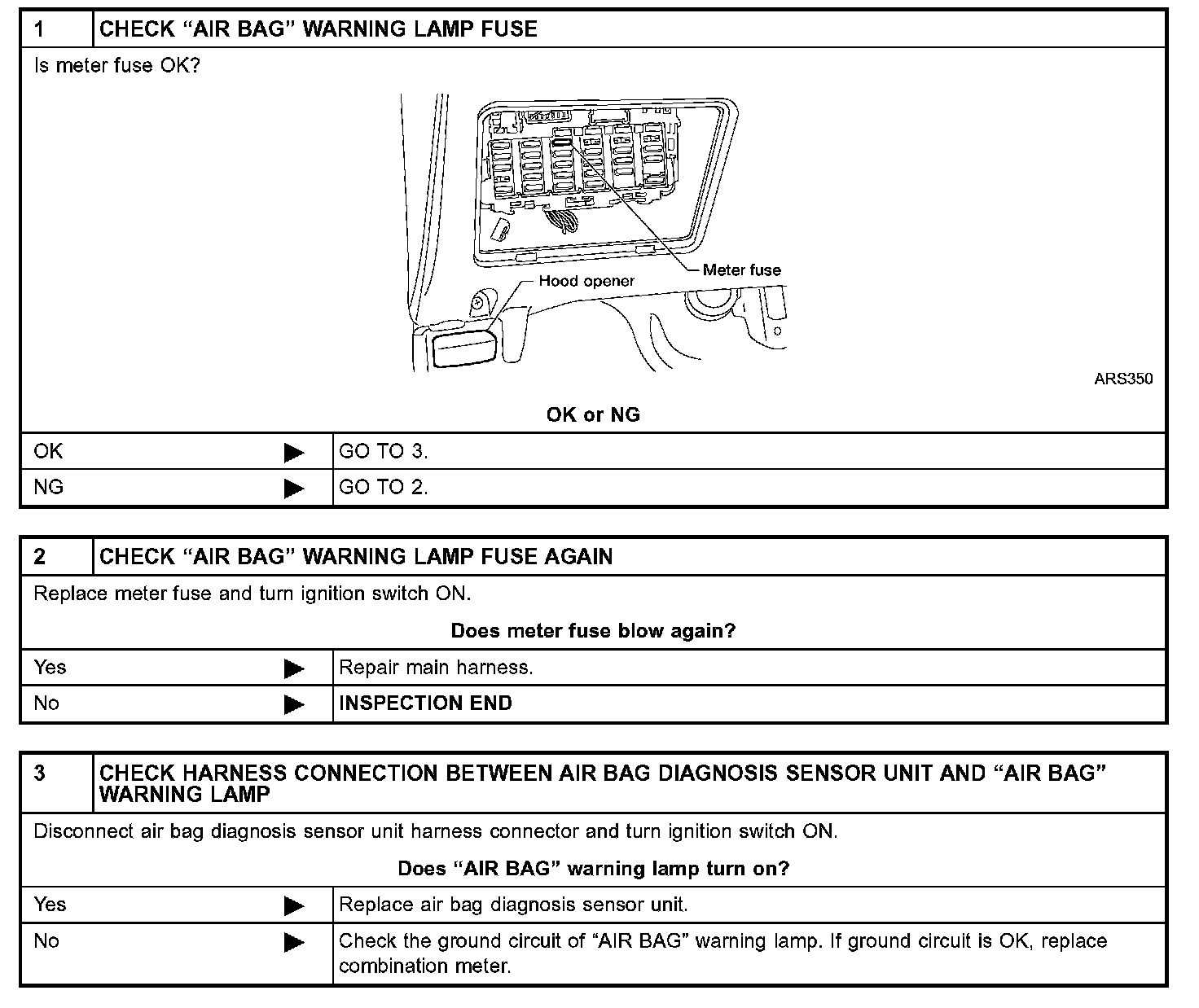

Diagnostic Procedure 10 ("AIR BAG" Warning Lamp Does Not Turn On) Step 1 - 3:
