Large Shock- N->R Position

5. Large Shock. N -> R Position

SYMPTOM: There is large shock when changing from N to R position.





1 of 4

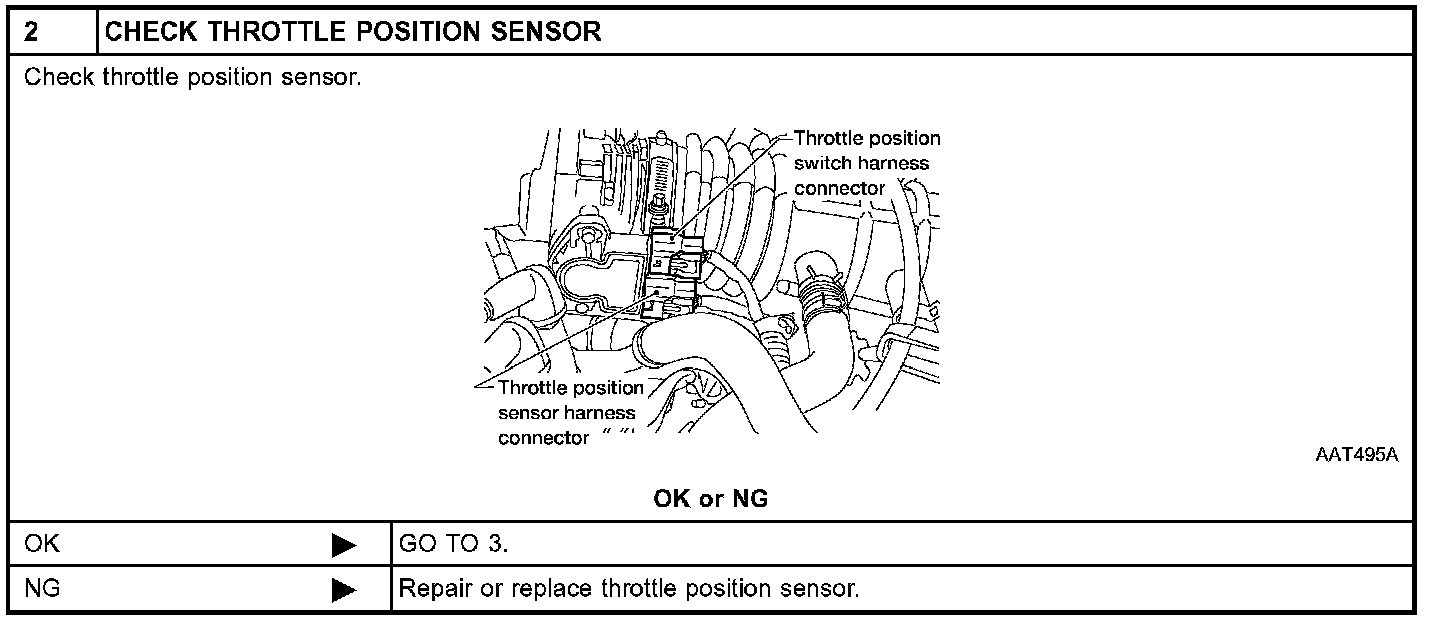

2 of 4

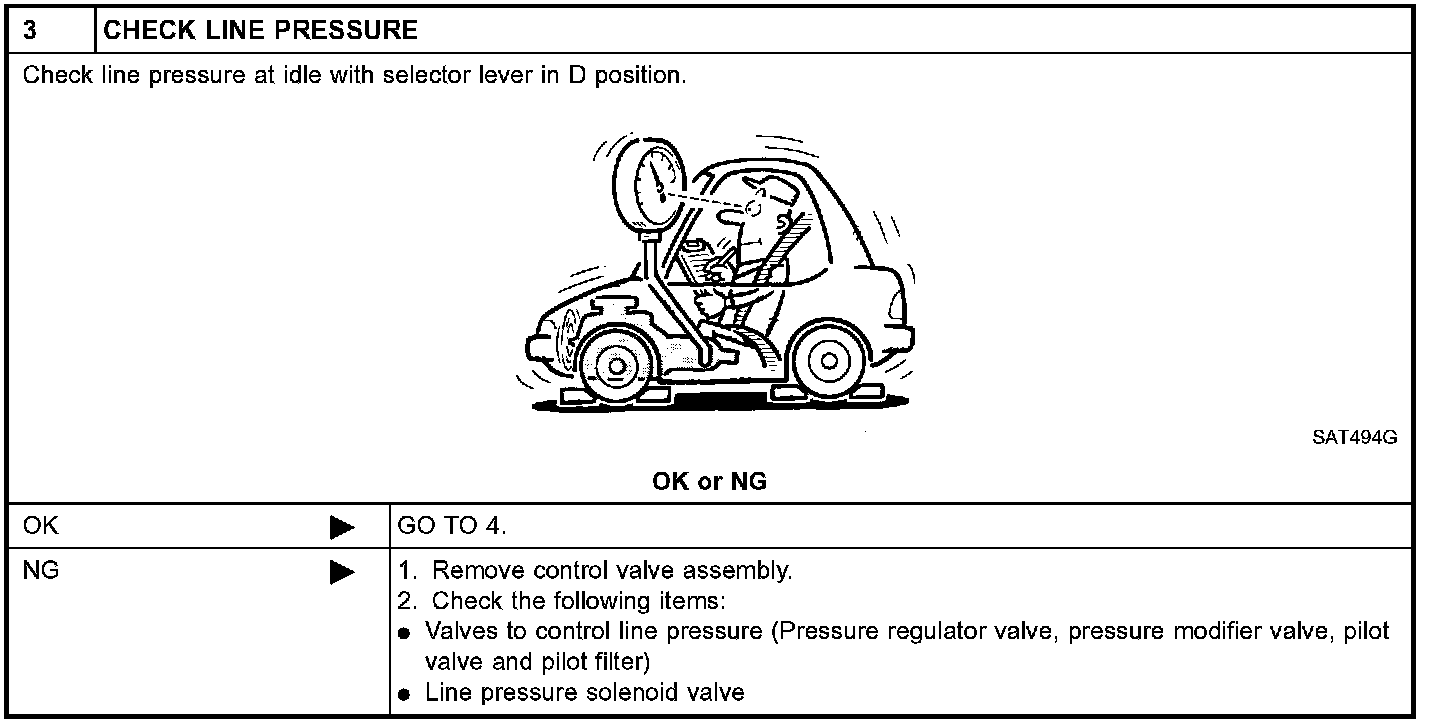

3 of 4

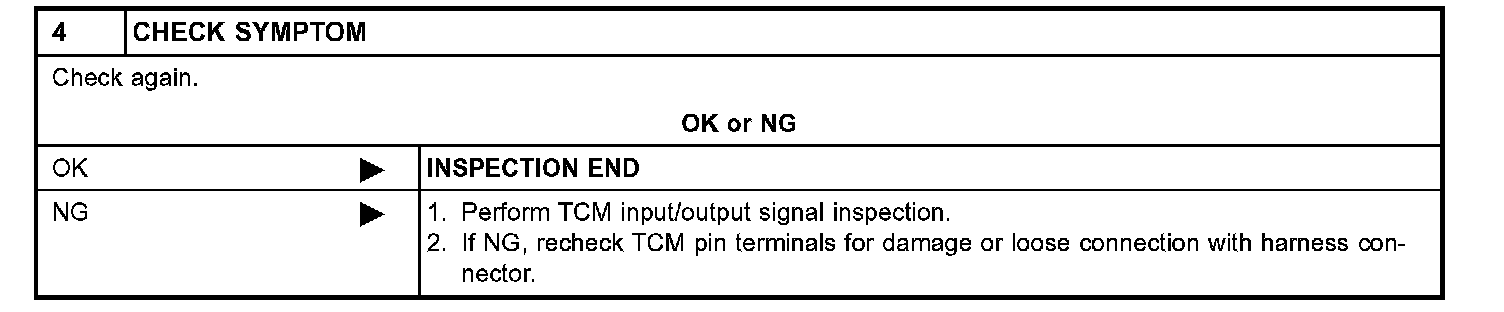

4 of 4
