Engine Speed Does Not Return to Idle

15. Engine Speed Does Not Return To Idle (Light Braking D4 -> D3)

SYMPTOM:
- Engine speed does not smoothly return to idle when A/T shifts from D4 to D3.
- Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
- Vehicle does not decelerate by engine brake when shifting A/T from D to 2 position.

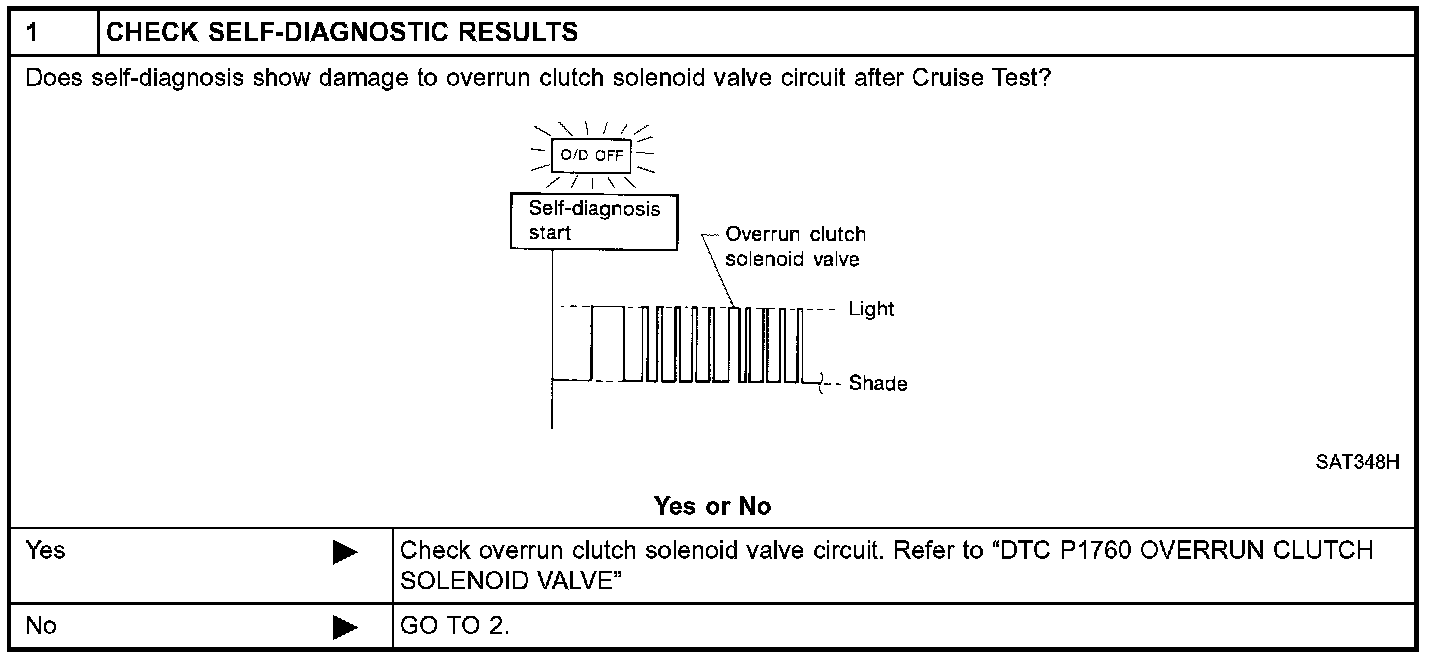

1 of 6

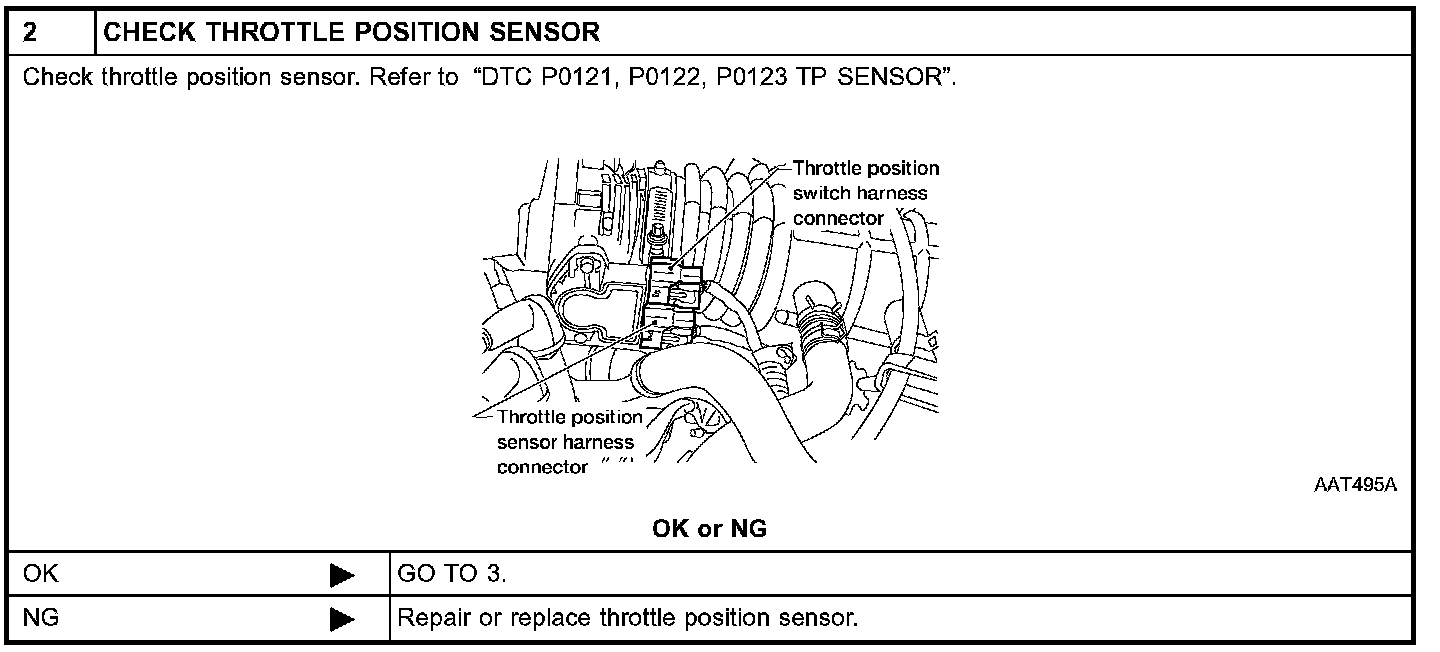

2 of 6

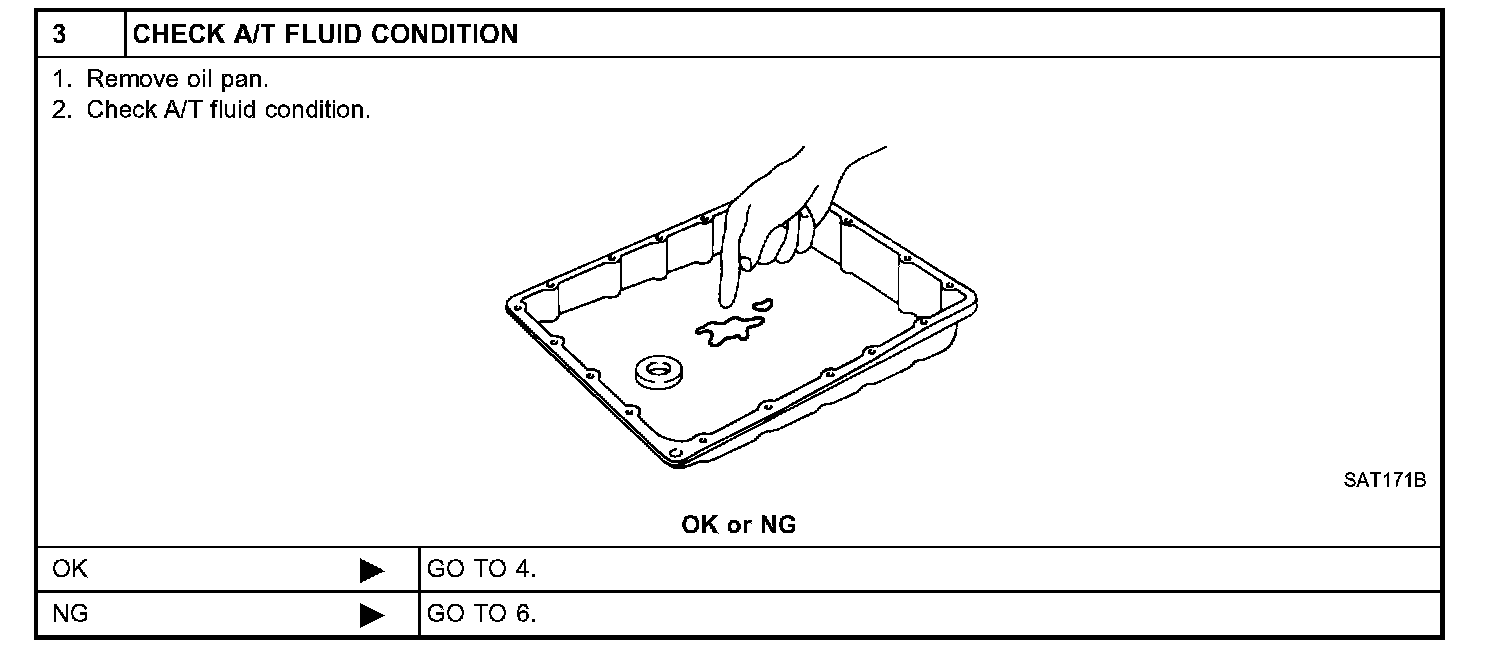

3 of 6

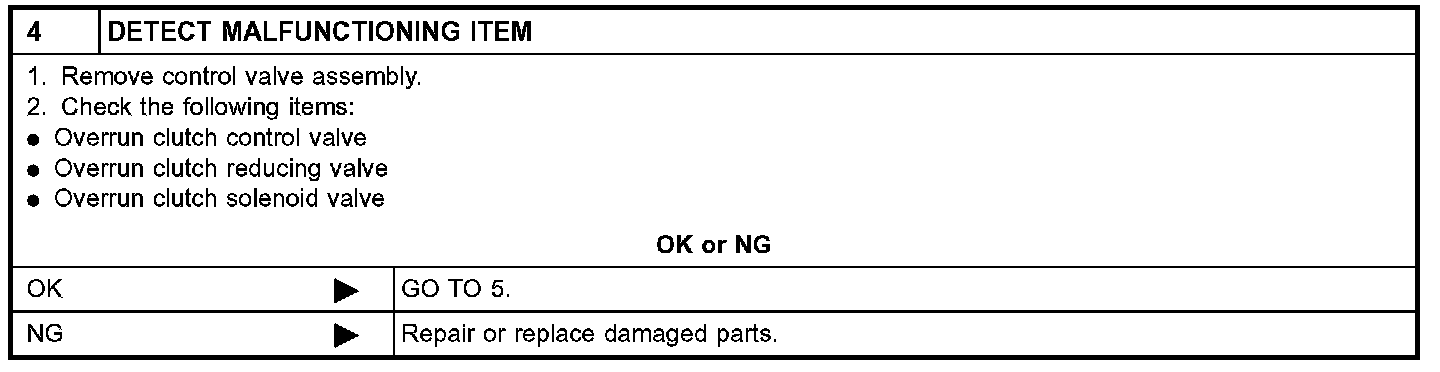

4 of 6

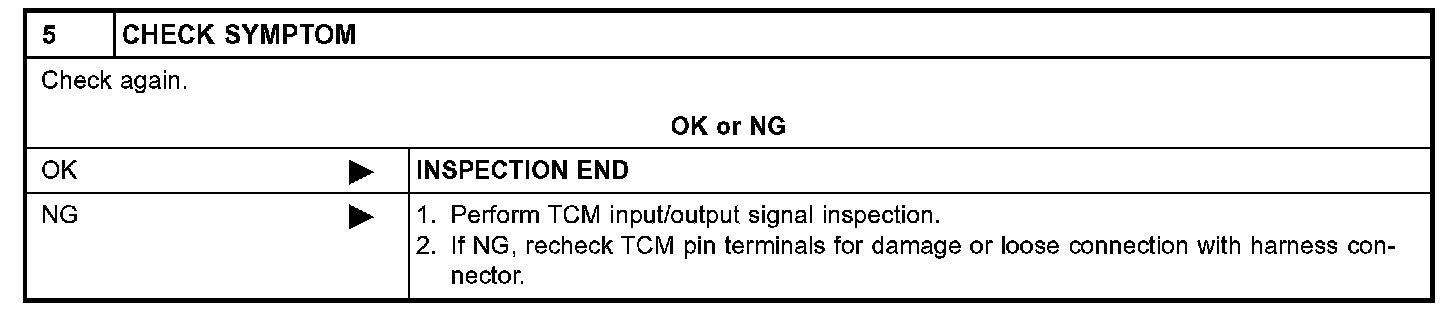

5 of 6

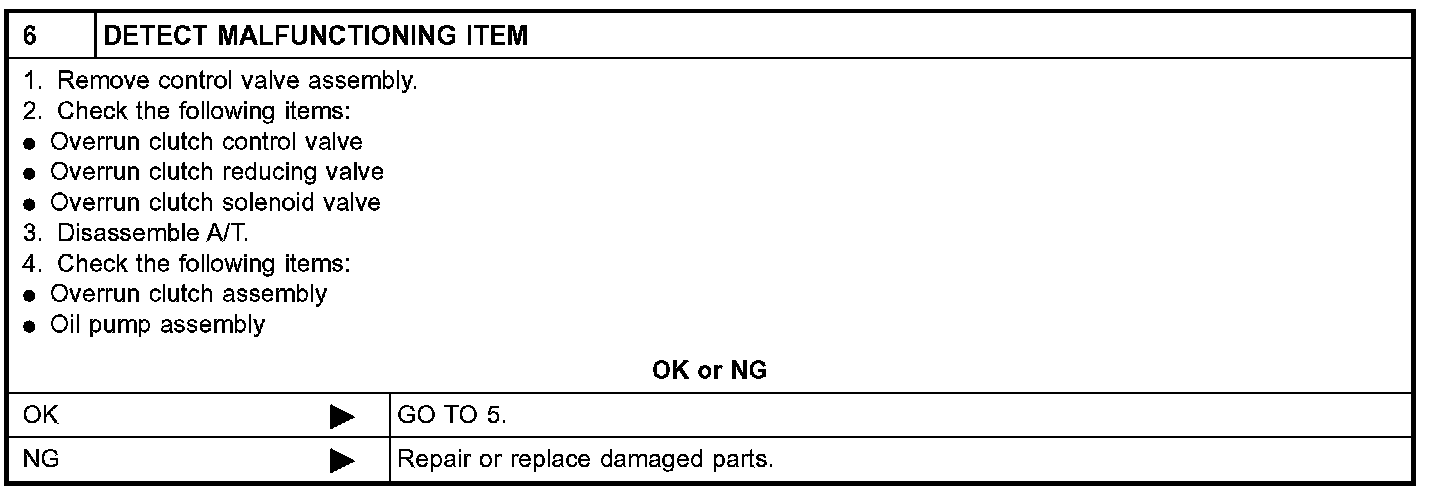

6 of 6
