Nissan-Datsun Truck
>>
2002
>>
Frontier XE Crew Cab 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Reading Diagnostic Trouble Codes
>>
Without Scan Tool
>>
O/D Off Indicator Lamp
O/D Off Indicator Lamp
TCM

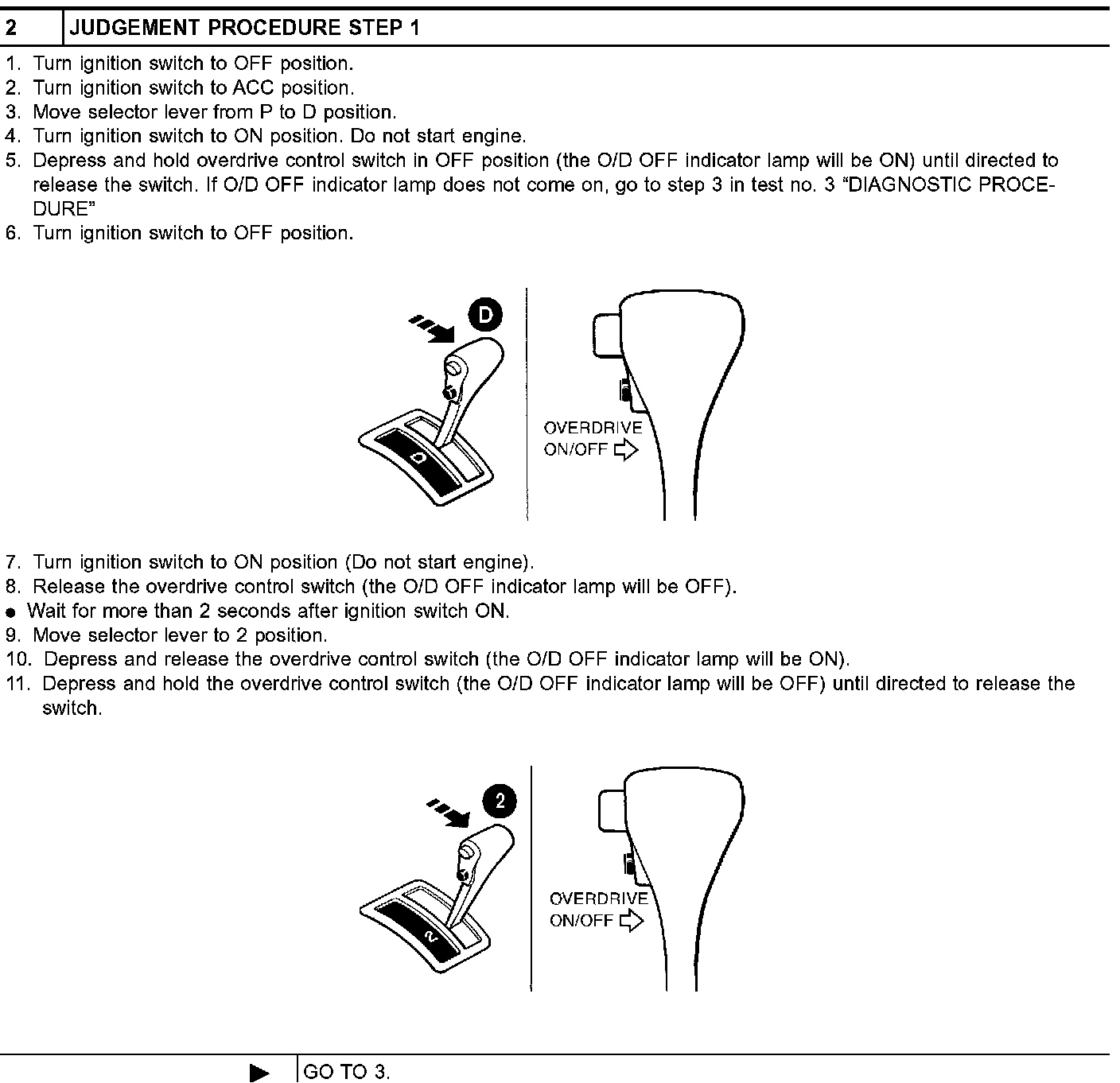

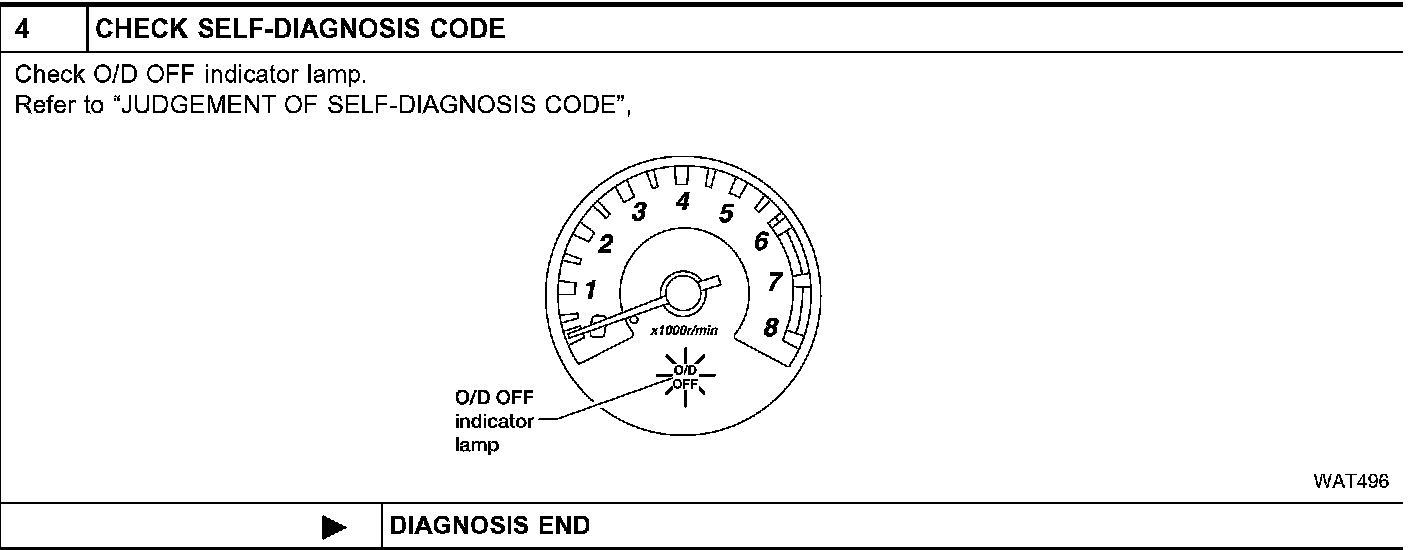

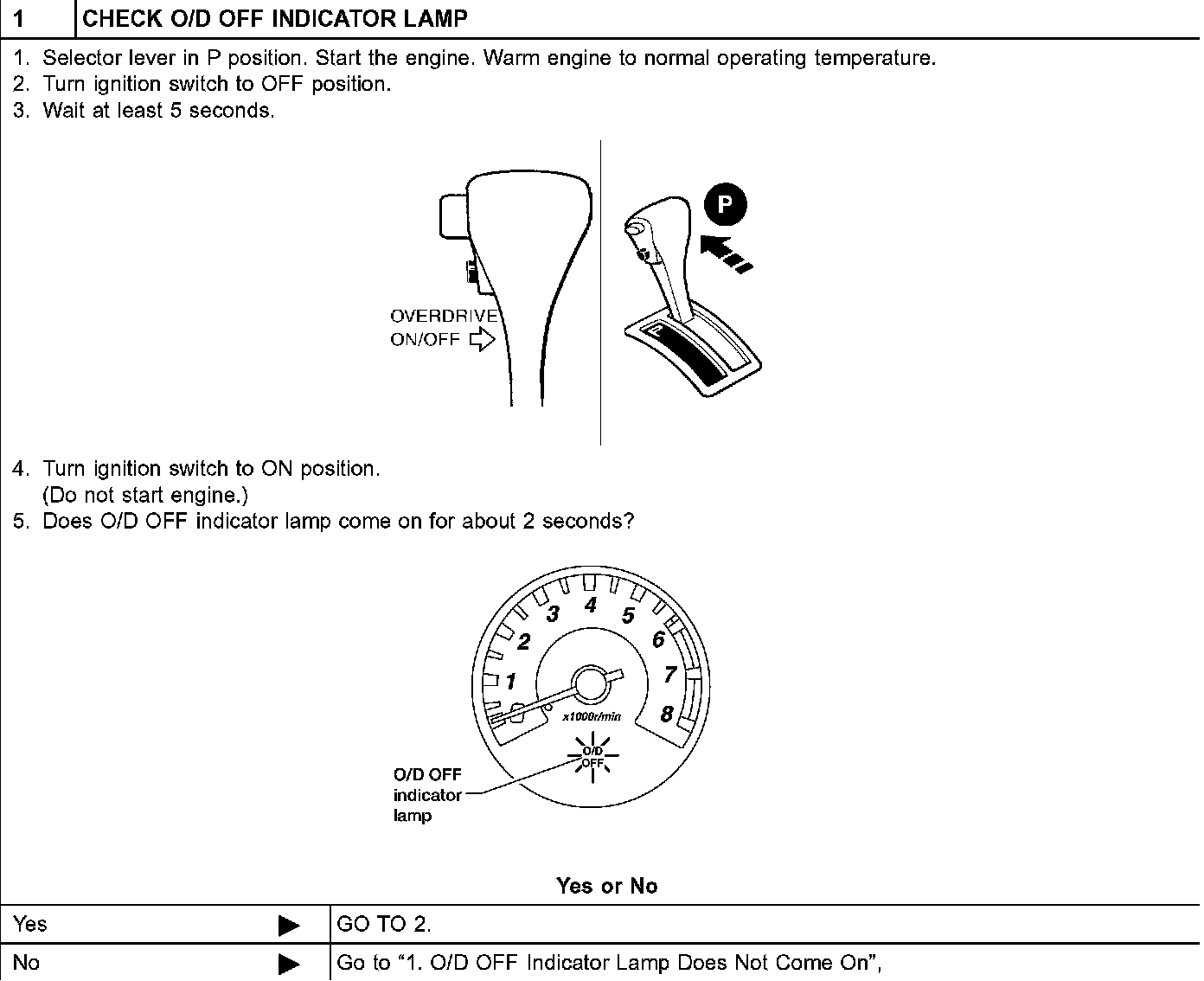

SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)

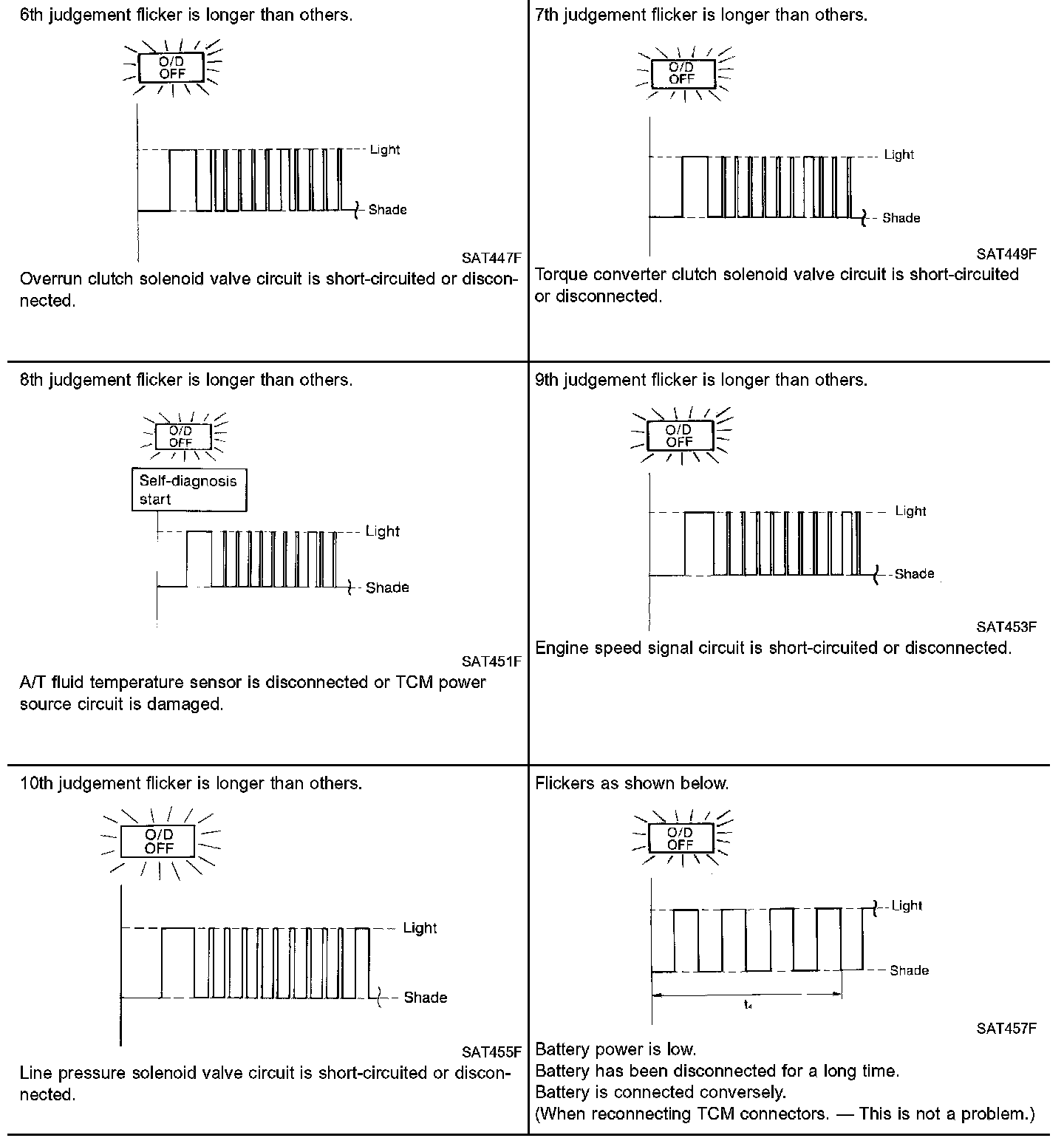

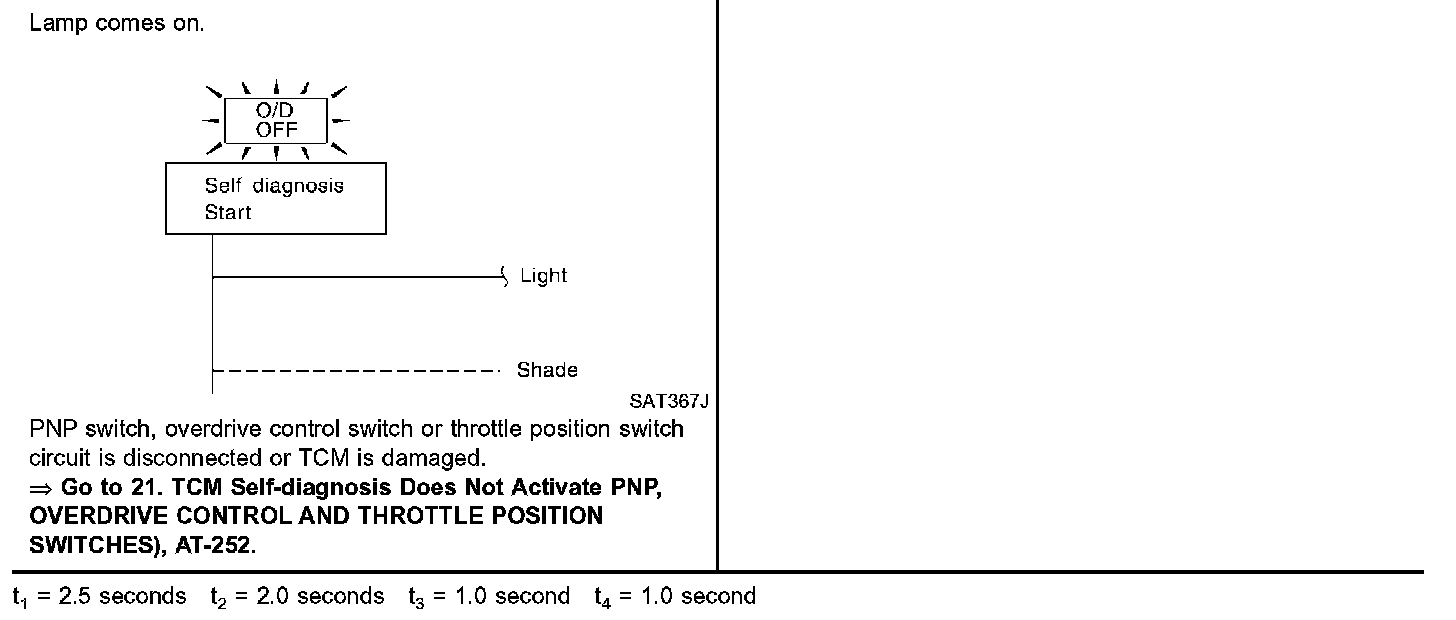

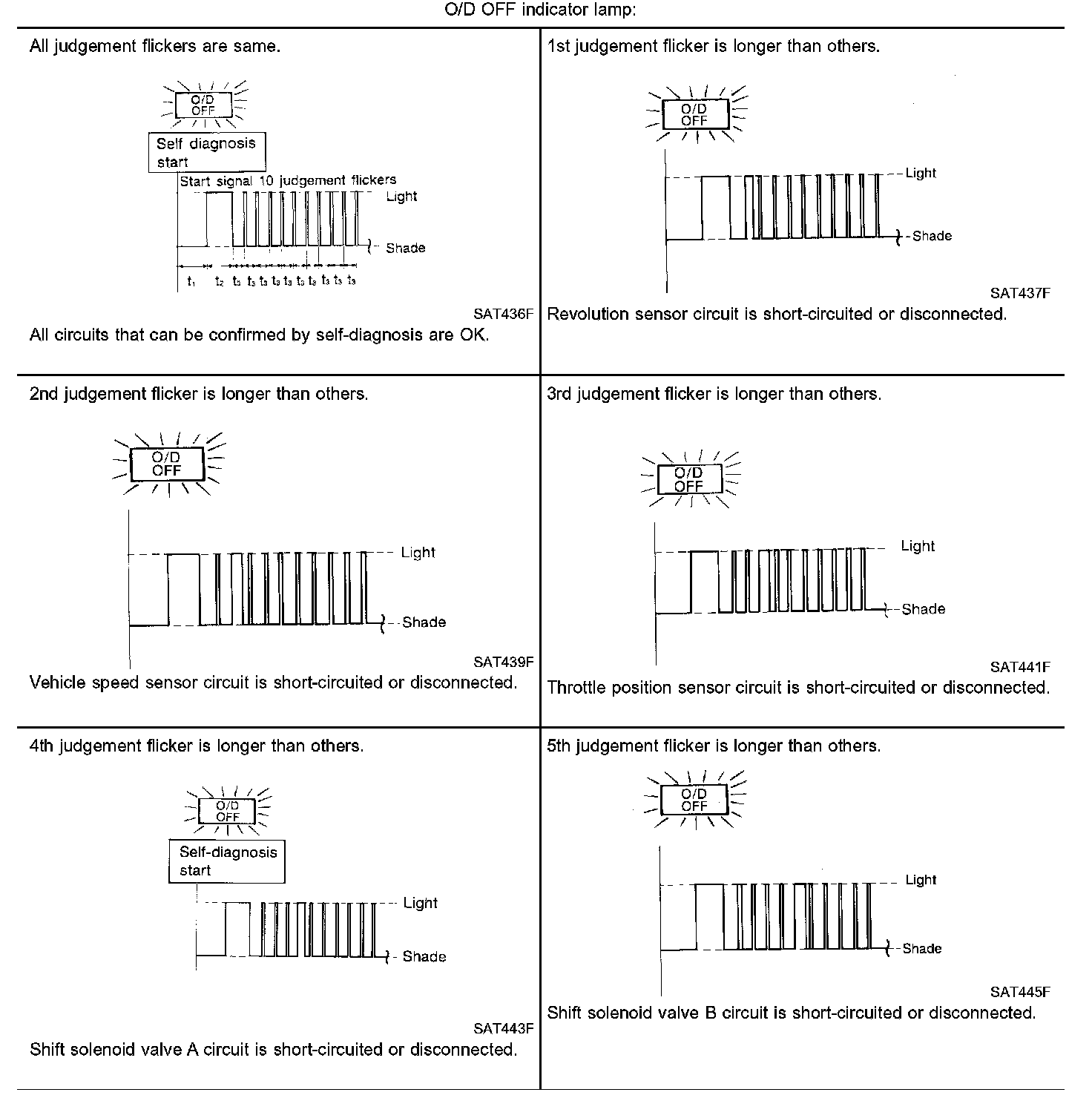

JUDGEMENT OF SELF-DIAGNOSIS CODE (VG33E ONLY)
