Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

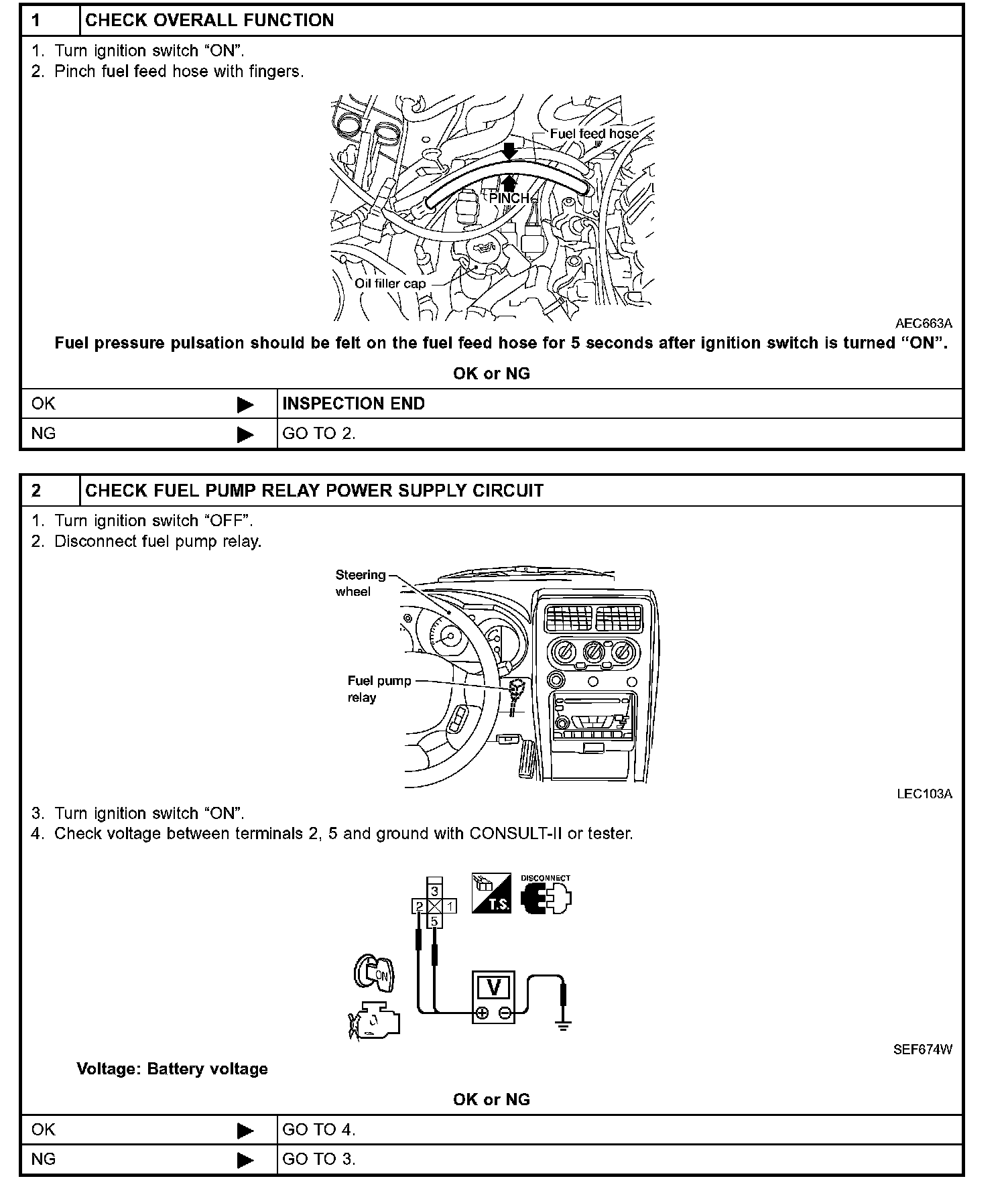

Step 1 - 2:

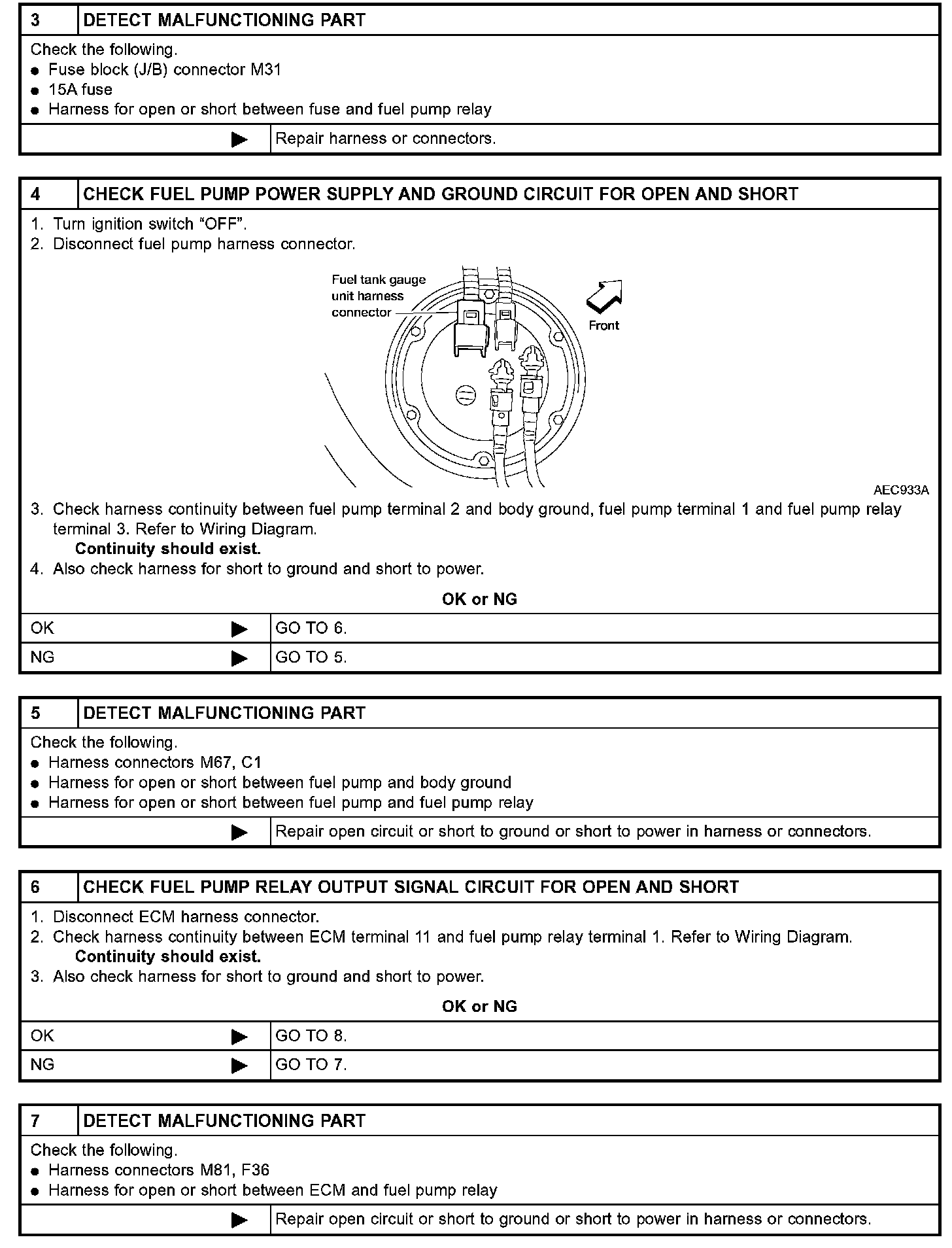

Step 3 - 7:



Step 8:

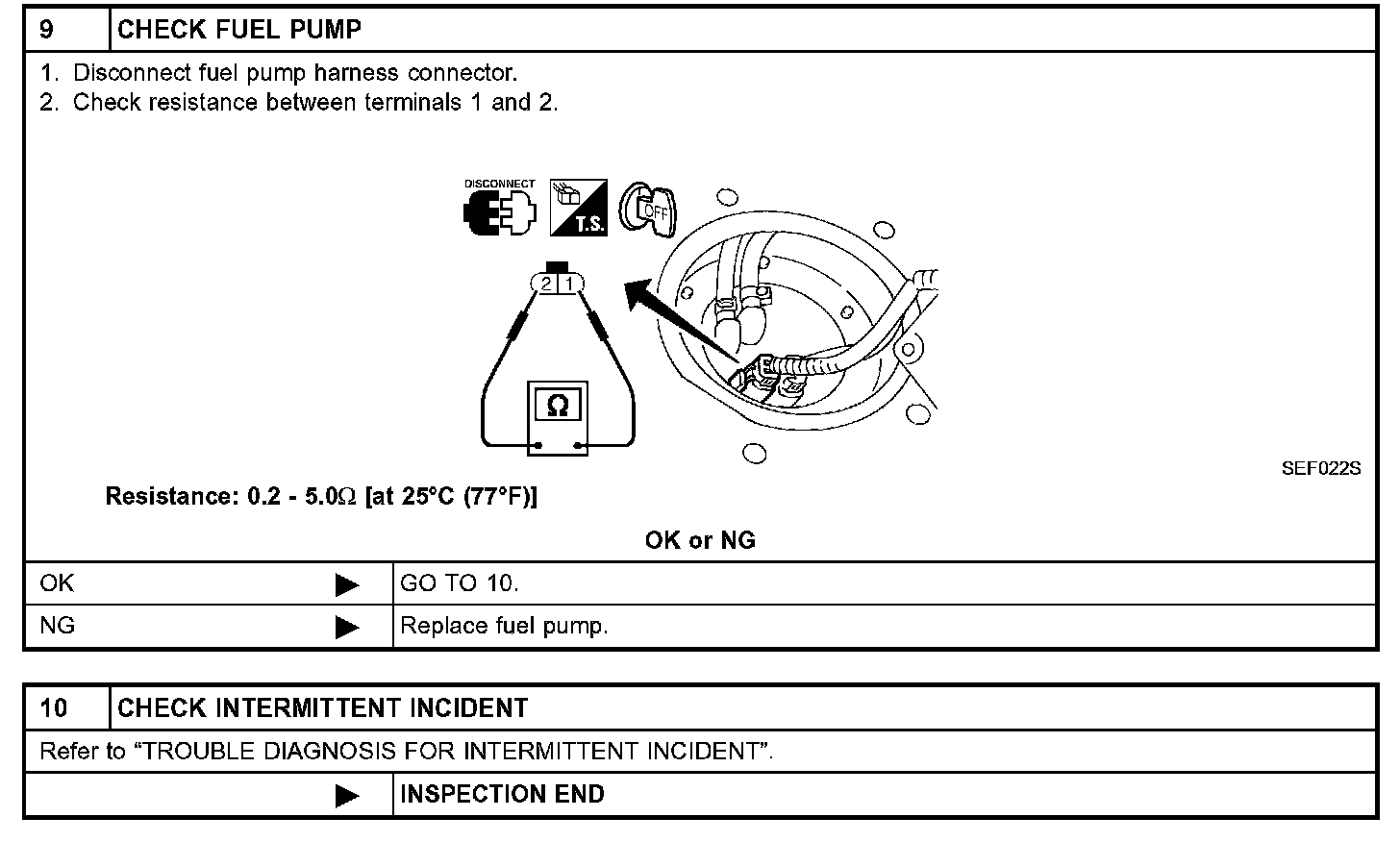

Step 9:
