Evaporative Emission Control Canister: Testing and Inspection

INSPECTION




EVAP Canister

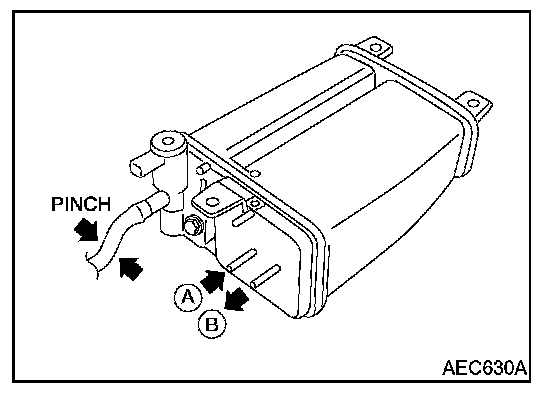

Check EVAP canister as follows:
1. Pinch the fresh air hose.
2. Blow air into port A and check that it flows freely out of port B.
