Symptom Related Diagnostic Procedures

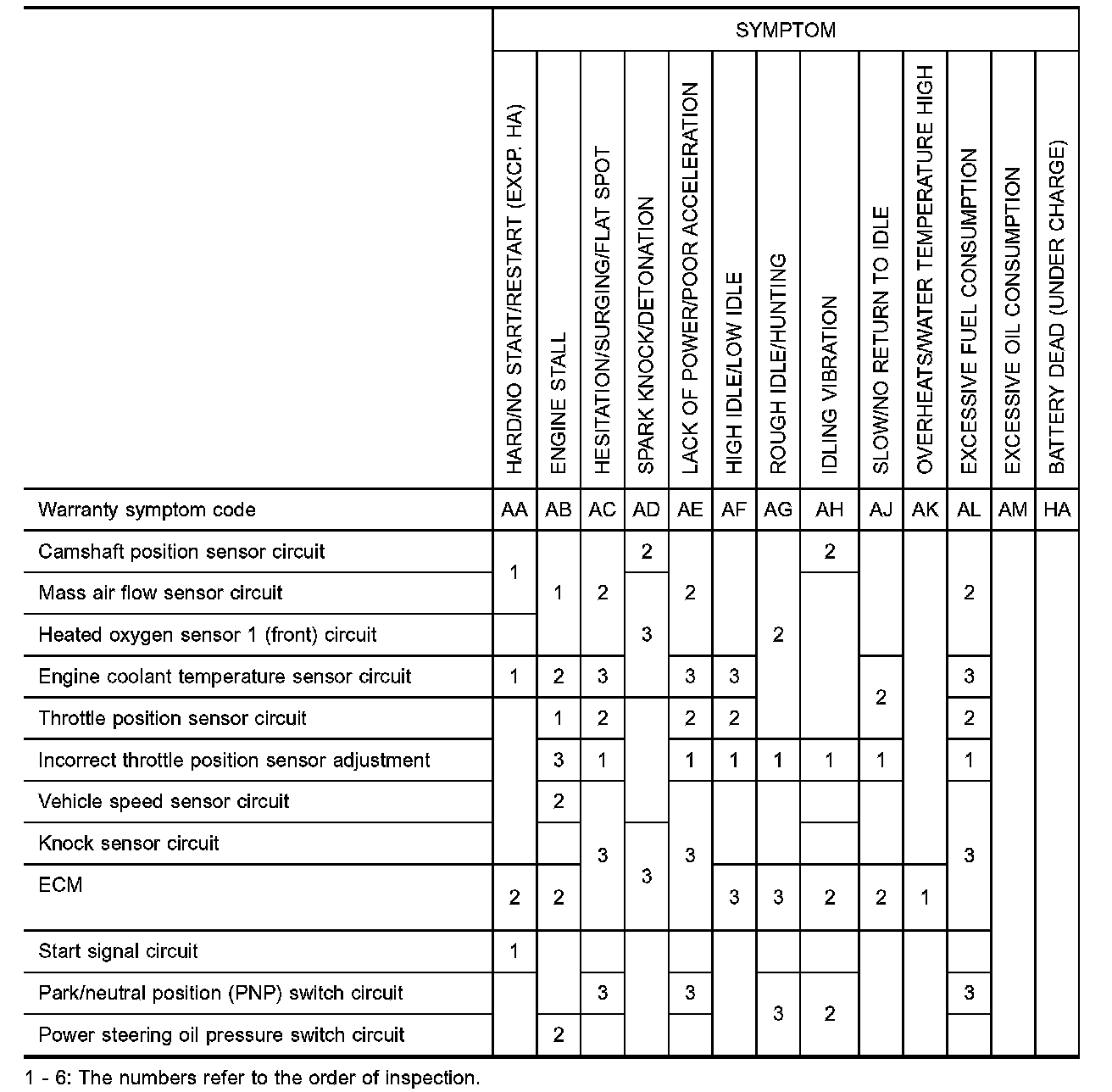

System - Basic Engine Control System Part 1:

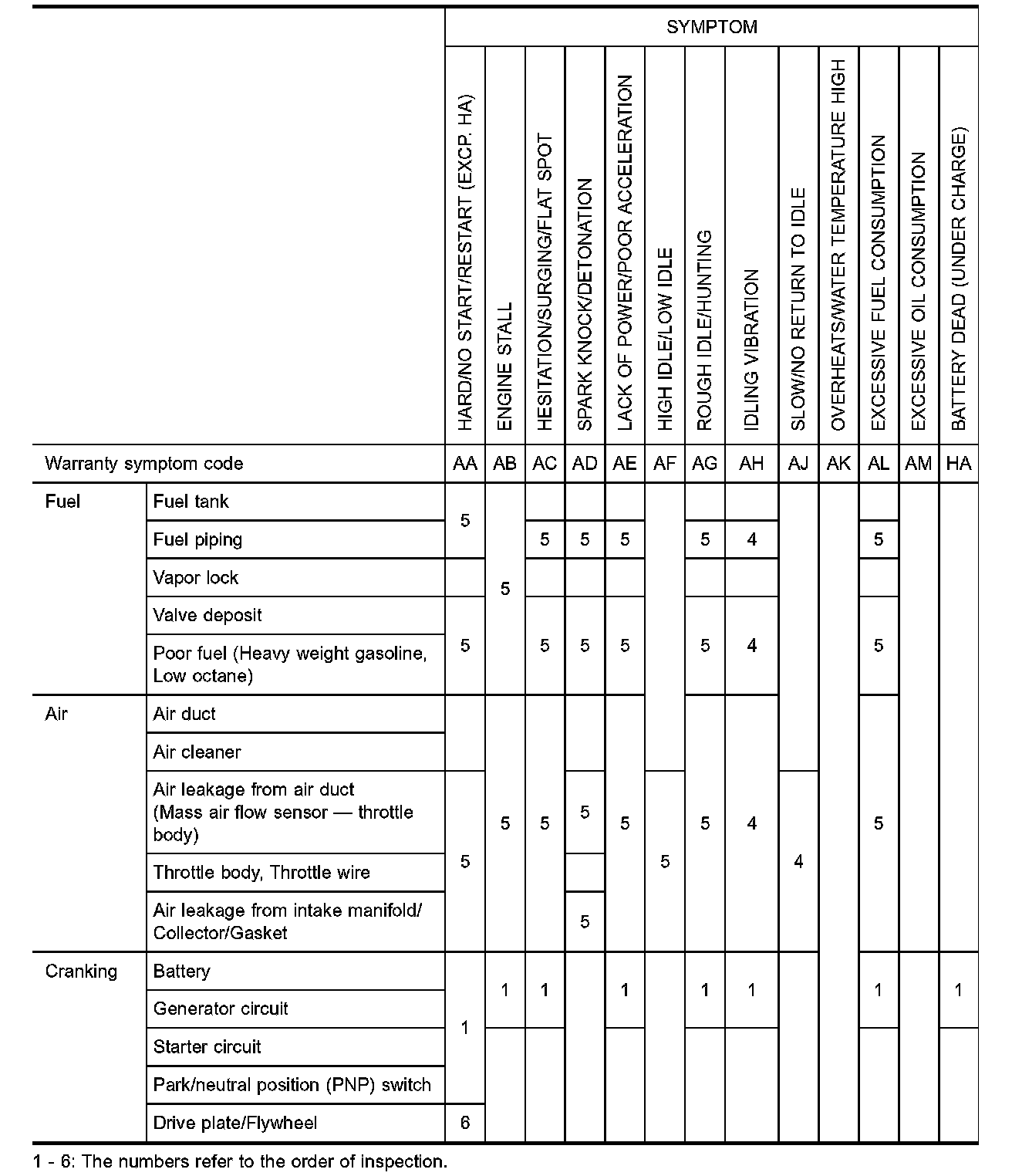

System - Basic Engine Control System Part 2:

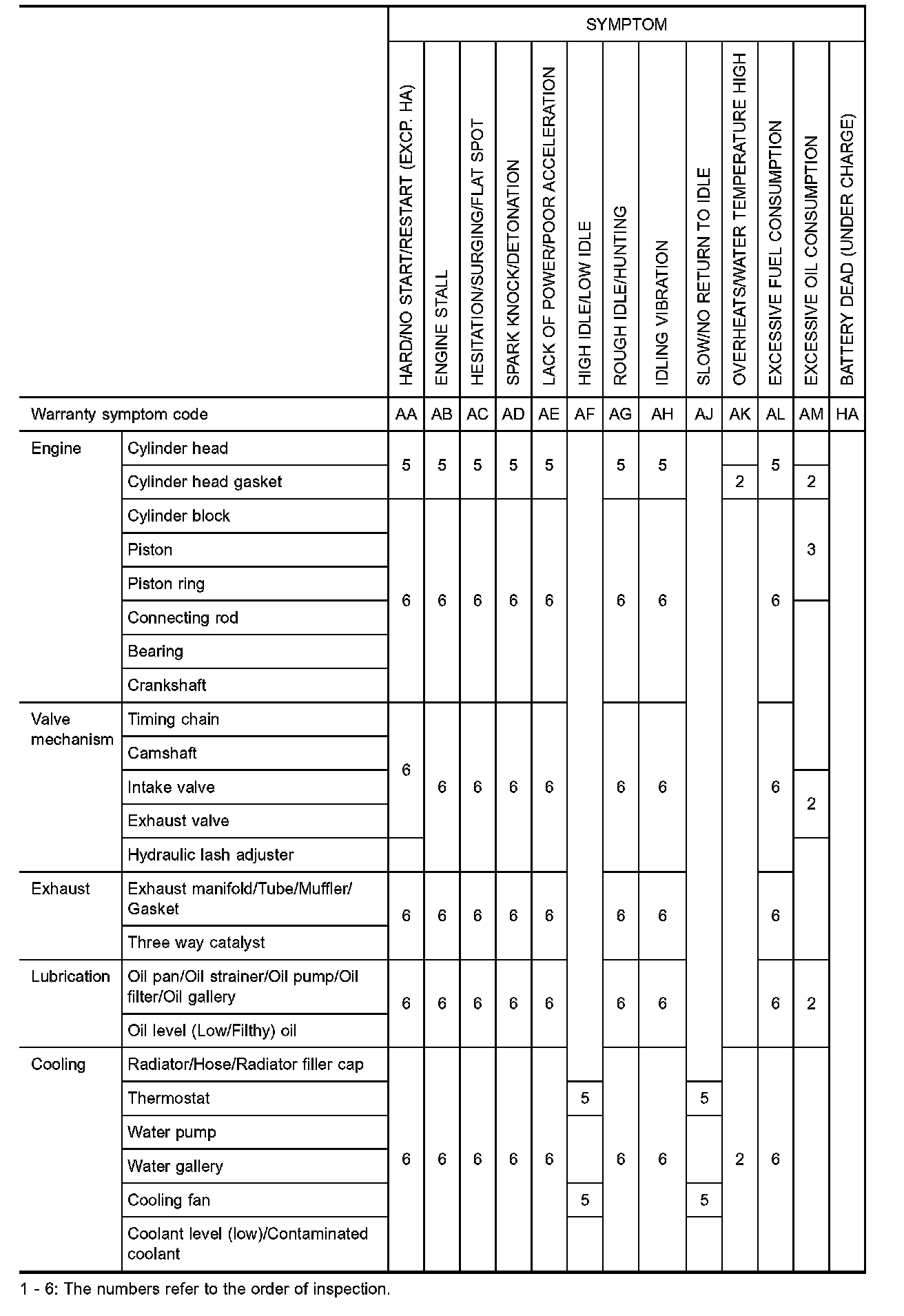

System - Engine Mechanical & Other Part 1:

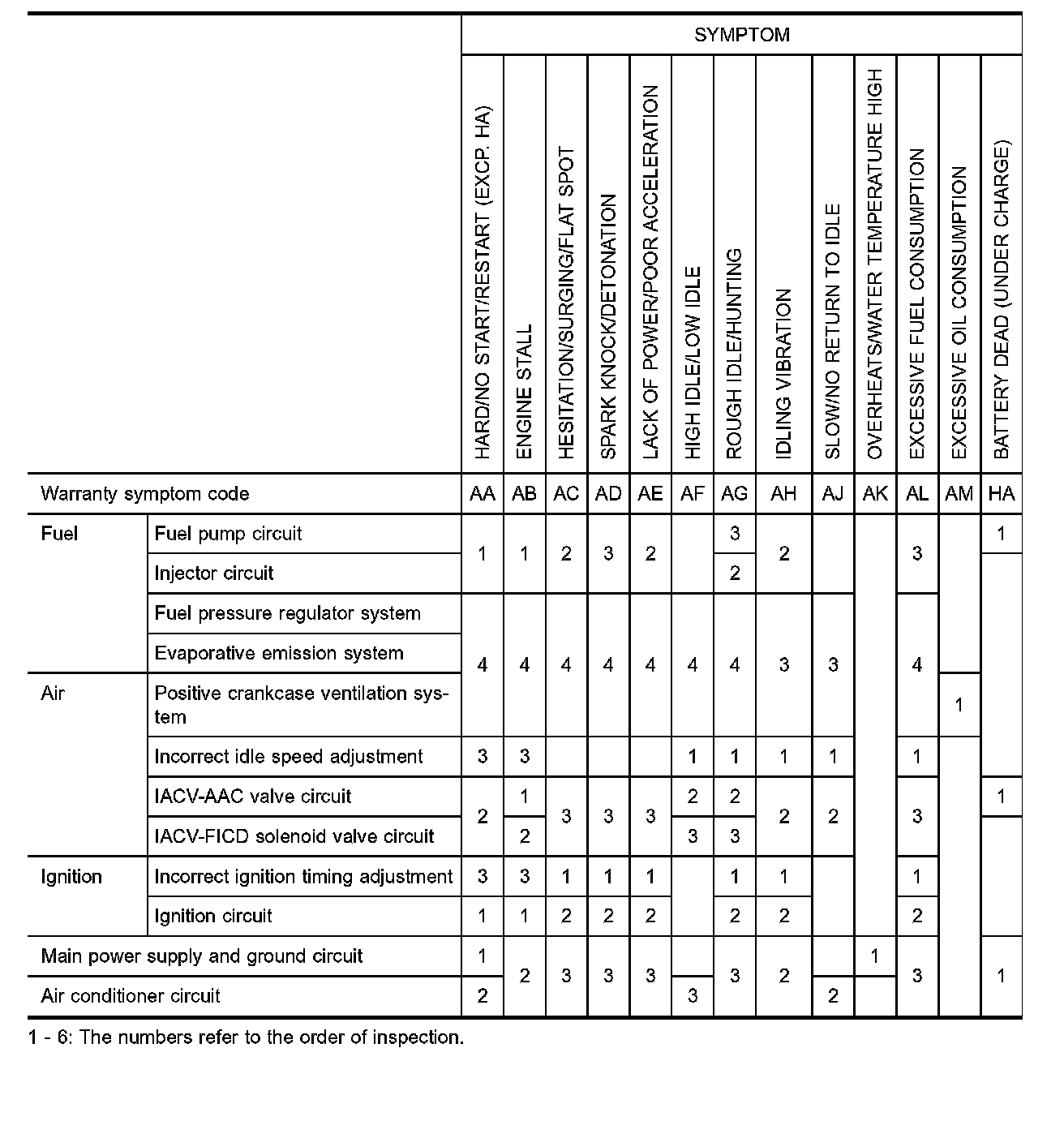

System - Basic Engine Control System Part 2:
