Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Testing and Inspection

Dome Lamp: Testing and Inspection

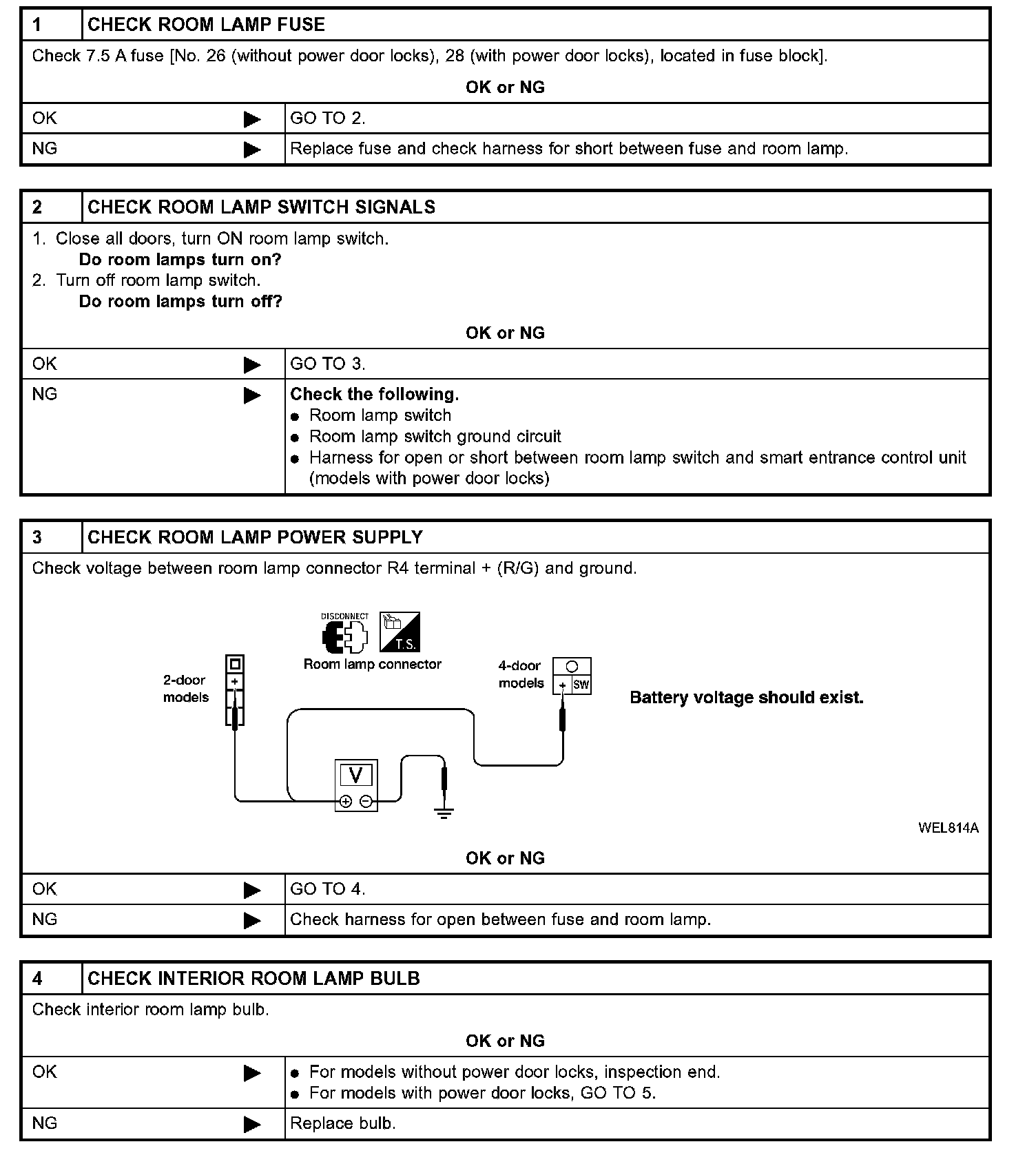

Step 1 - 4:

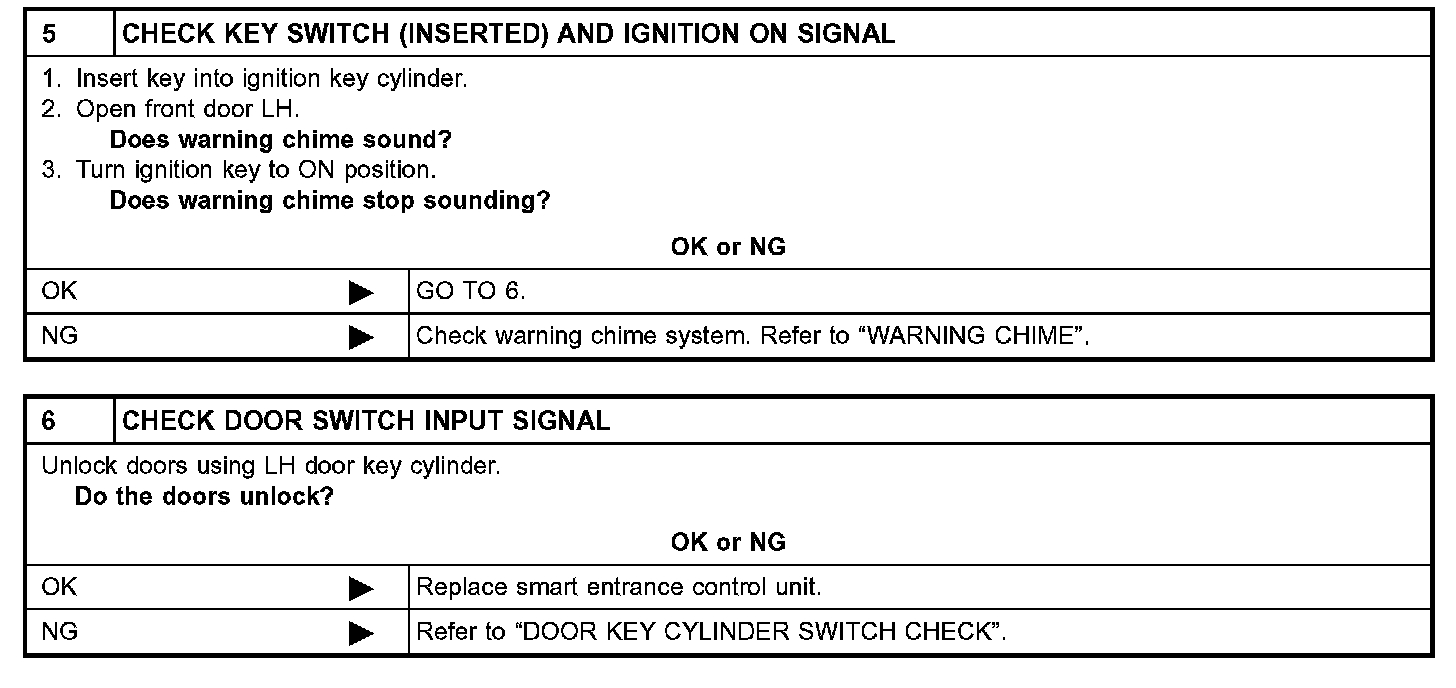

Step 5 - 6:




SYMPTOM: Room lamp does not turn on or off properly.
