Symptom Chart

Symptom Charts

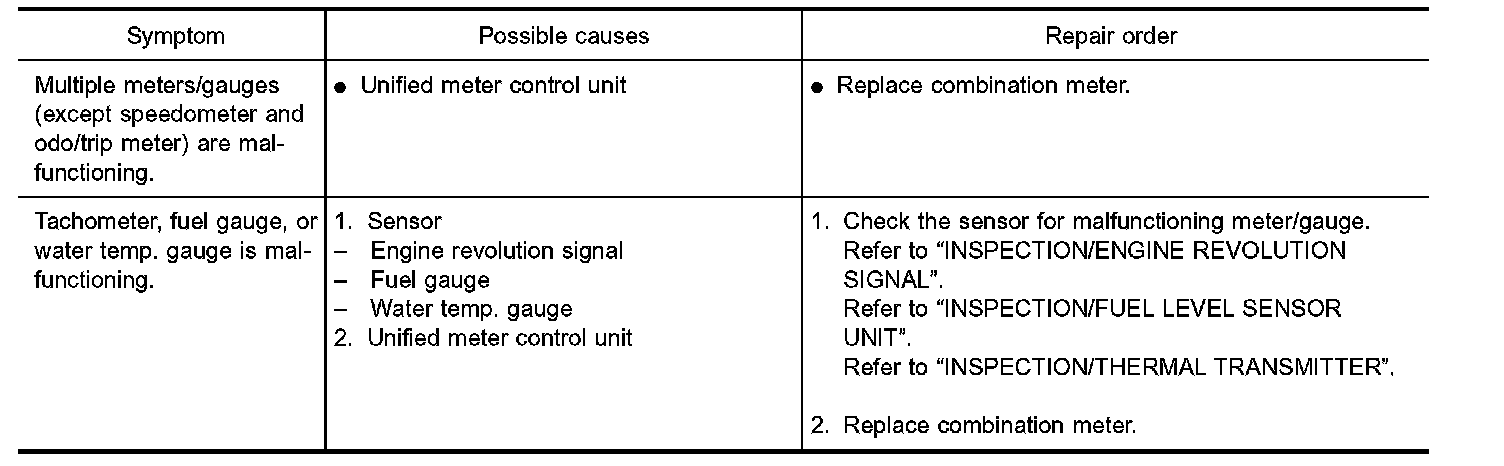

Symptom Chart Part 1:

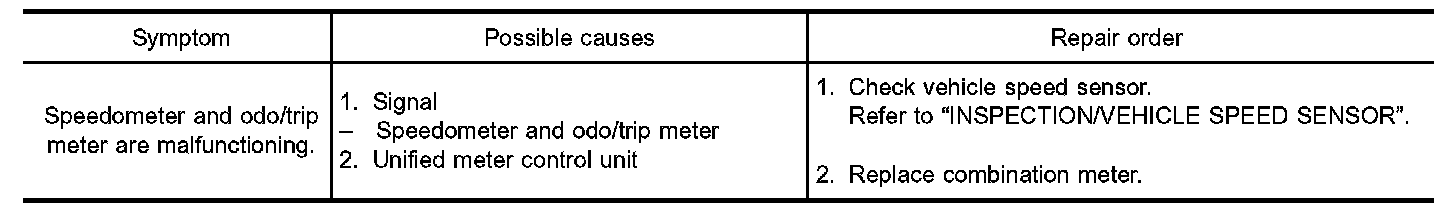

Symptom Chart Part 2:





Before starting trouble diagnoses above perform "PRELIMINARY CHECK".
[1][2]Initial Inspection (Preliminary Inspection)
