Air Bag Deactivation Indicator: Service and Repair

Passenger Air Bag Deactivation Switch Indicator

REMOVAL
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait for at least 3 minutes.

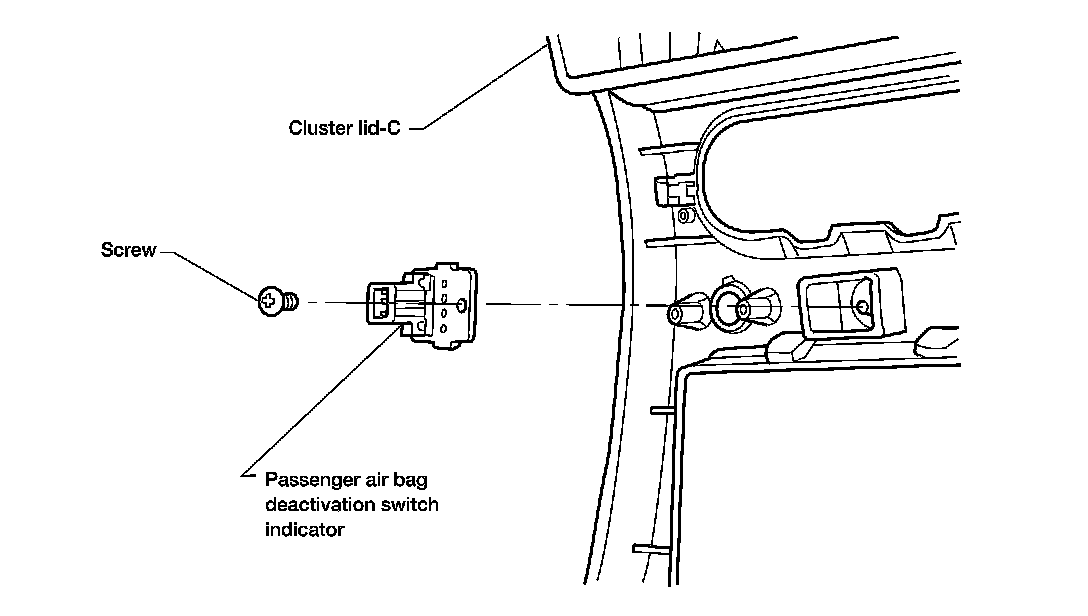

1. Remove cluster lid-C.
2. Remove one screw and remove passenger air bag deactivation switch indicator.

INSTALLATION

NOTE:
- To install, reverse removal procedure.
- After replacement, perform self-diagnosis for SRS. Refer to "SRS Operation Check".
