Magnet Clutch Circuit

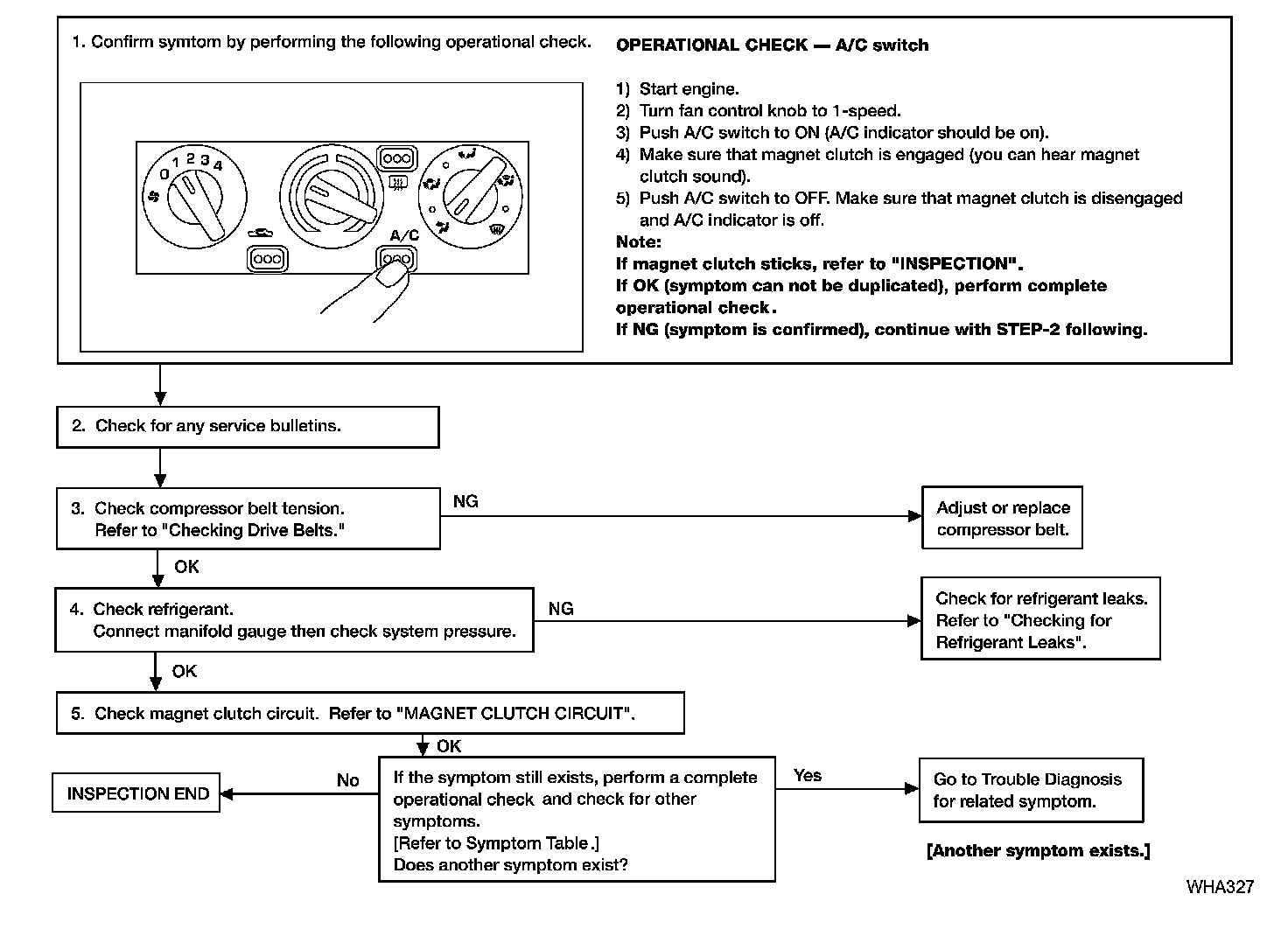

Inspection Flow:

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH

Symptom:
- Magnet clutch does not engage when A/C switch and fan switch are ON.

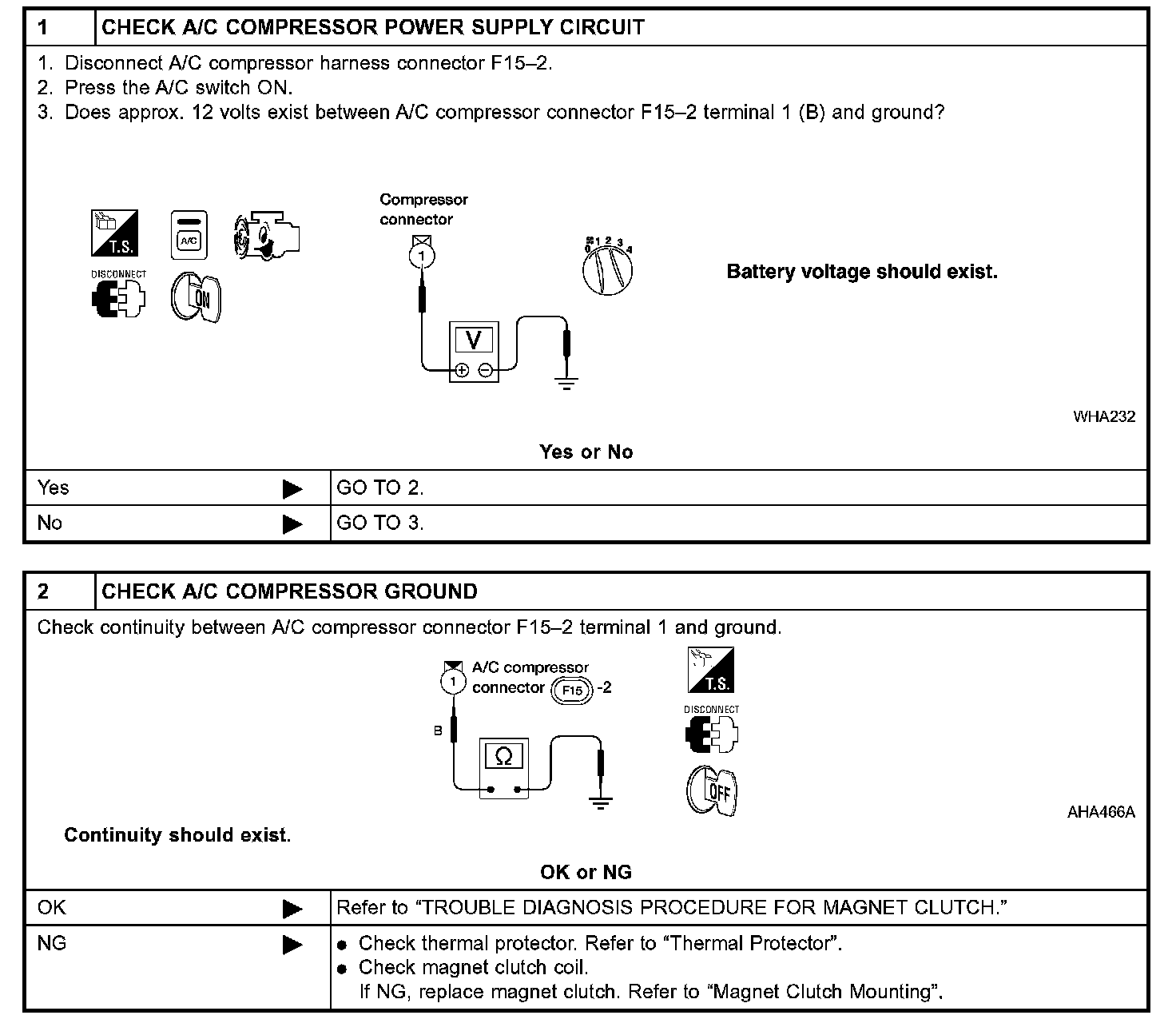

Step 1 - 2:

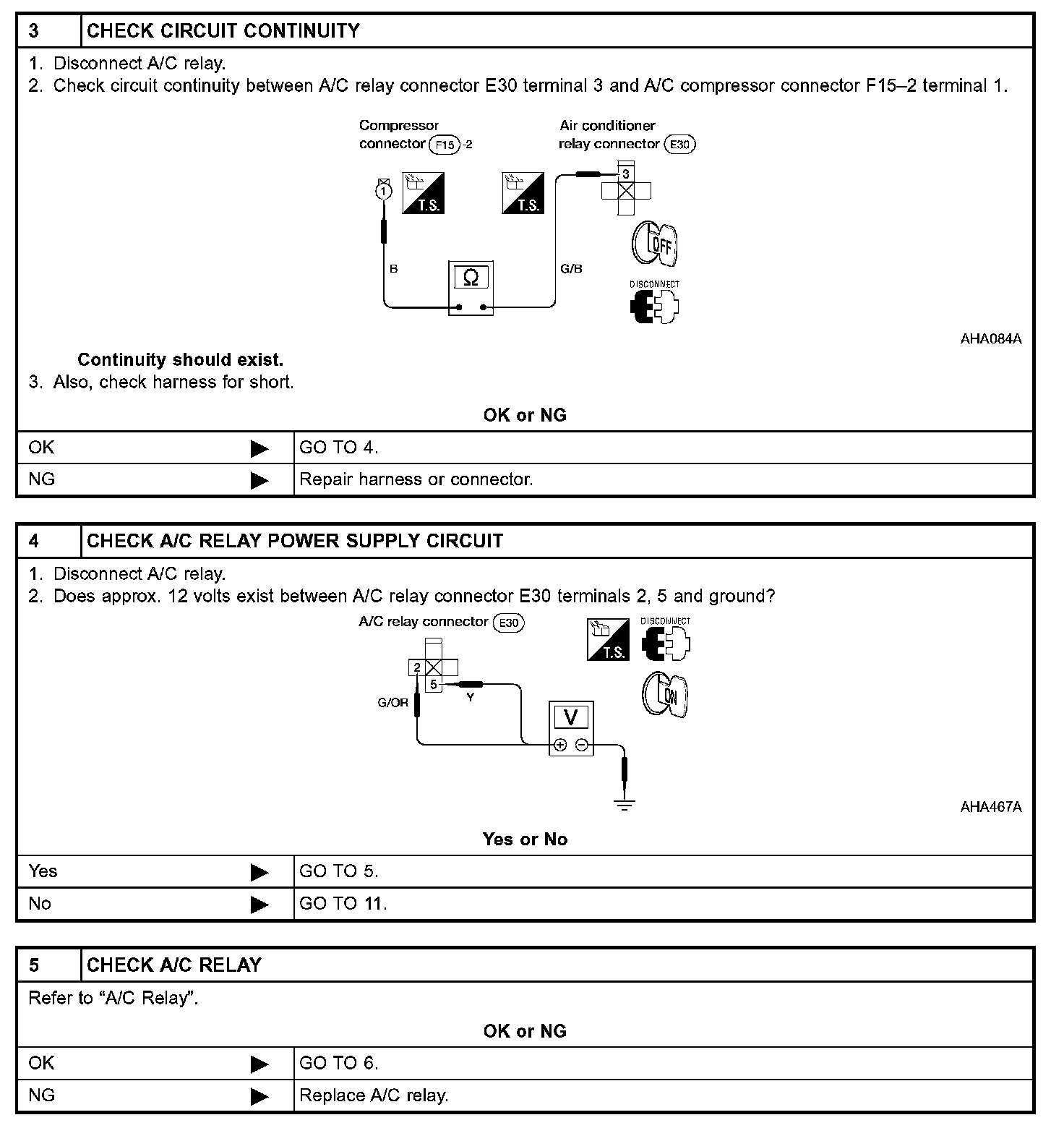

Step 3 - 5:

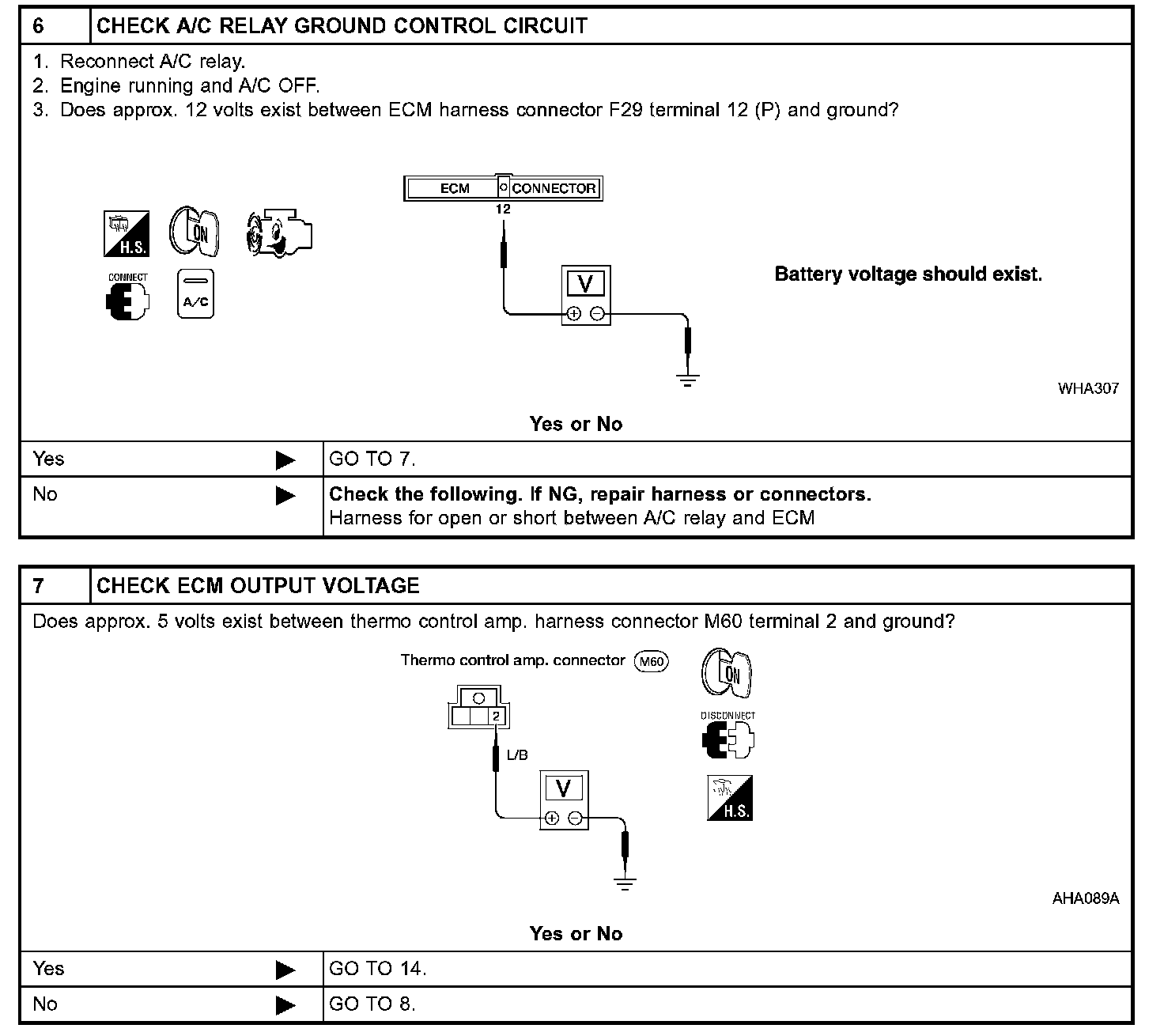

Step 6 - 7:

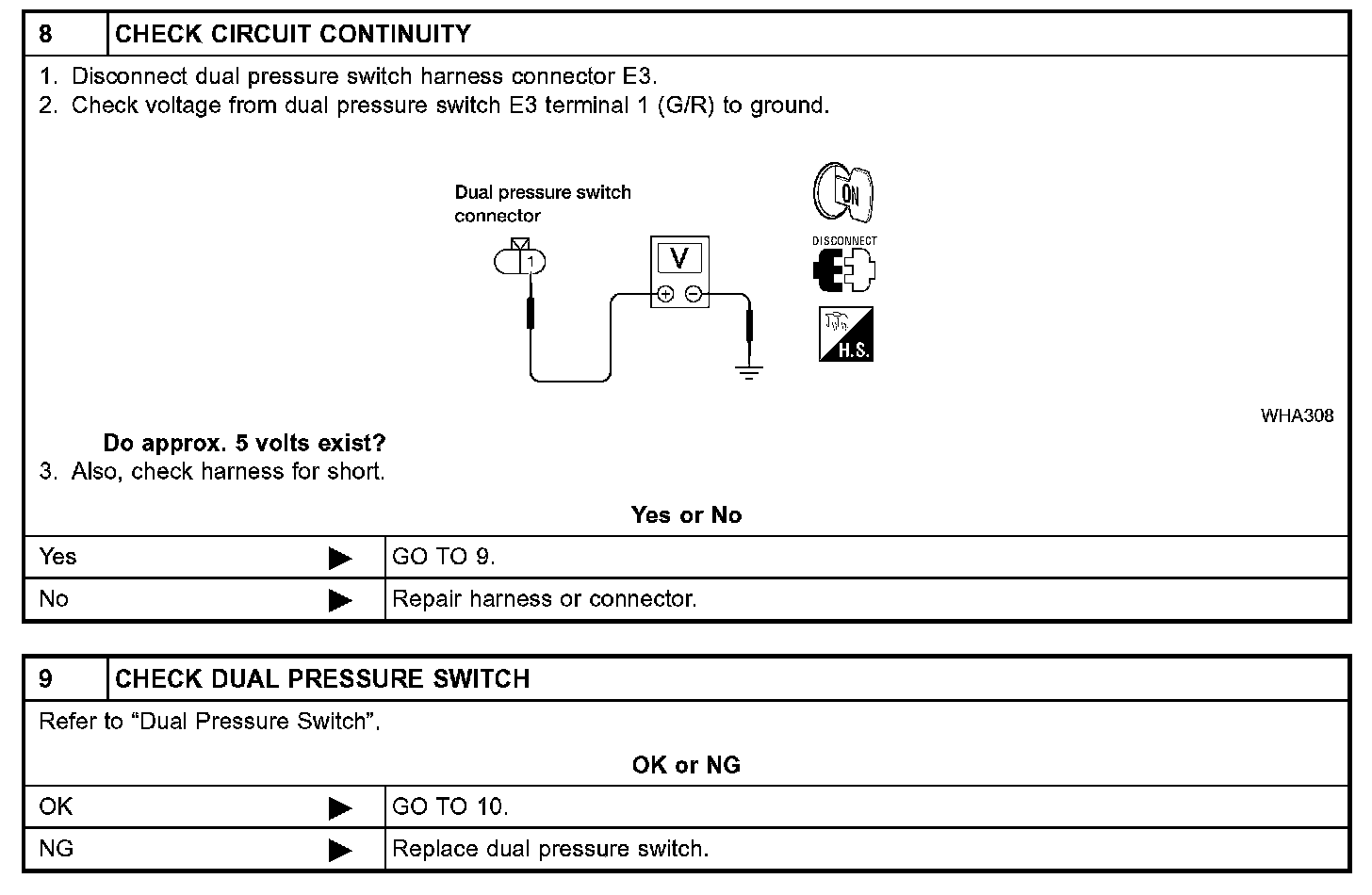

Step 8 - 9:

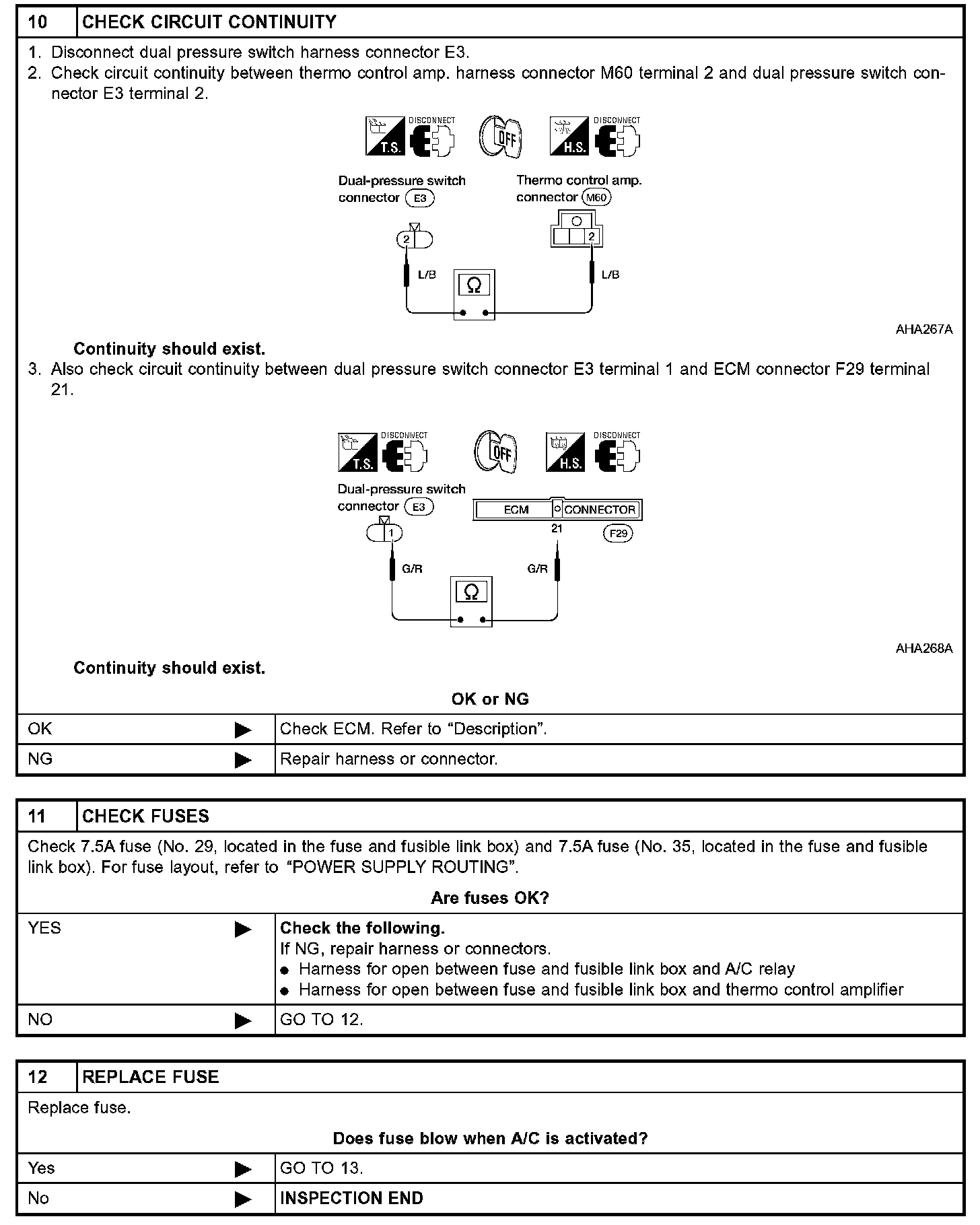

Step 10 - 12:

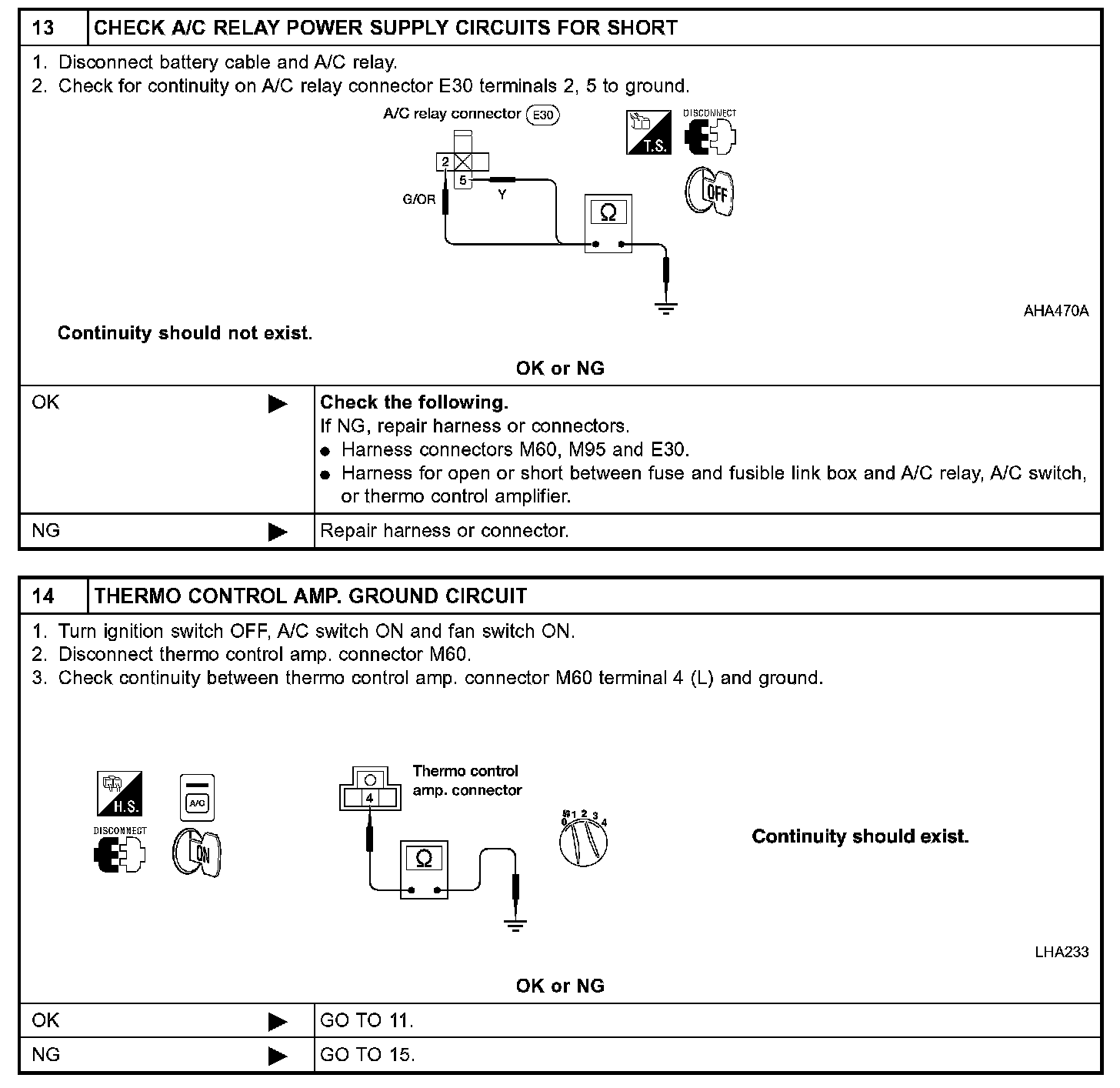

Step 13 - 14:

Step 15:

MAGNET CLUTCH CIRCUIT

SYMPTOM:
- Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENTS INSPECTION

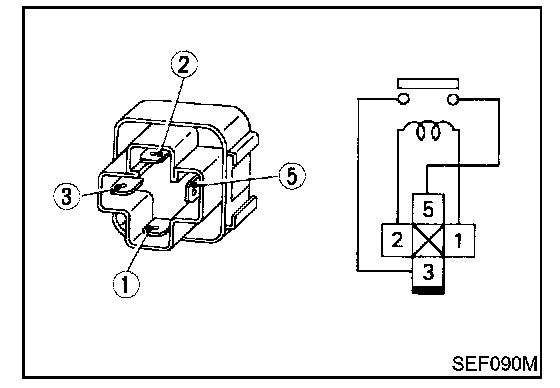

A/C Relay

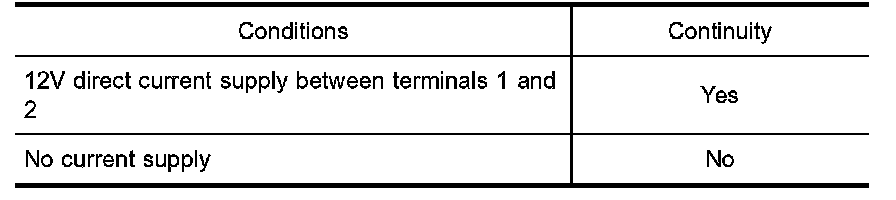

Check continuity between terminals 3 and 5.
If NG, replace relay.

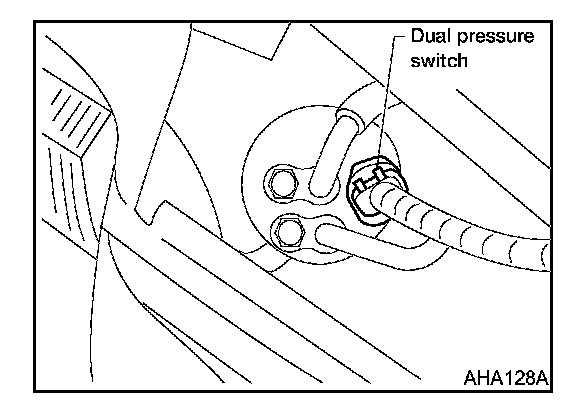

Dual Pressure Switch:

Dual Pressure Switch

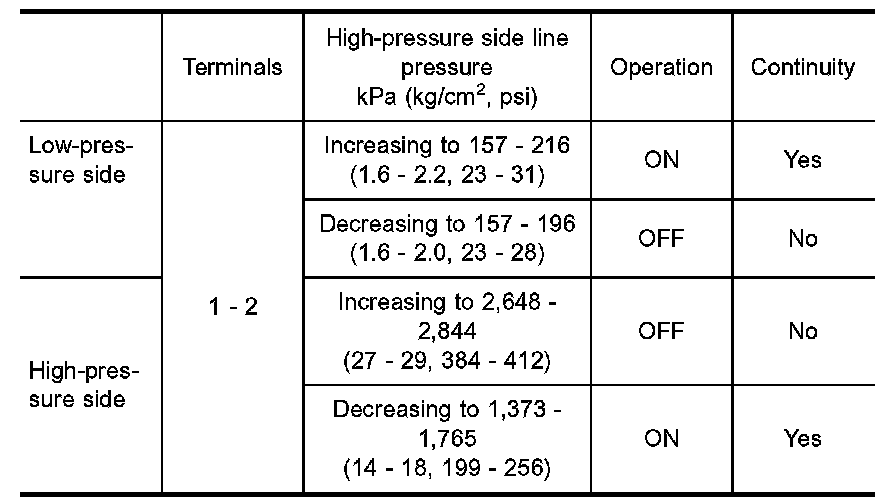

Check continuity between terminals.

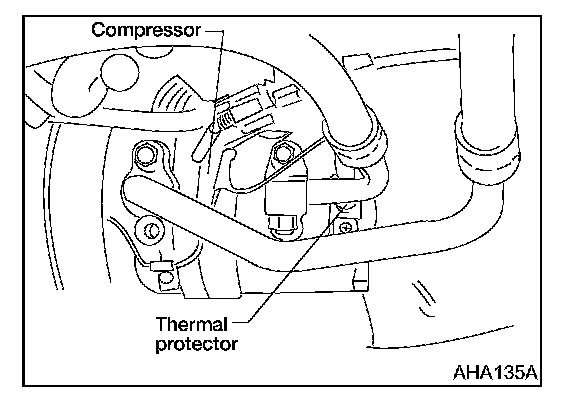

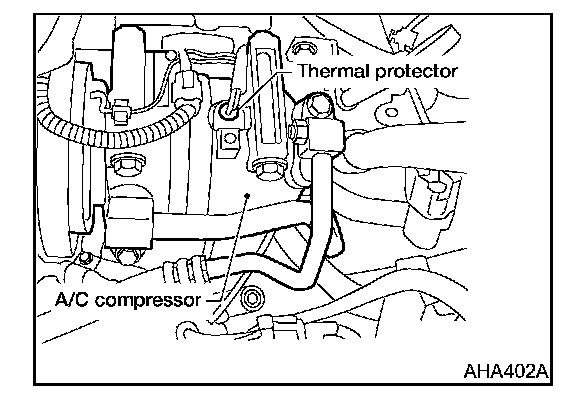

Thermal Protector

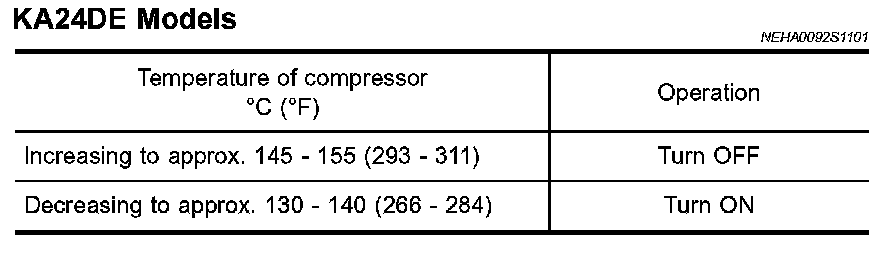

KA24DE Models:

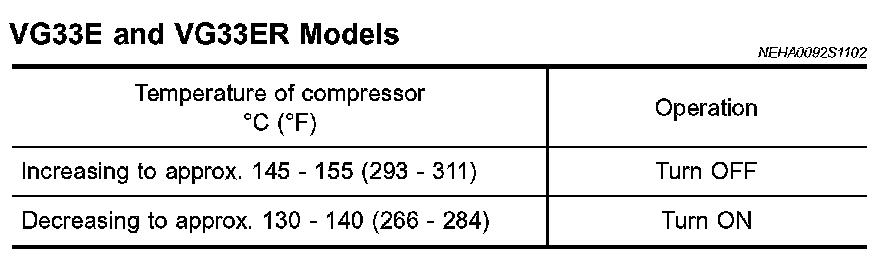

VG33E And VG33ER Models:

Thermo Control Amp.
1. Run engine and operate A/C system.
2. Connect the voltmeter from harness side.

3. Check the thermo control amp. operation as shown in the table.
