Lubricant Return Operation


LUBRICANT
Name: Nissan A/C System Oil Type R
Part number: KLH00-PAGR0

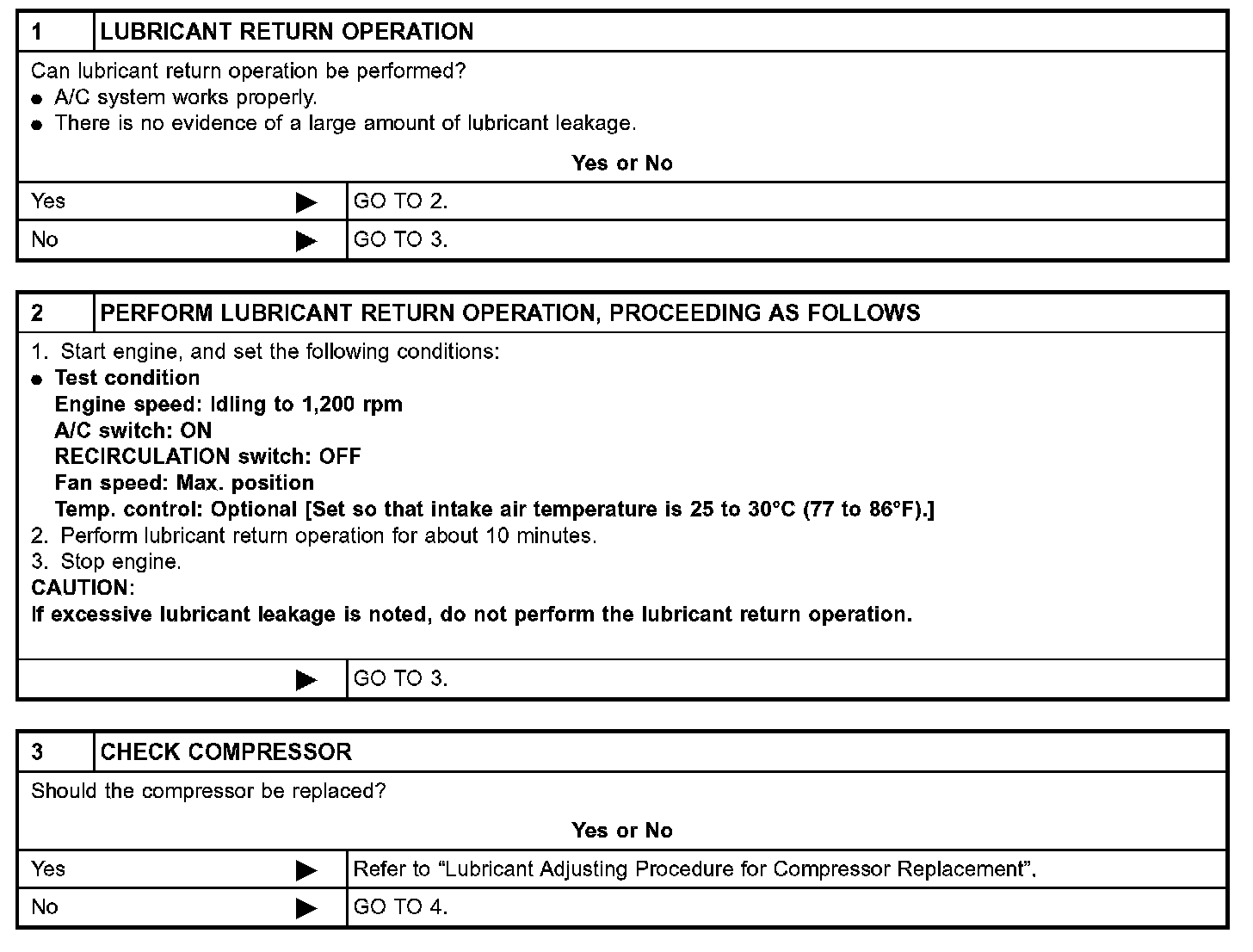

Step 1 - 3:

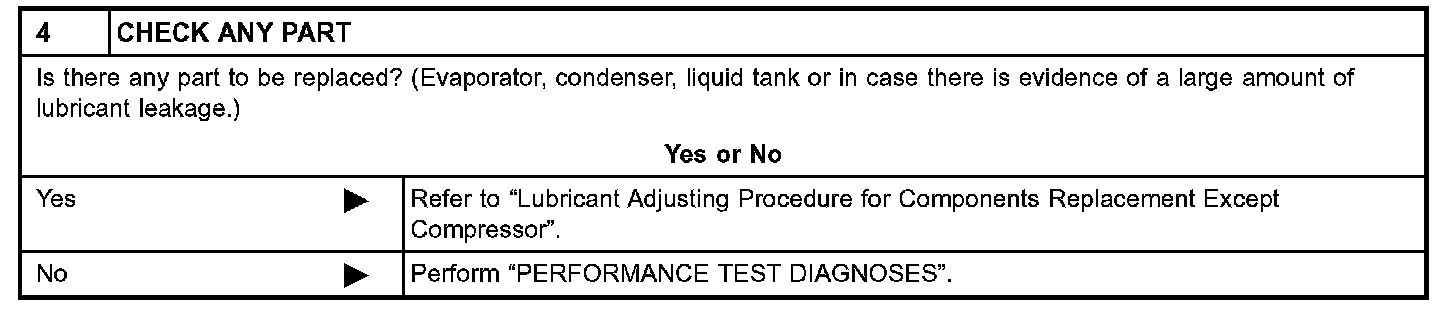

Step 4:






LUBRICANT RETURN OPERATION
Adjust the lubricant quantity according to the test group shown.
