Air Conditioning System - Component Layout

Component Layout:

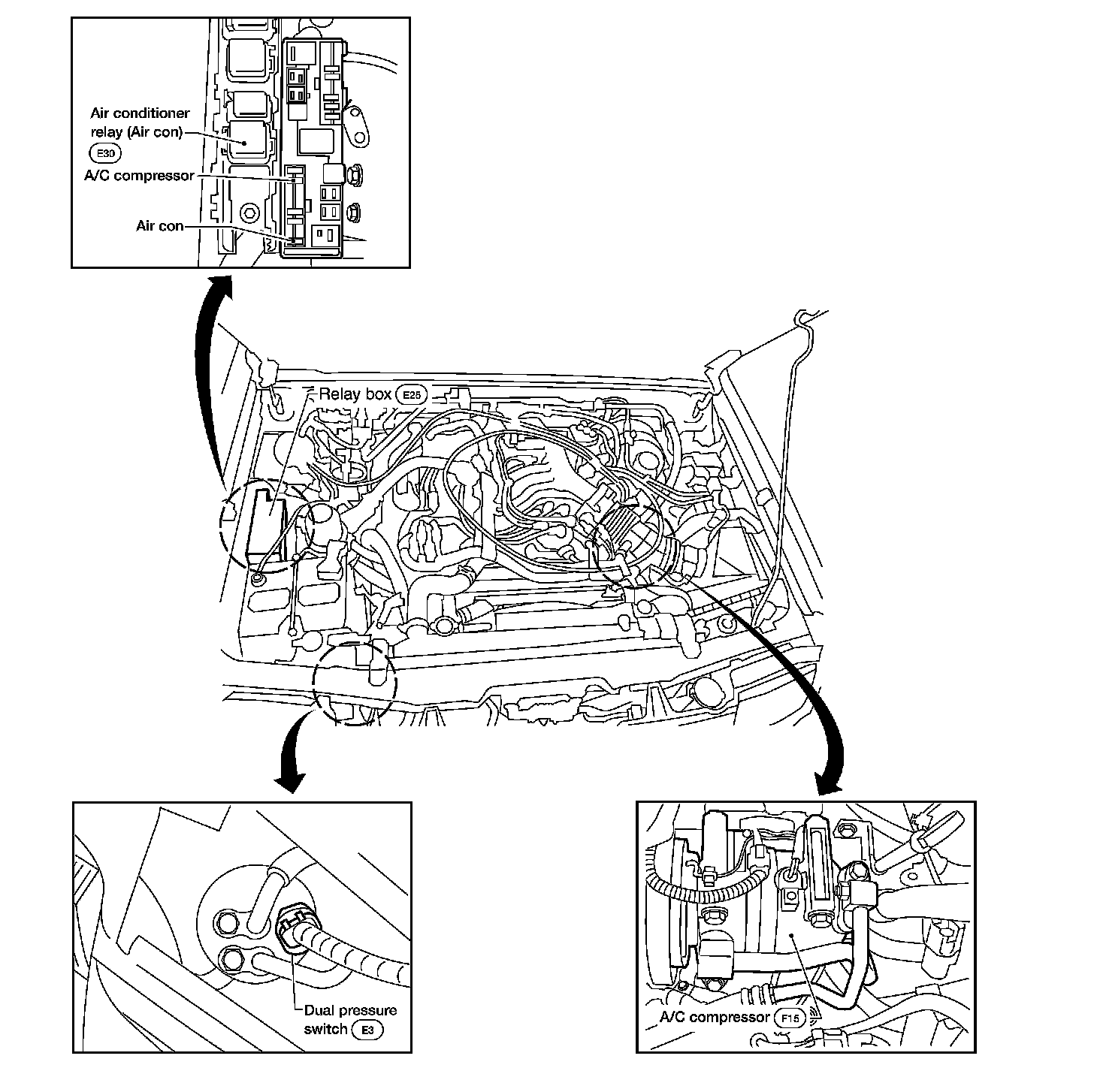

Engine Compartment (VG33E Models):

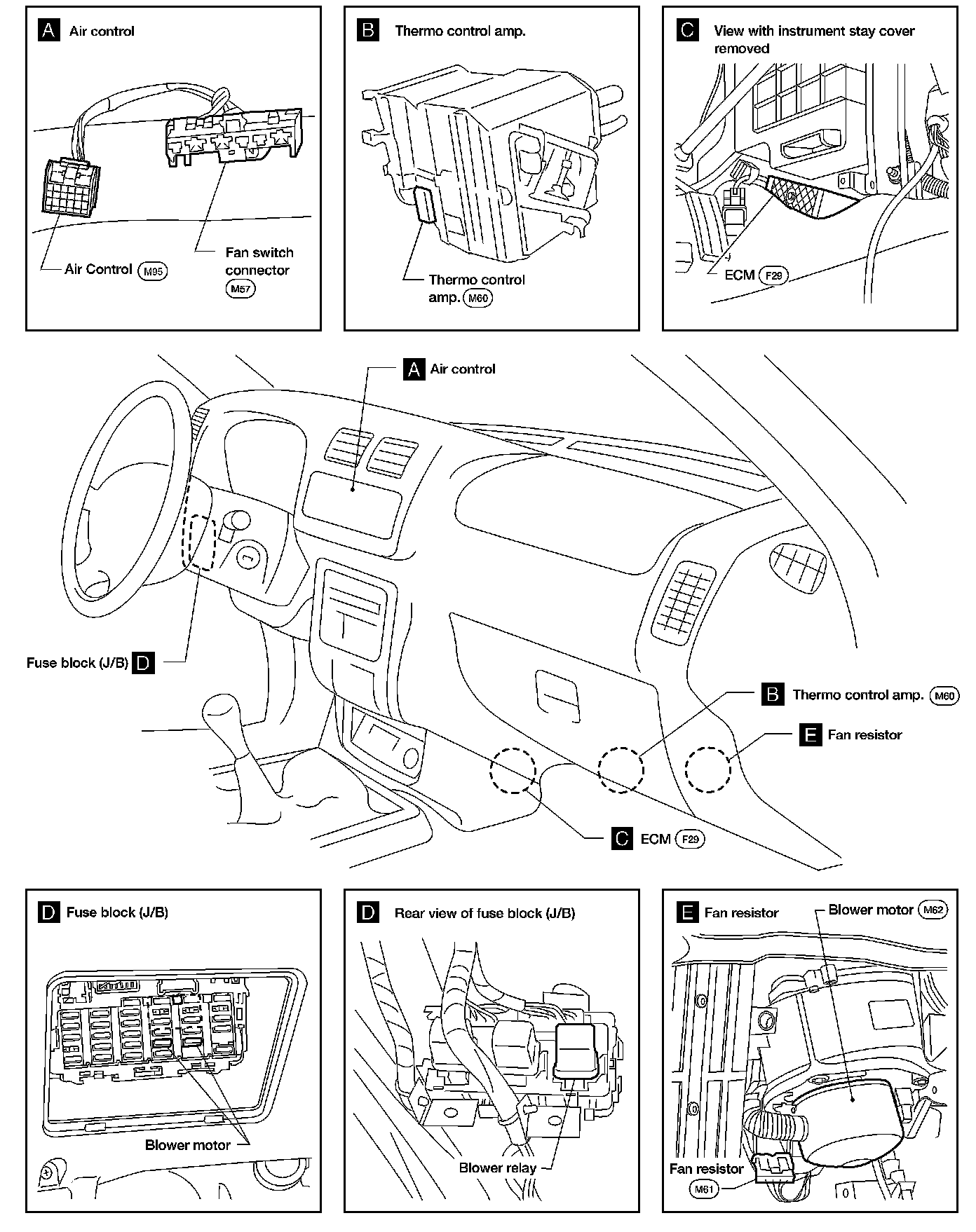

Passenger Compartment:
