Cabin Air Filter / Purifier: Service and Repair

FUNCTION

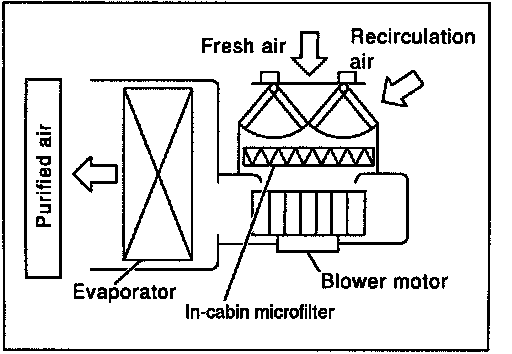

Air inside passenger compartment is kept clean at either recirculation or fresh mode by installing in-cabin microfilter into blower unit.

REPLACEMENT TIMING





Replace in-cabin microfilter when required by maintenance schedule. Caution label is affixed inside the glove box.

REPLACEMENT PROCEDURES





1. Remove glove box assembly.
2. Remove in-cabin microfilter cover.
3. Take out the ventilation air filter from blower unit.
4. Replace with new in-cabin microfilter and reinstall on blower unit.
5. Reinstall glove box assembly.
