Timing Belt: Testing and Inspection
InspectionRemove Timing Belt / Tensioner.
TIMING BELT

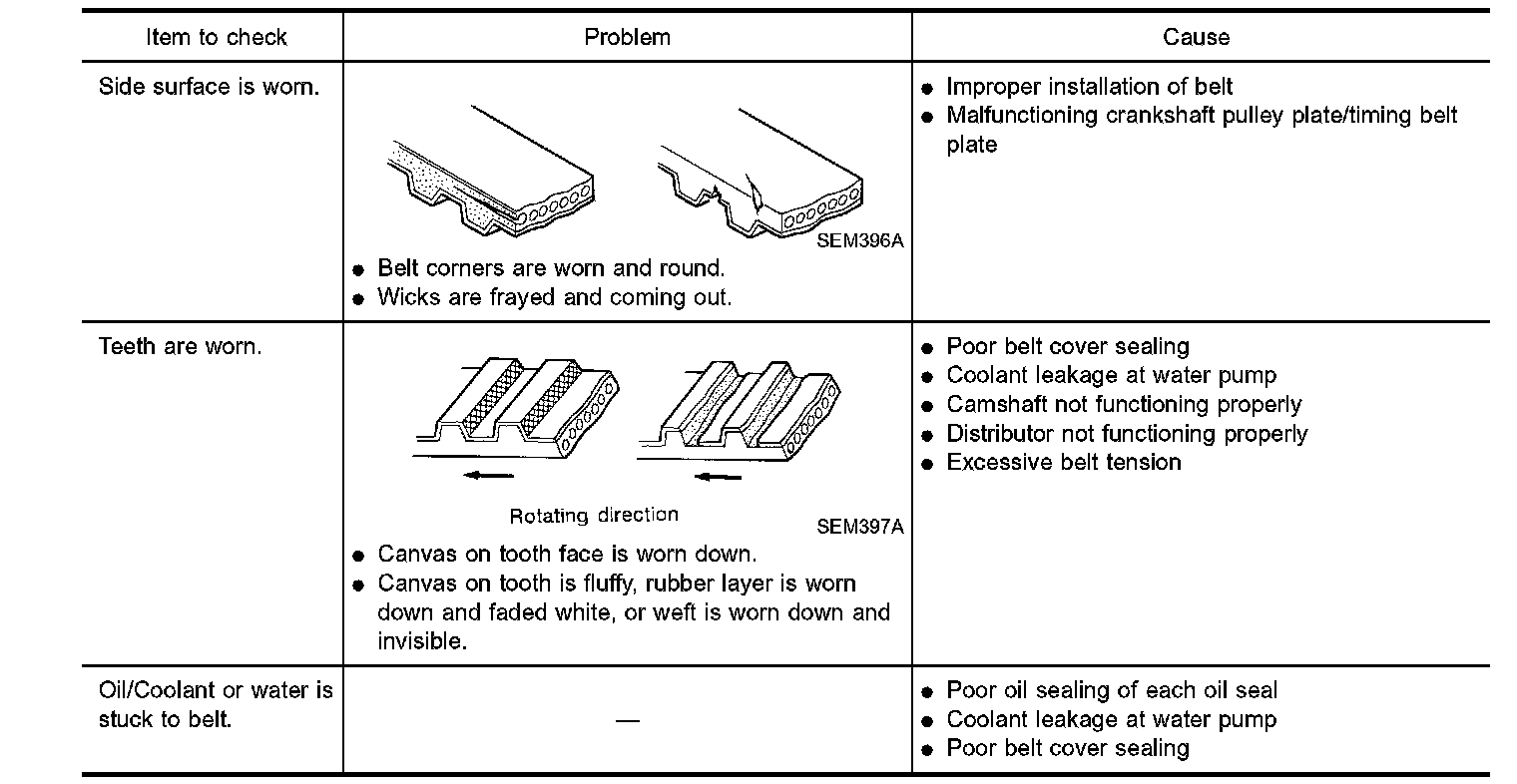

Visually check the condition of timing belt. Replace if any abnormality is found.
BELT TENSIONER AND TENSIONER SPRING
1. Check belt tensioner for smooth turning.
2. Check condition of tensioner spring.
