Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

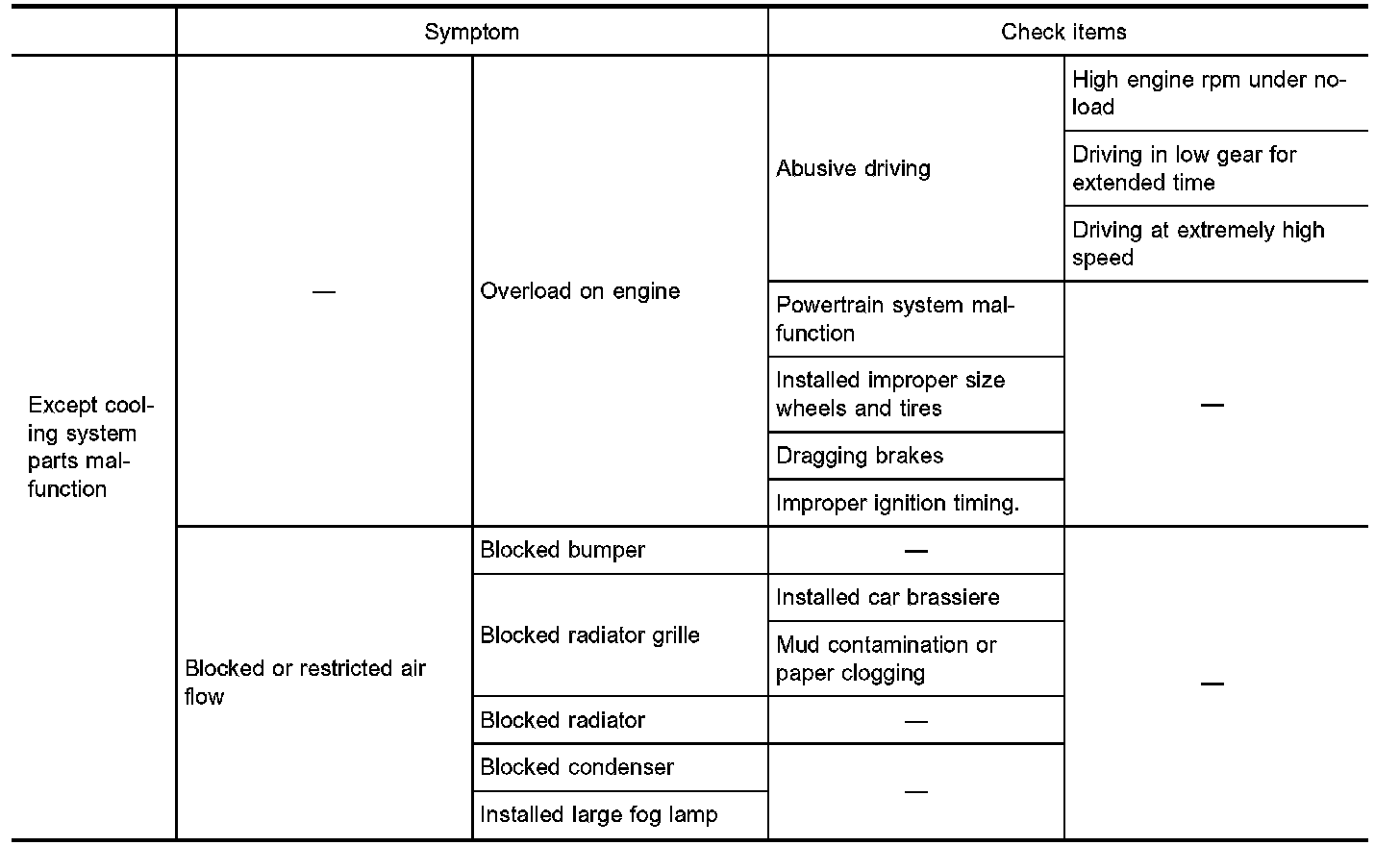

OVERHEATING CAUSE ANALYSIS (part 1 Of 2):

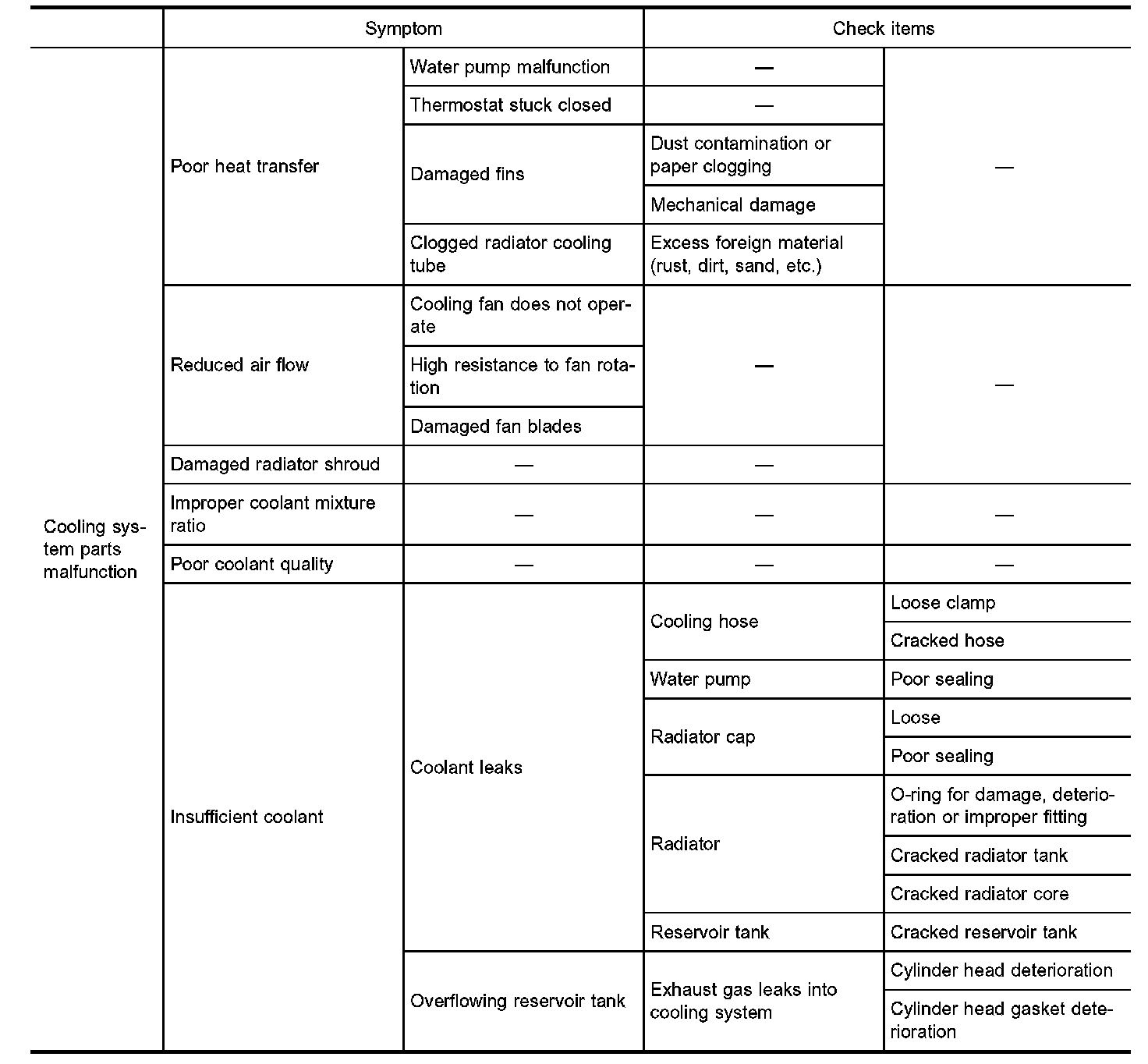

OVERHEATING CAUSE ANALYSIS (part 2 Of 2):
