Automatic Transmission/Transaxle

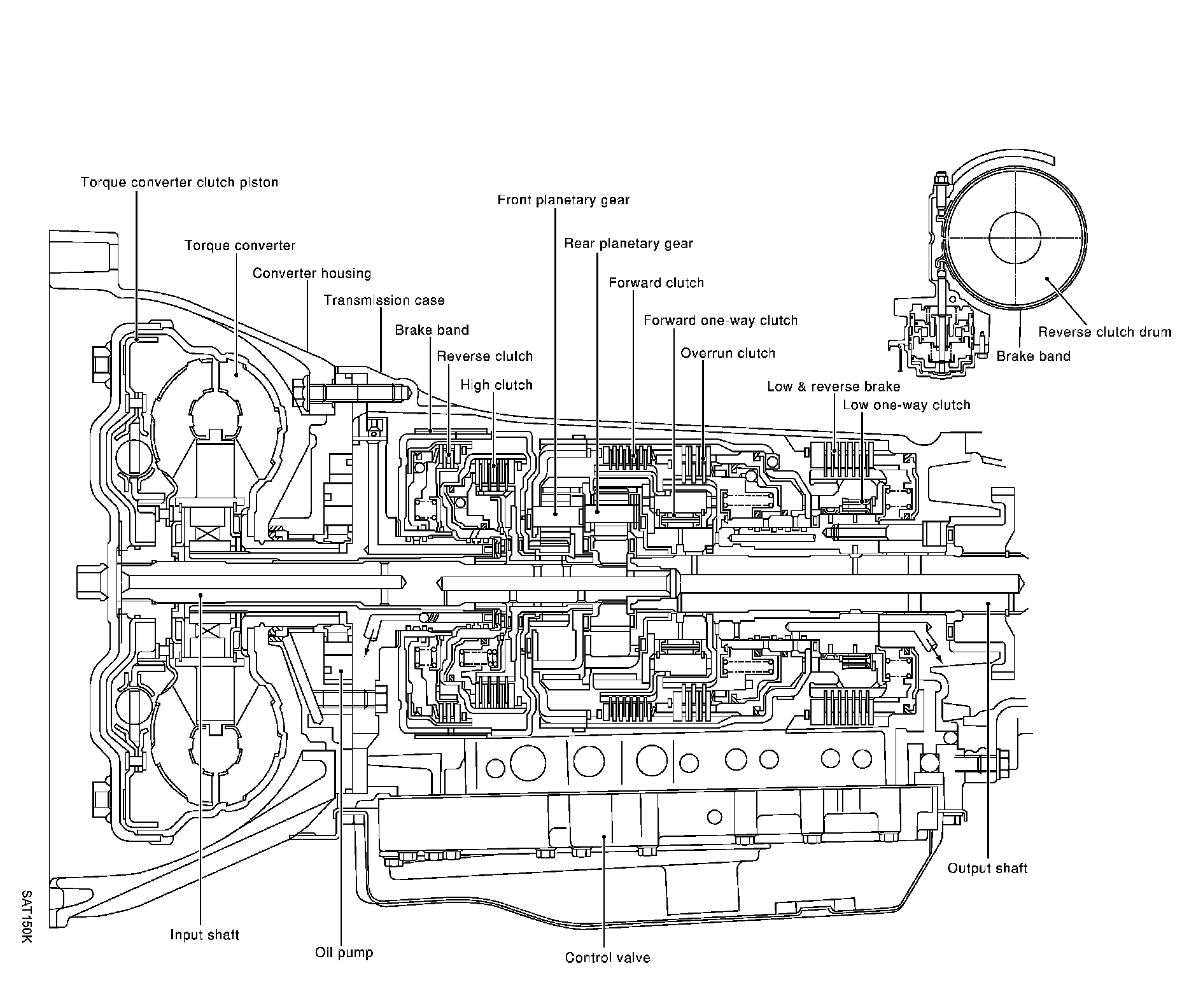

Cross Sectional View:

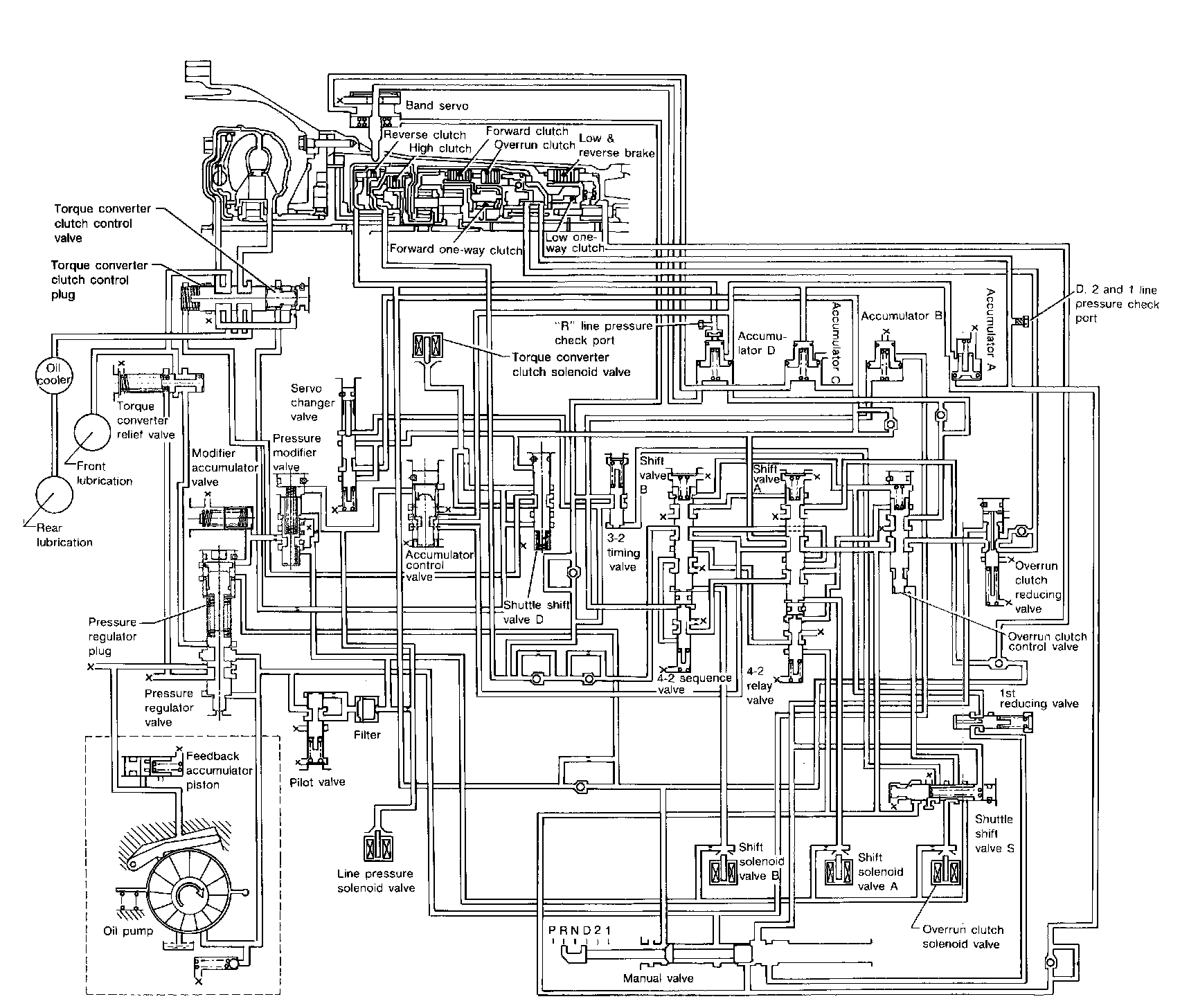

Hydraulic Control Circuit:
Shift Mechanism / Construction:
Control System:
