Nissan-Datsun Truck
>>
2002
>>
Frontier XE Crew Cab 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Transfer Case
Transfer Case
Transfer Gear Control:

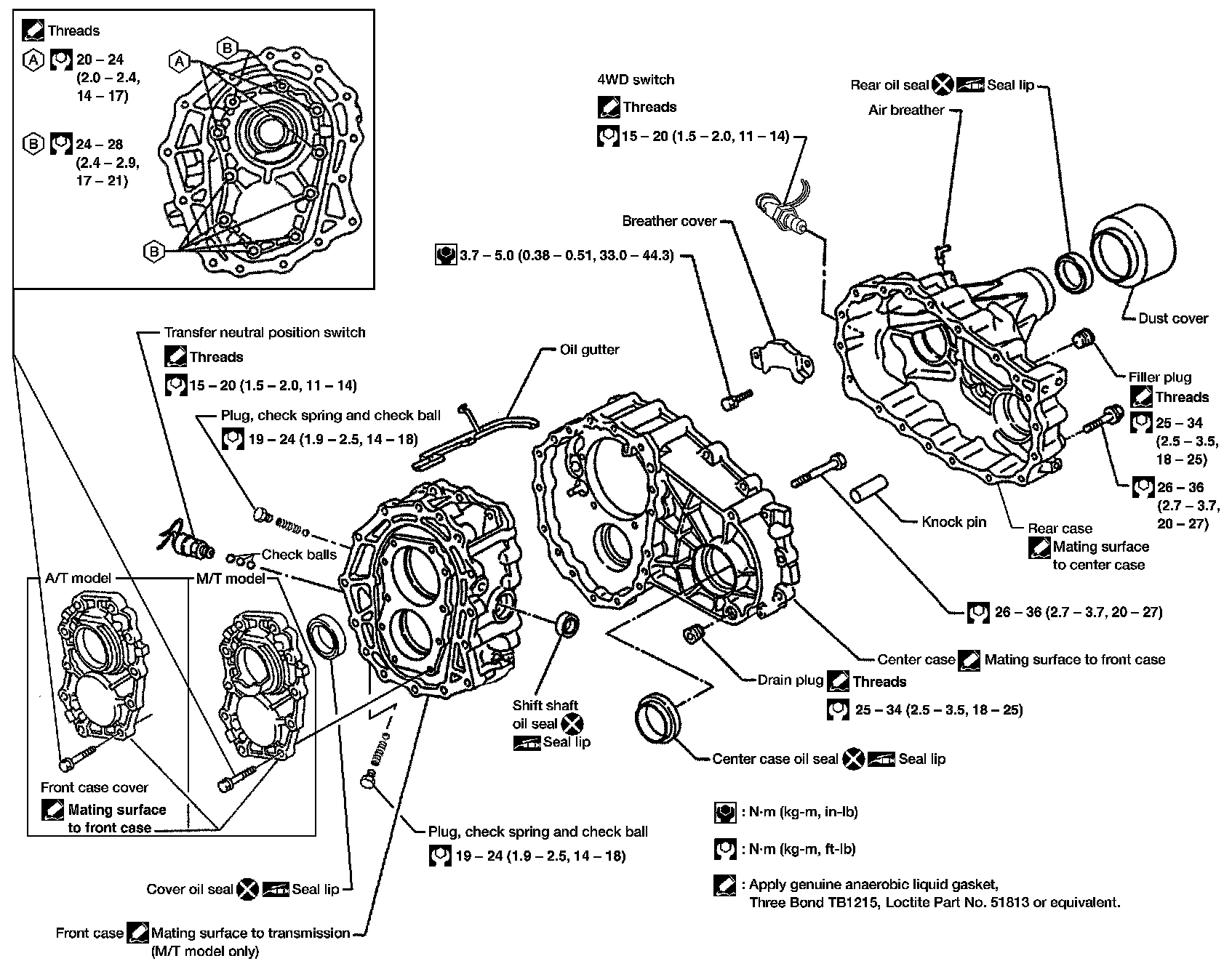

Case Components:

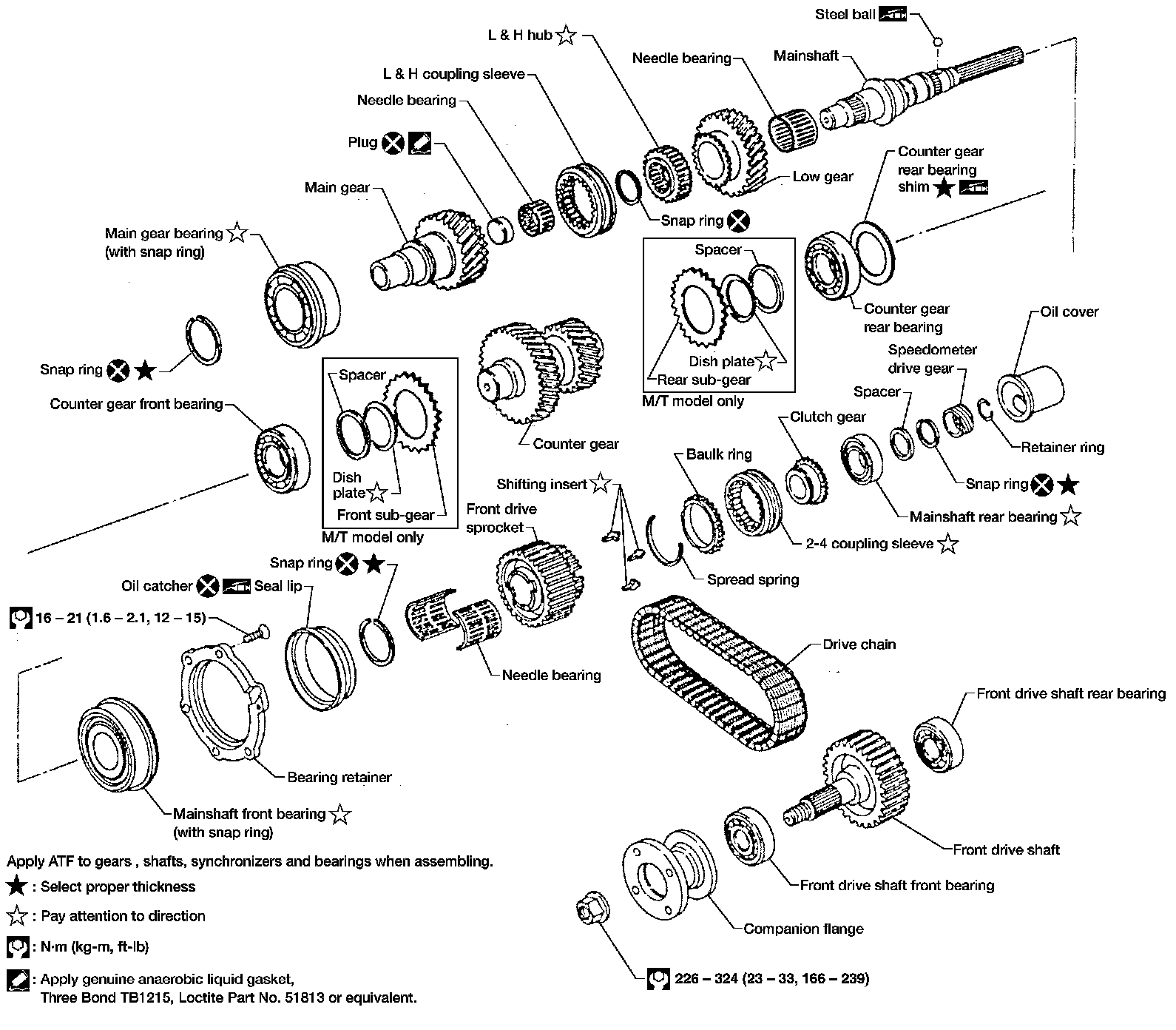

Gear Components:

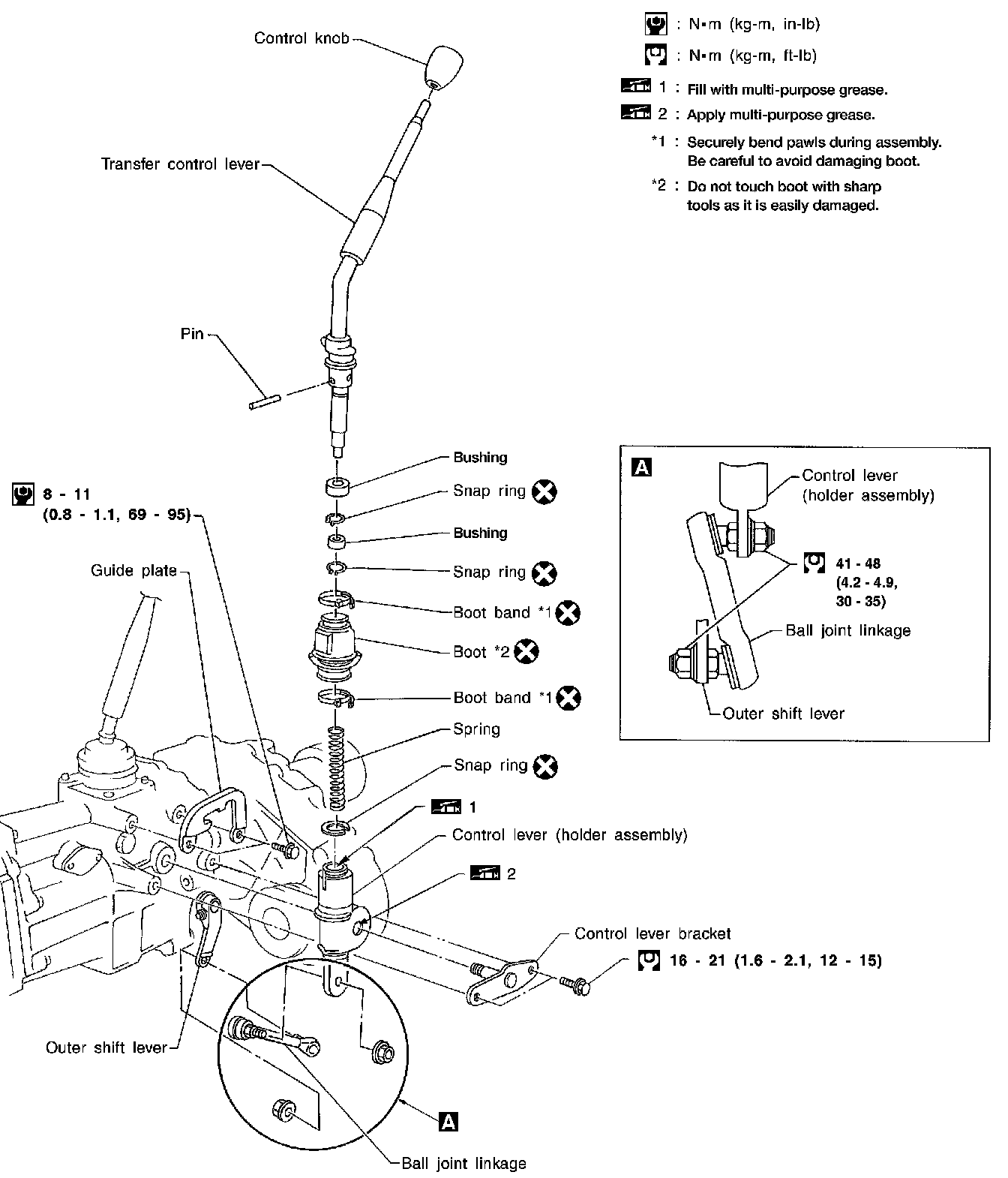

Shift Control Components:
