Drive/Propeller Shaft

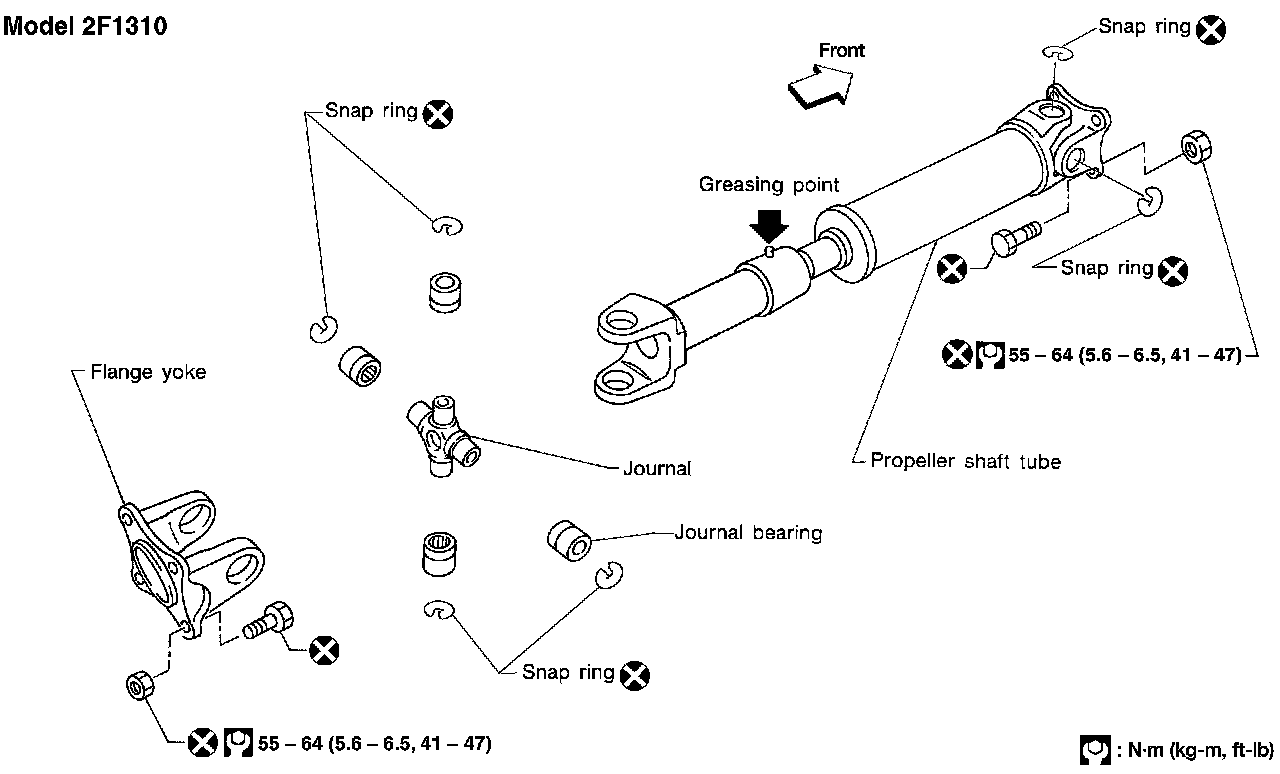

FRONT PROPELLER SHAFT:

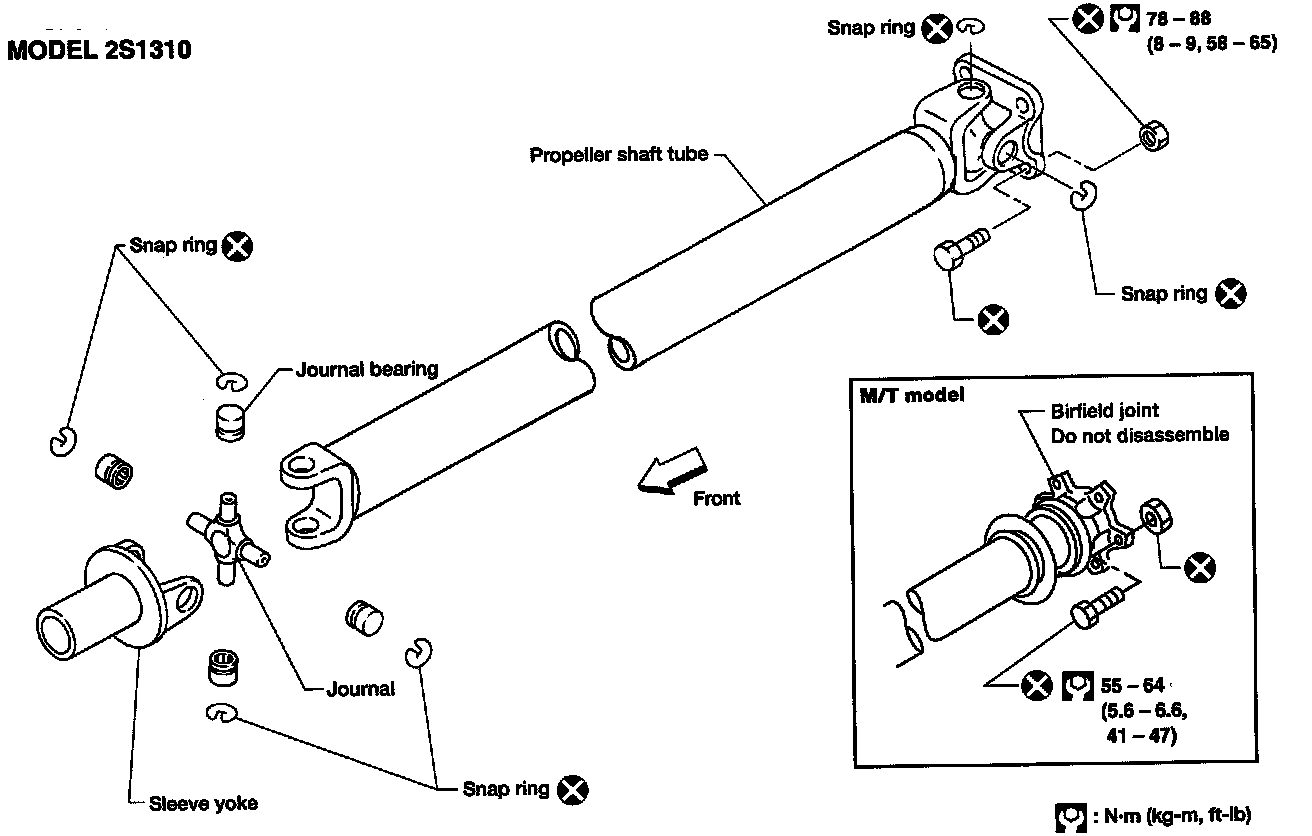

REAR PROPELLER SHAFT (1 OF 3):

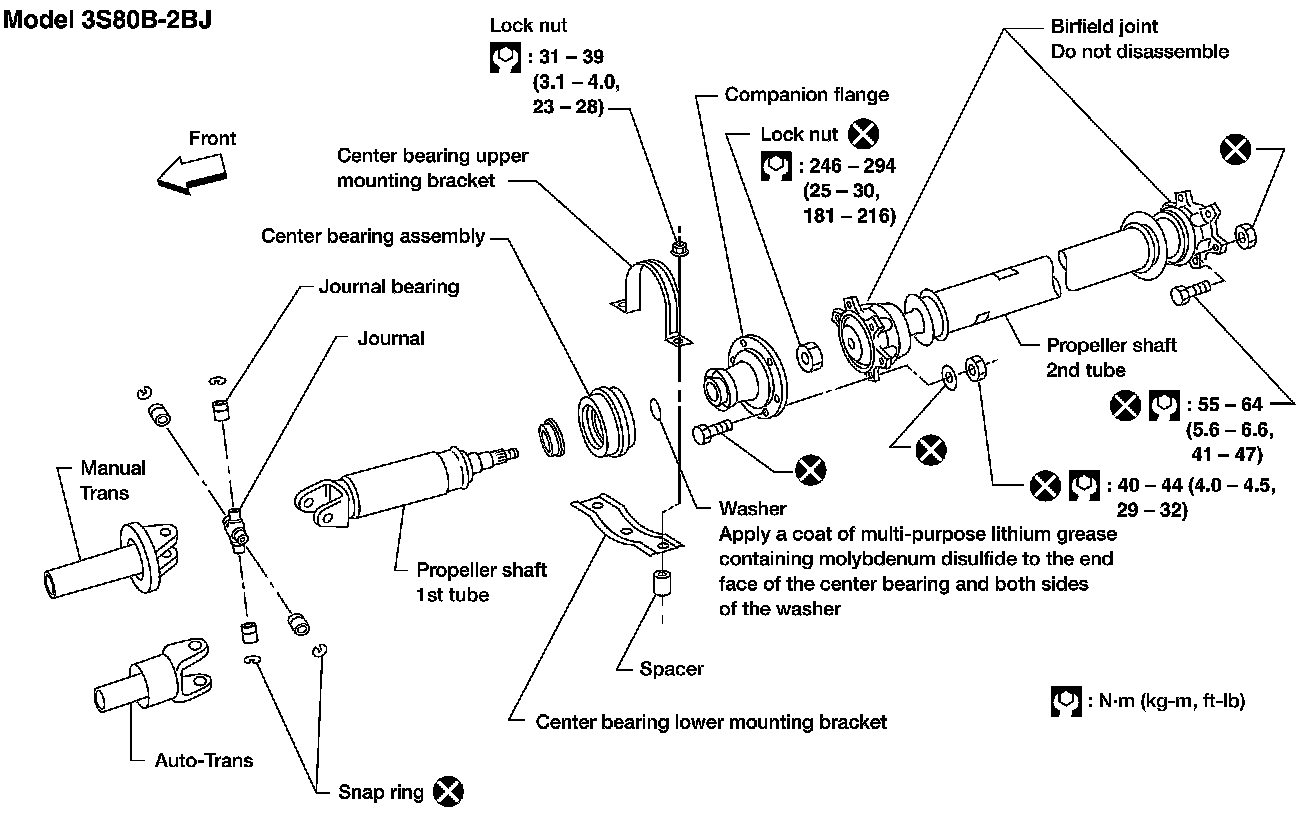

REAR PROPELLER SHAFT (2 OF 3):

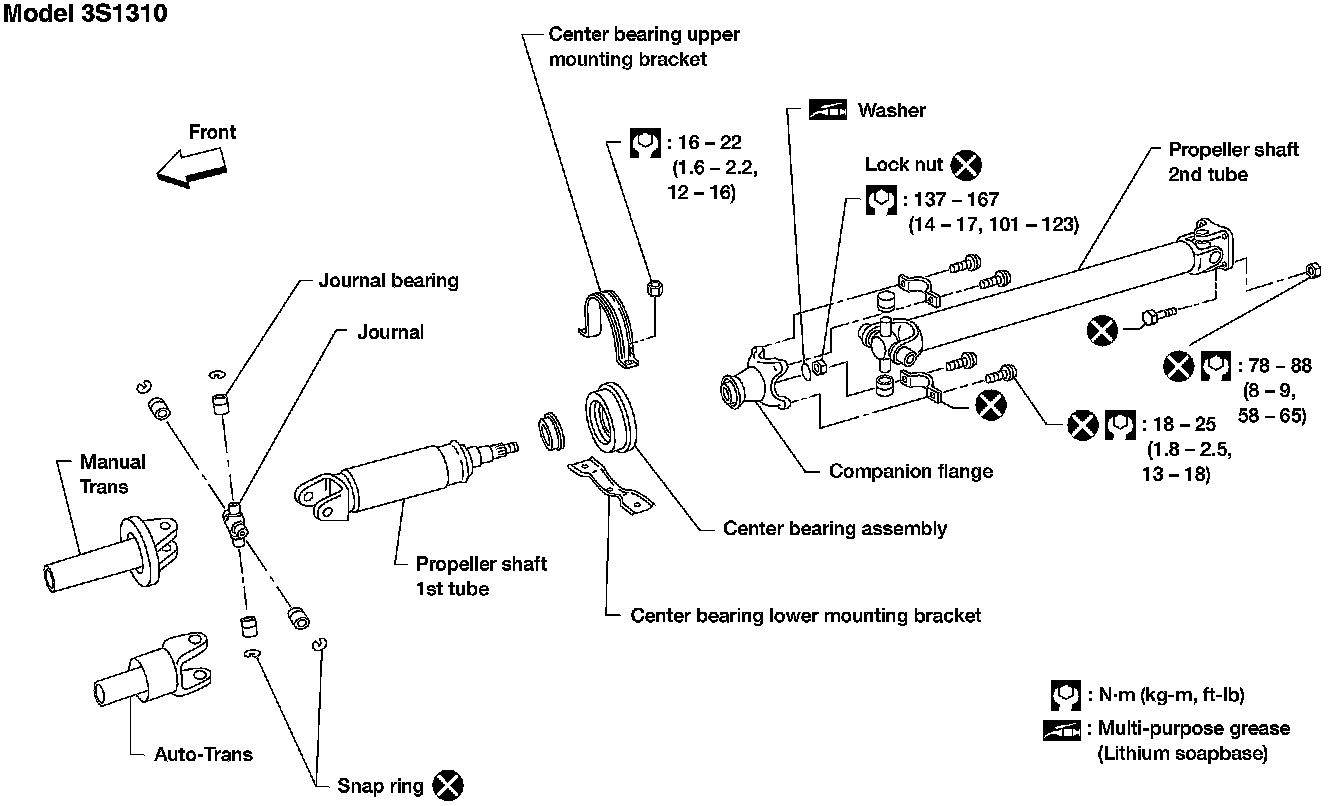

REAR PROPELLER SHAFT (3 OF 3):

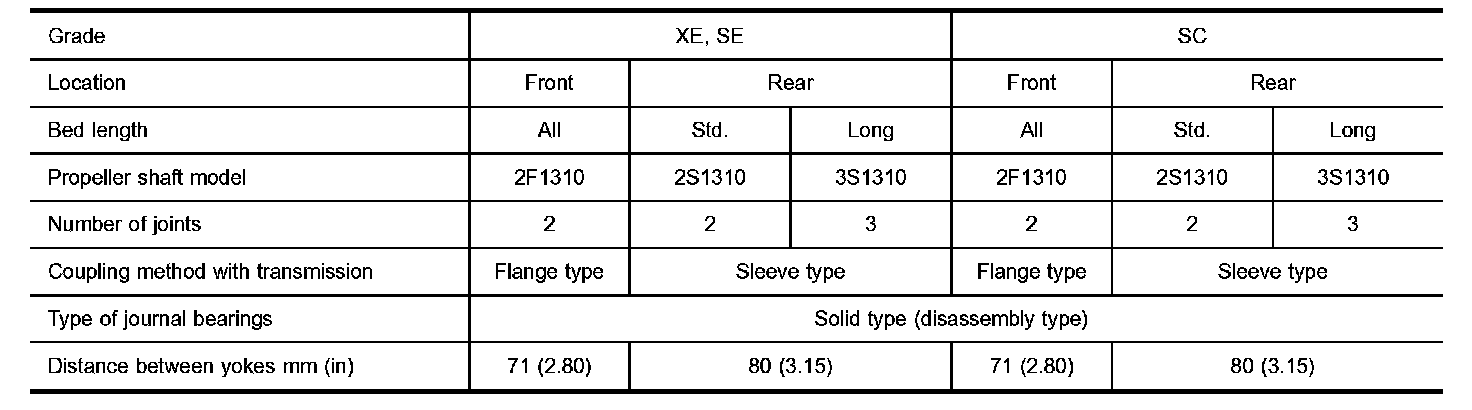

GENERAL SPECIFICATIONS:

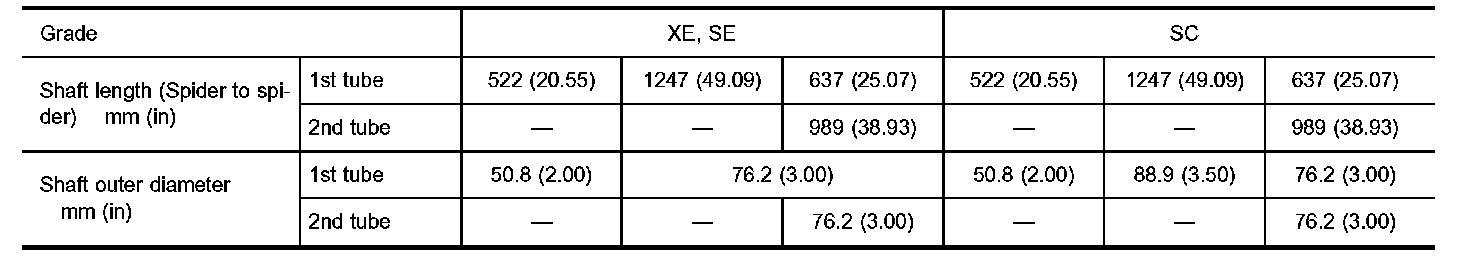

GENERAL SPECIFICATIONS:

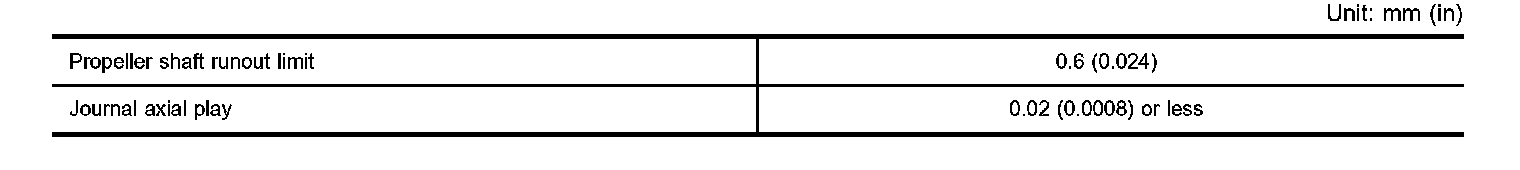

SERVICE DATA:
