EL-KEYLESS
EL-KEYLESS

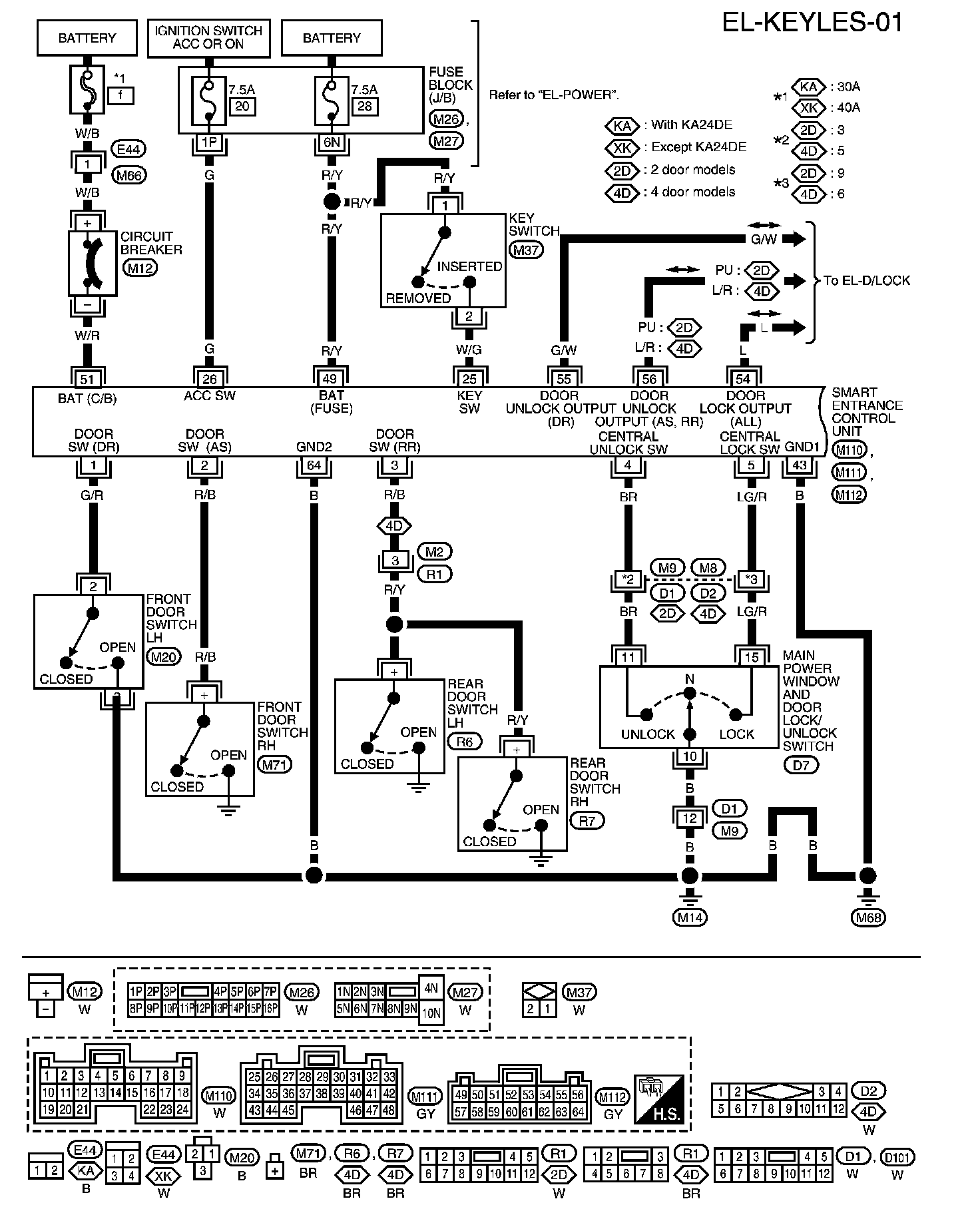

EL-KEYLES-01:

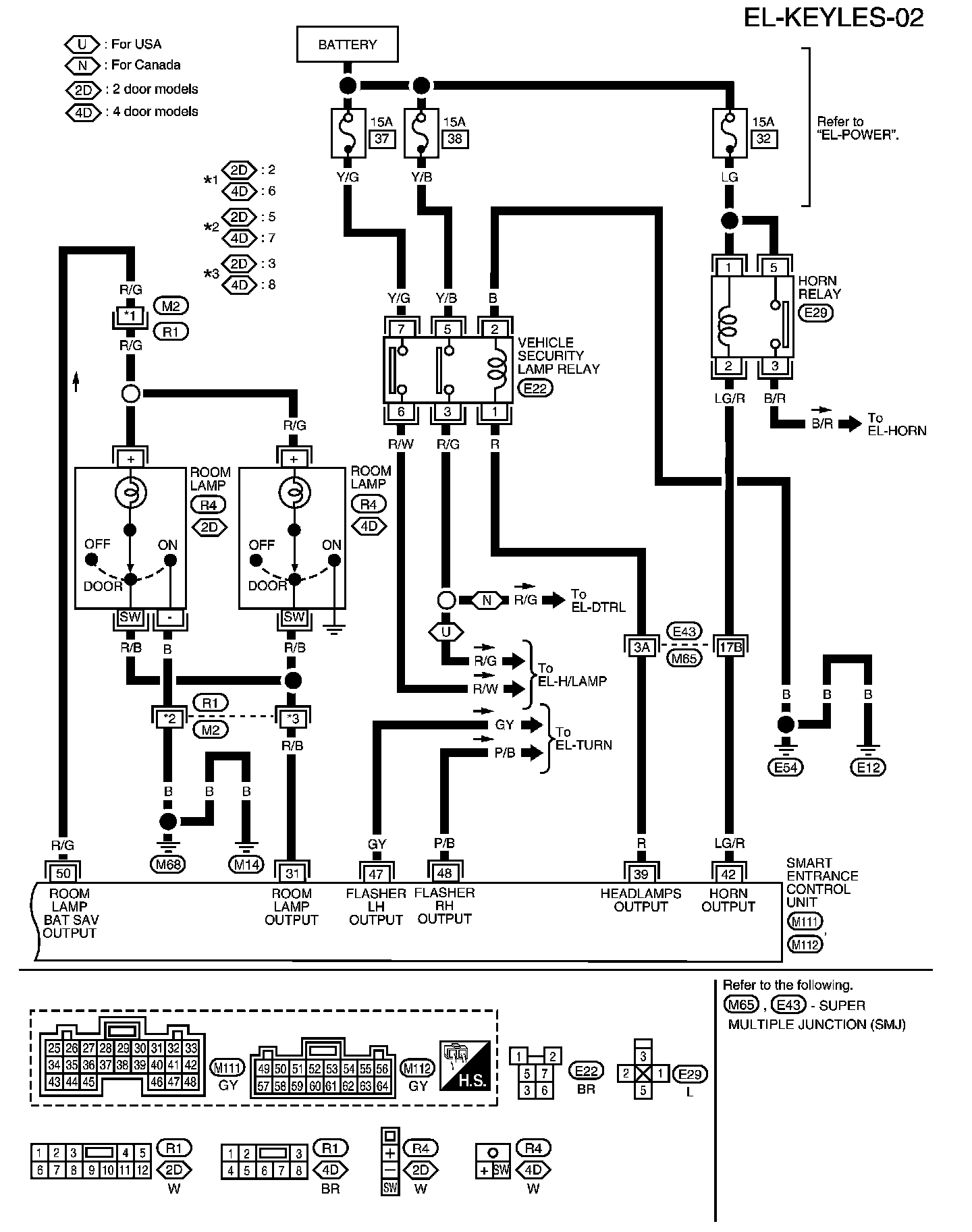

EL-KEYLES-02:
Smart Entrance Control Unit / Circuit Diagram Part 1:
Smart Entrance Control Unit / Circuit Diagram Part 2:
