EL-AUDIO

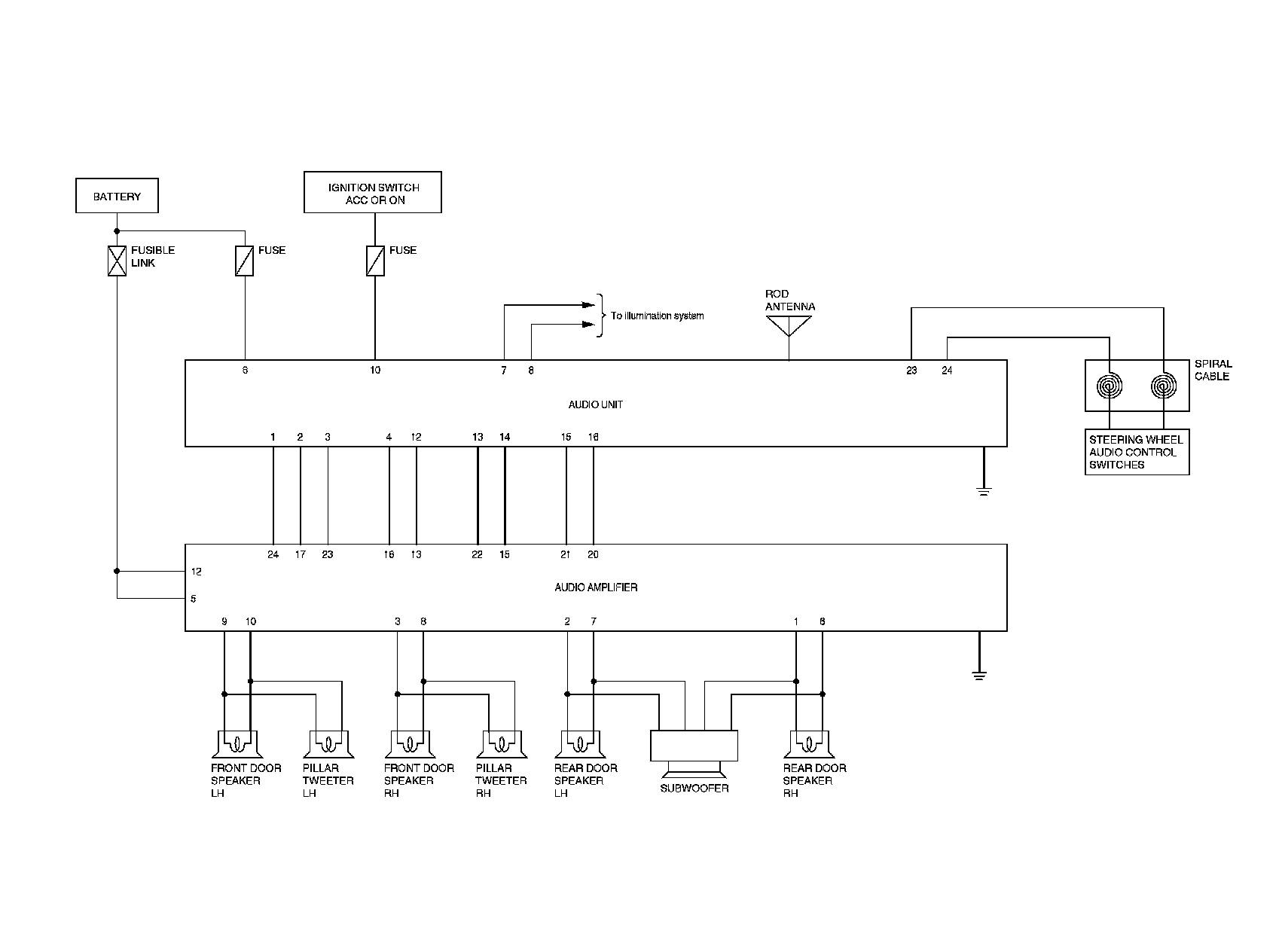

EL-AUDIO / Schematic - With Audio Amplifier:

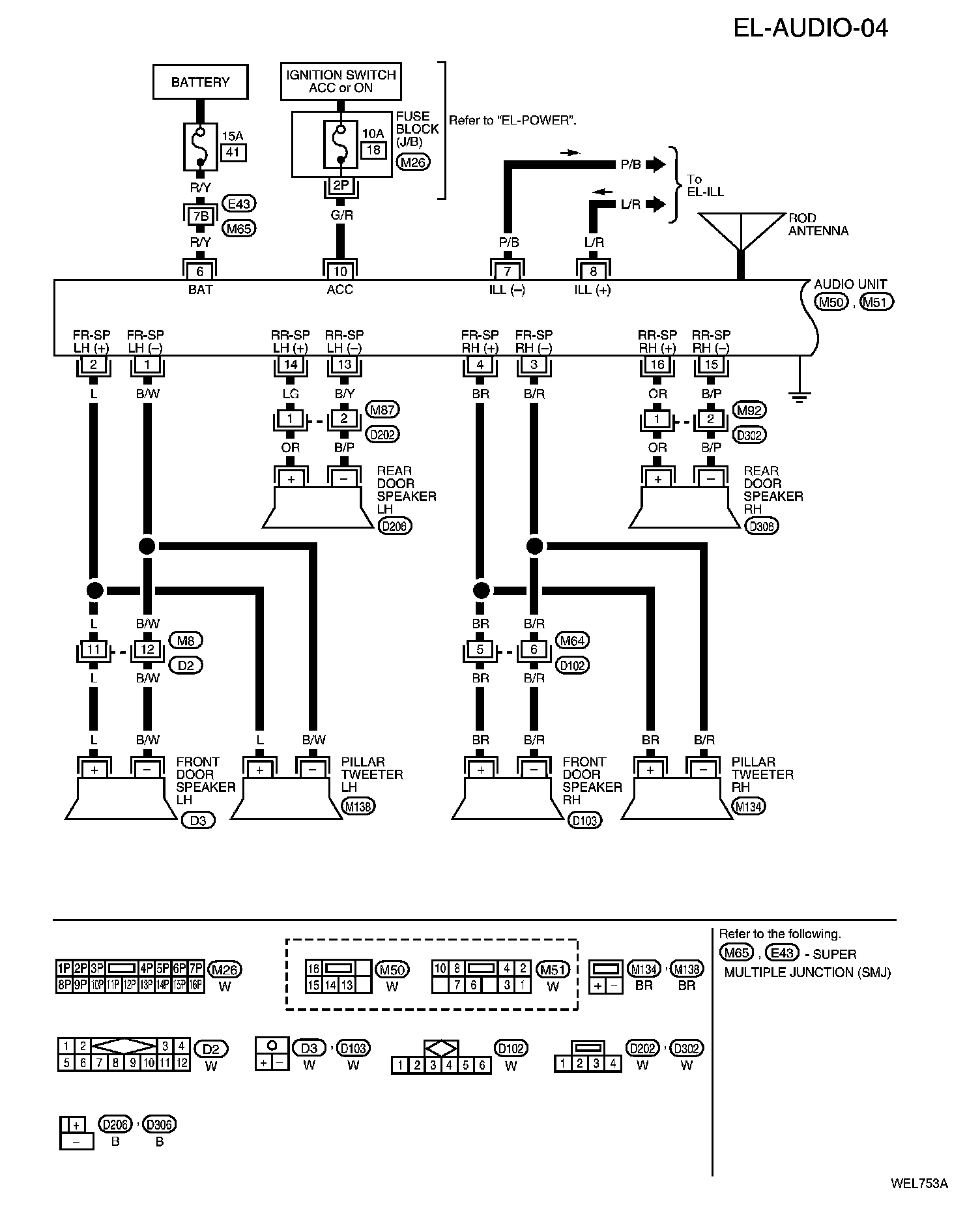

EL-AUDIO-04 (Crew Cab Without Amplifier):

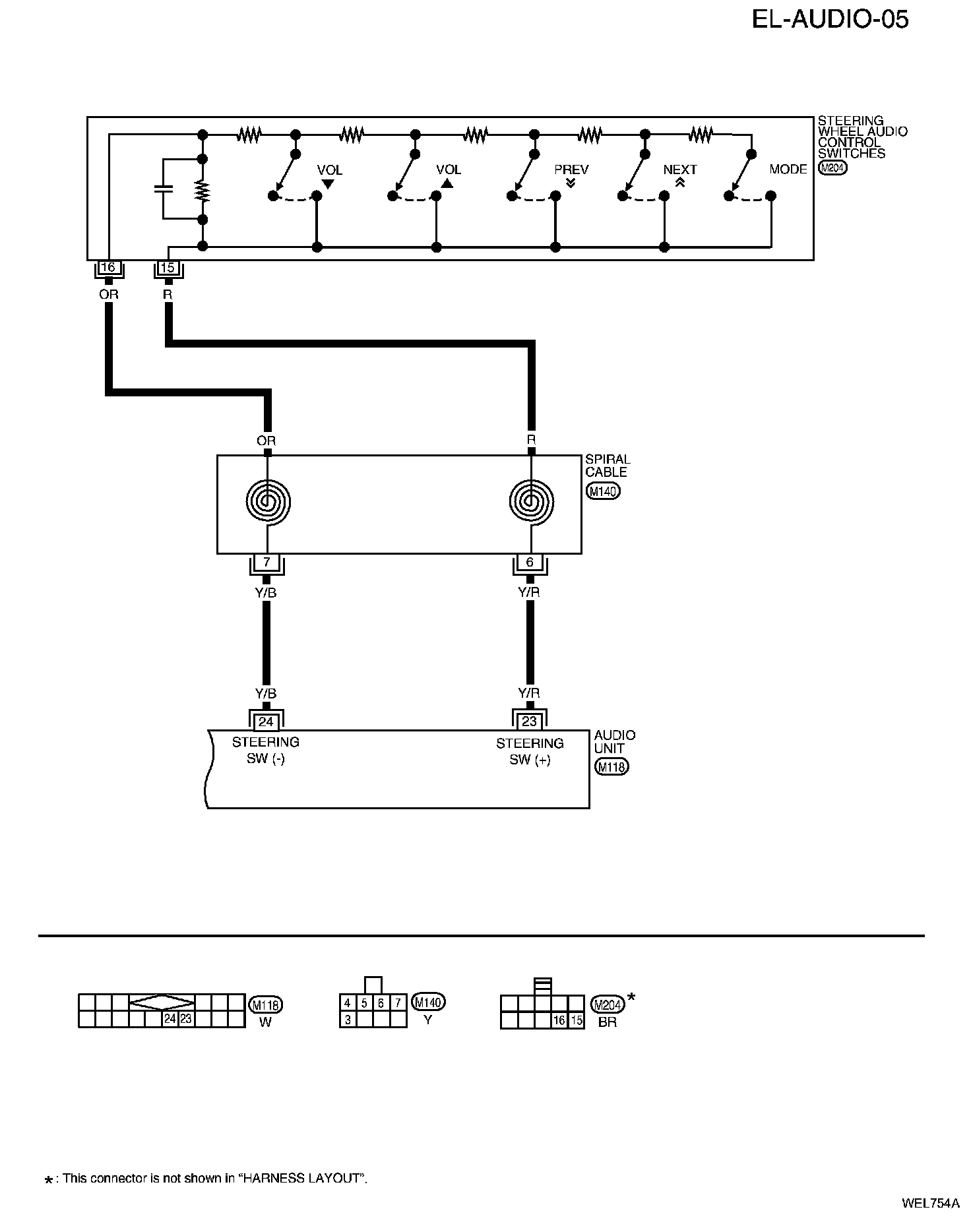

EL-AUDIO-05 (Crew Cab Without Amplifier):

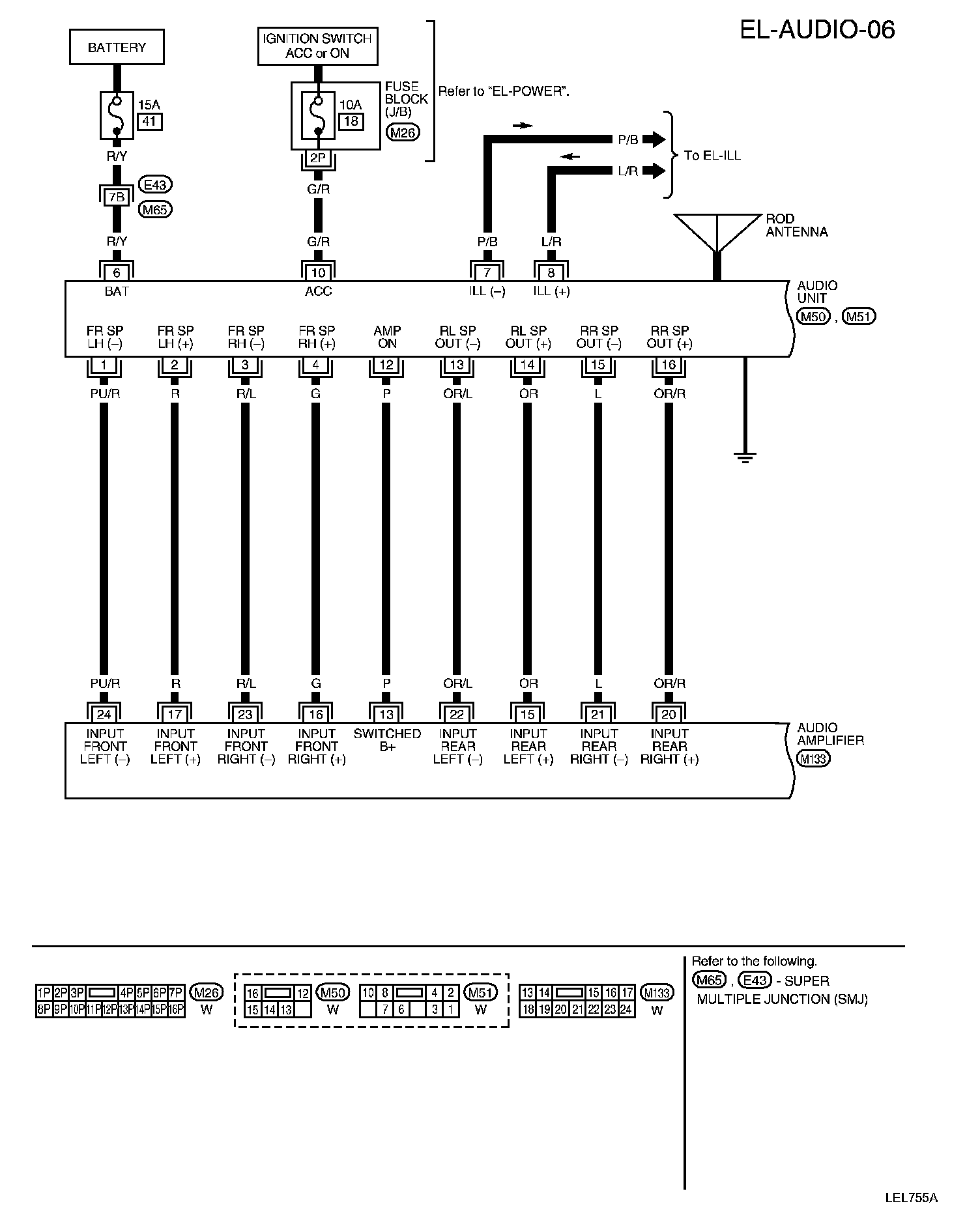

EL-AUDIO-06 (Crew Cab With Amplifier):

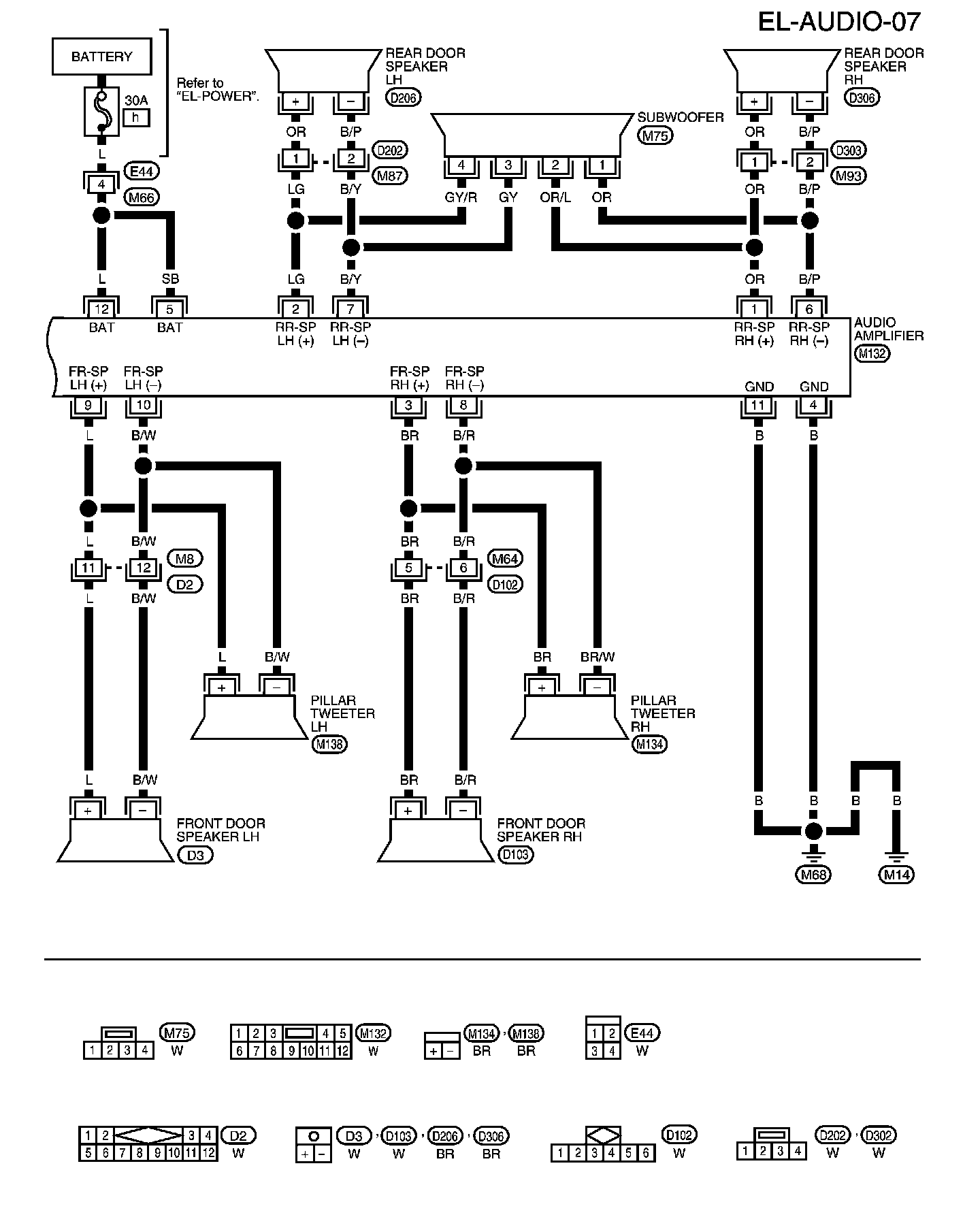

EL-AUDIO-07 (Crew Cab With Amplifier):

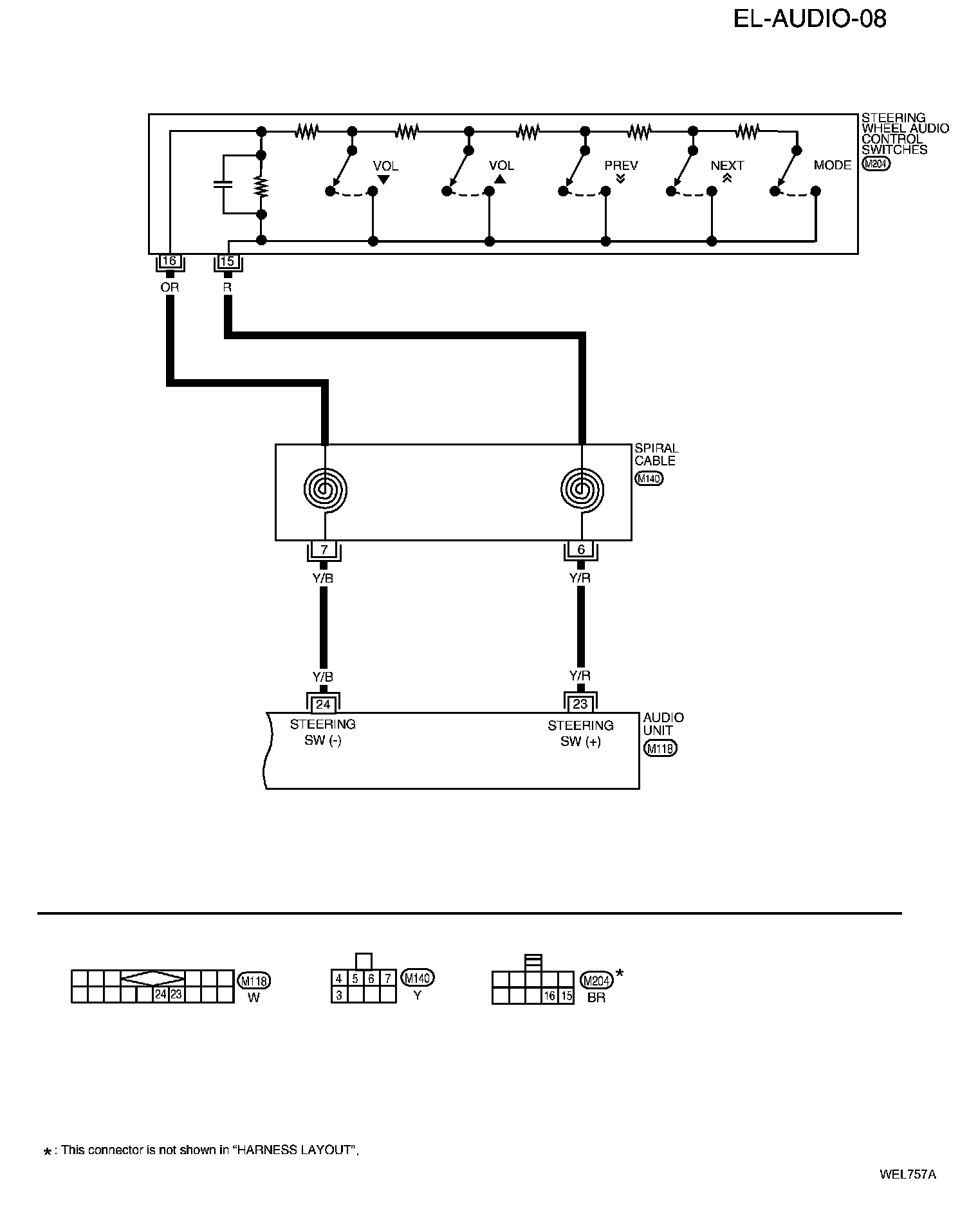

EL-AUDIO-08 (Crew Cab With Amplifier):
