Home
>>
Nissan-Datsun Truck
>>
2002
>>
Frontier XE Crew Cab 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
BR Diagrams (Brake System)
BR Diagrams (Brake System)

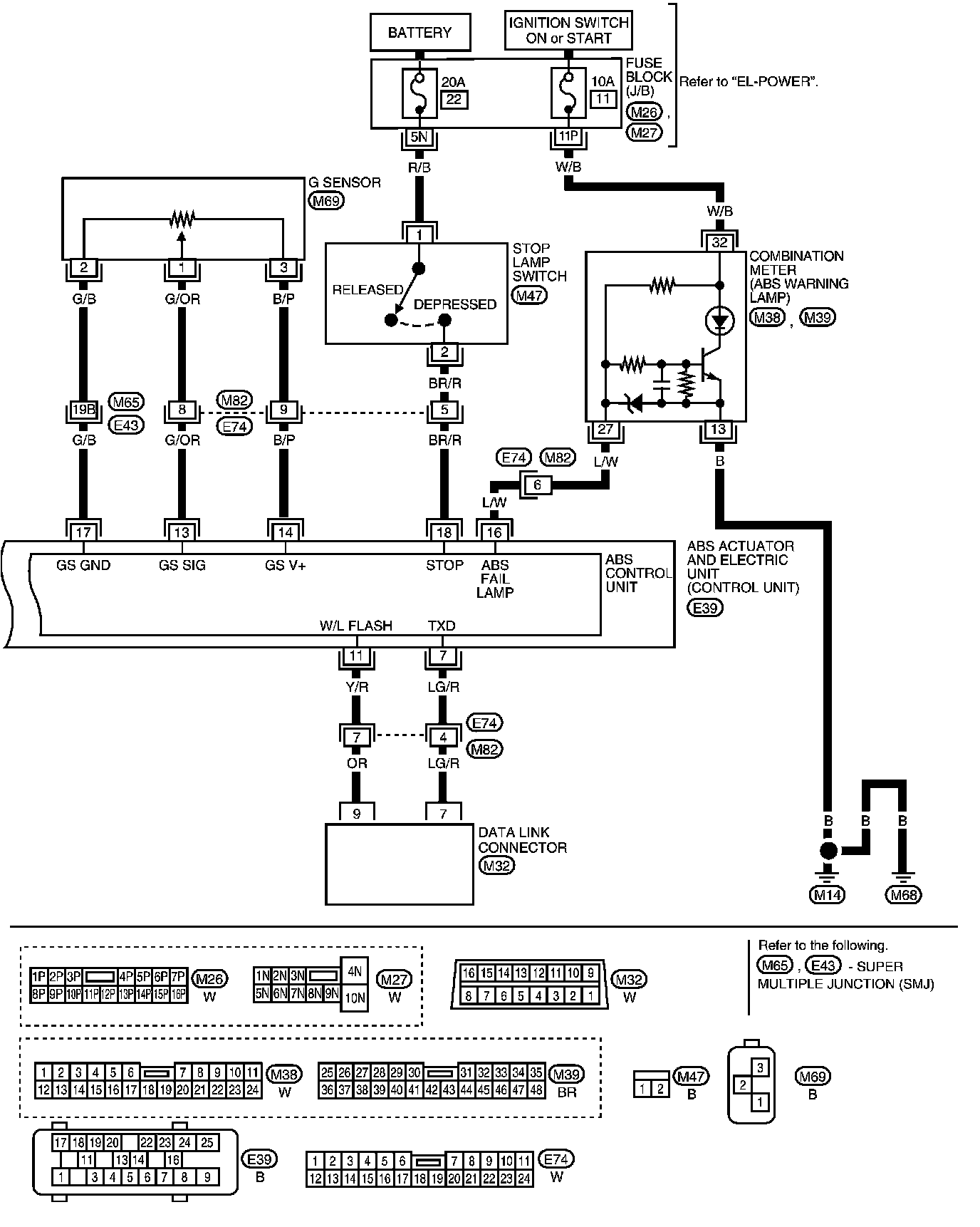

BR-ABS-11:

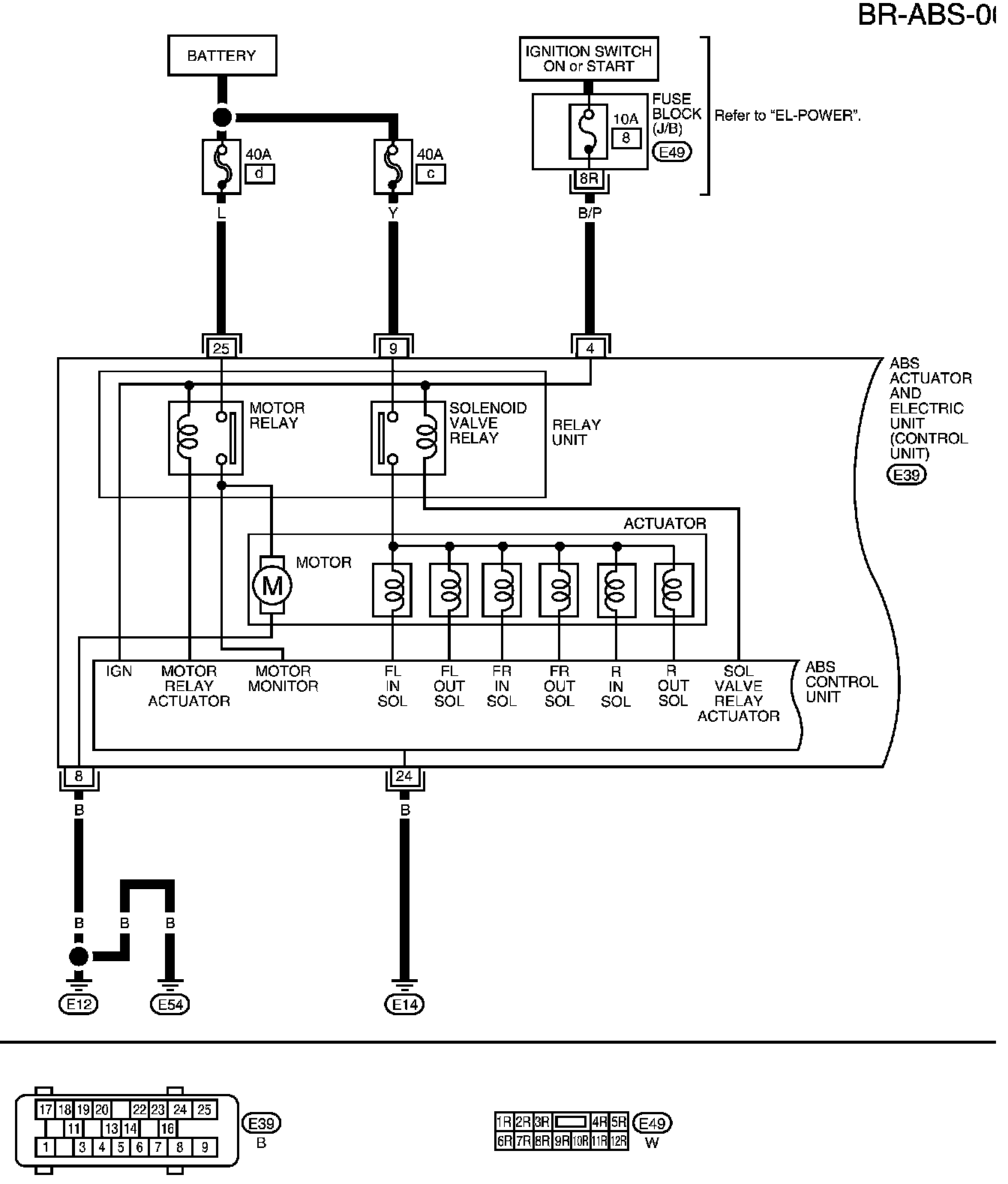

BR-ABS-06:

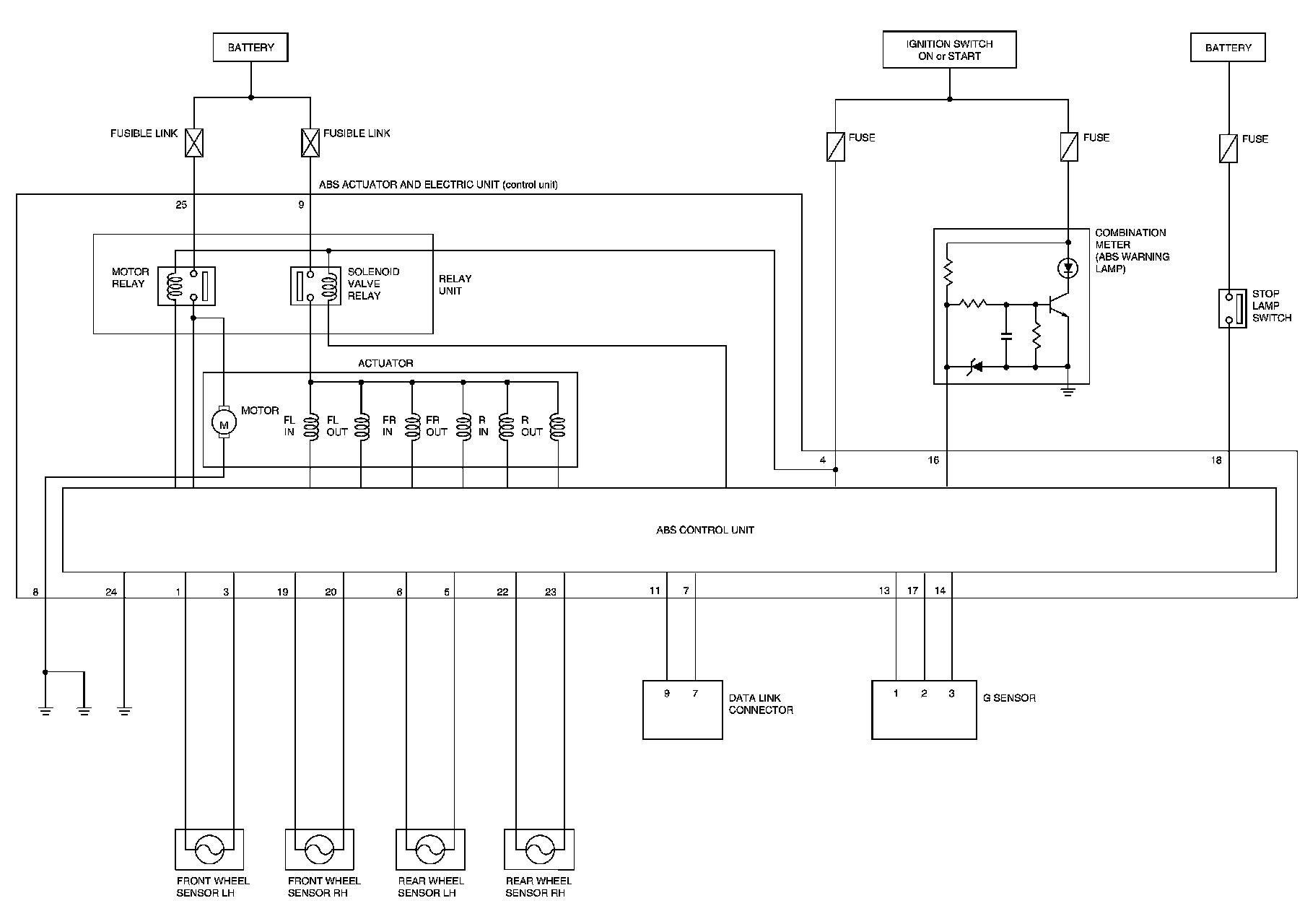

BR-ABS-07:

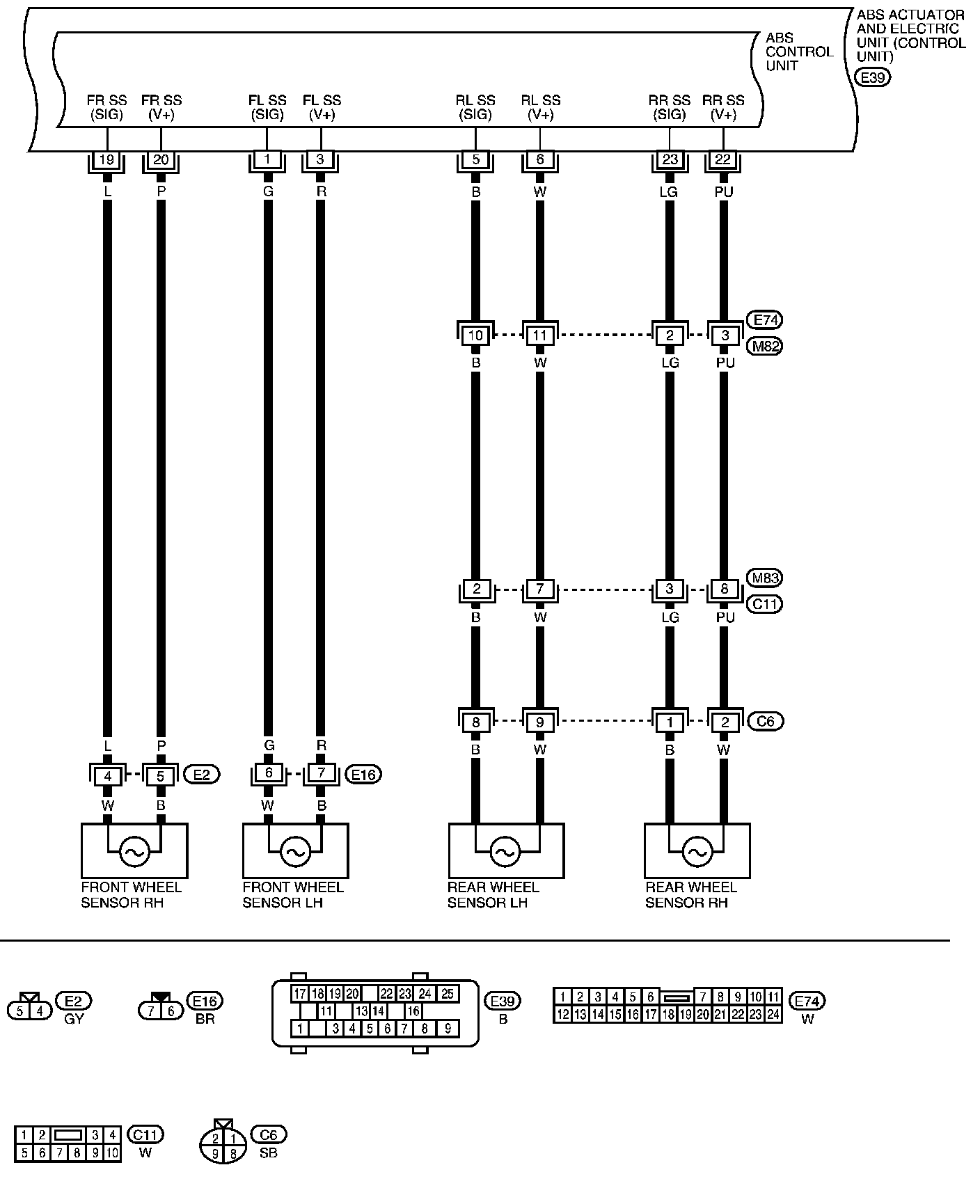

BR-ABS-08:
