Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Connector Views >> System Lettered Connector Views >> HA - Connector Views >> HA-A/C

HA-A/C

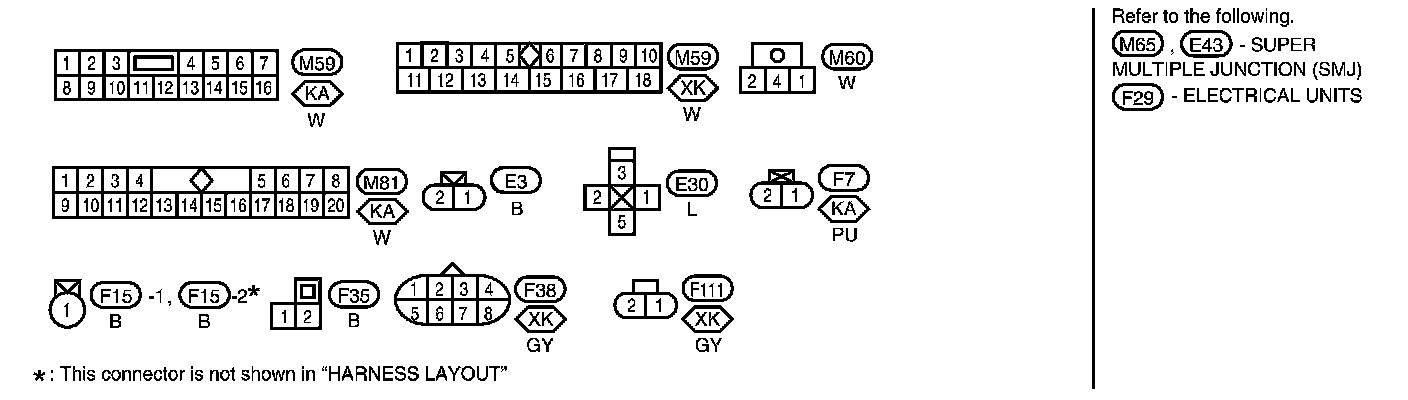

HA-A/C-01 - Connector Views:

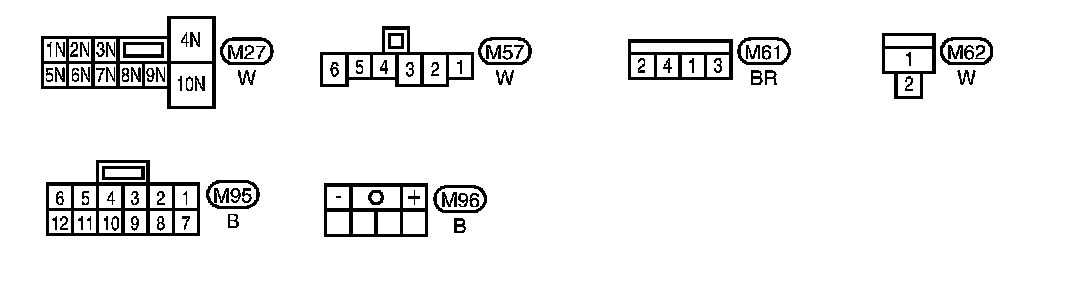

HA-A/C-02 - Connector Views:
