Diagnosis By Symptom (NVH Troubleshooting)

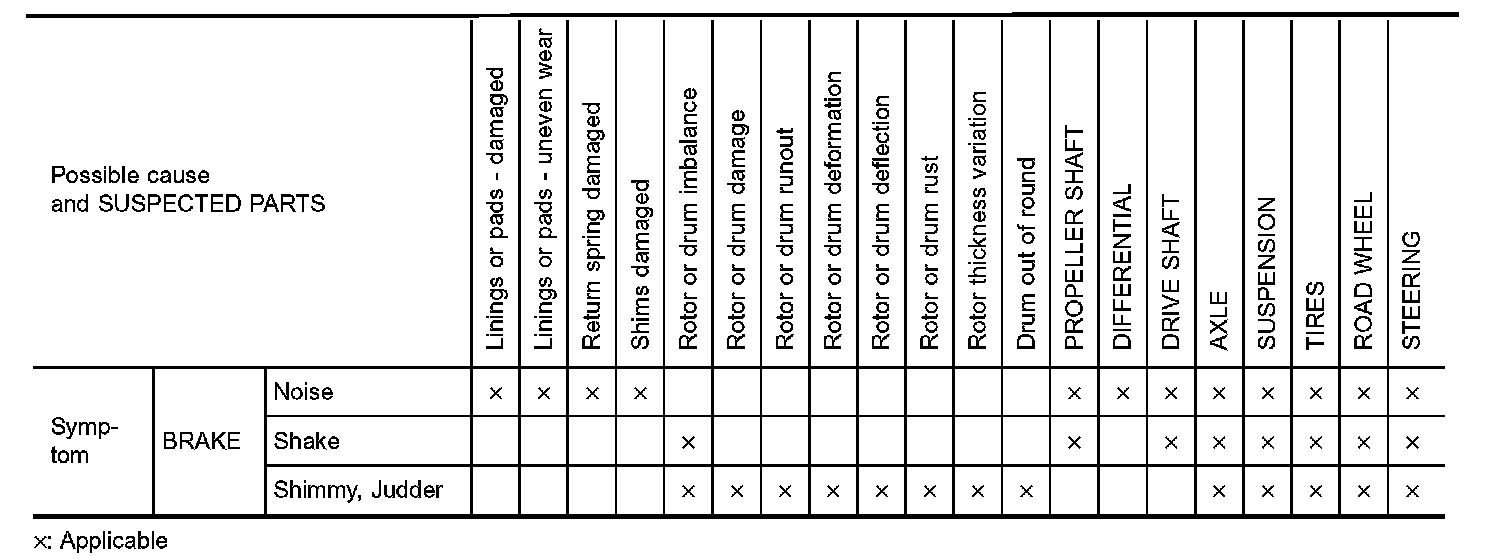

NOISE / VIBRATION / HARSHNESS / NVH TROUBLESHOOTING CHART:





Use the chart to help you find the cause of the symptom. If necessary, repair or replace these parts.
