Parking Brake Control: Service and Repair

Removal and Installation

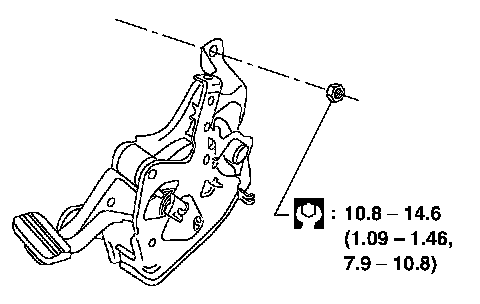

1. To remove parking brake pedal, remove lower instrument panel on driver side.
2. Disconnect parking brake switch electrical connector.
3. Remove nuts, slacken off and remove adjusting nut.





4. Remove pedal assembly from vehicle and remove front cable from pedal assembly.

Inspection
1. Check parking brake pedal assembly for wear or other damage. Replace if necessary.
2. Check cables for discontinuity or deterioration. Replace if necessary.
3. Check warning lamp and switch. Replace if necessary.
4. Check parts at each connection portion and, if found deformed or damaged, replace.
