Brake Pad: Testing and Inspection

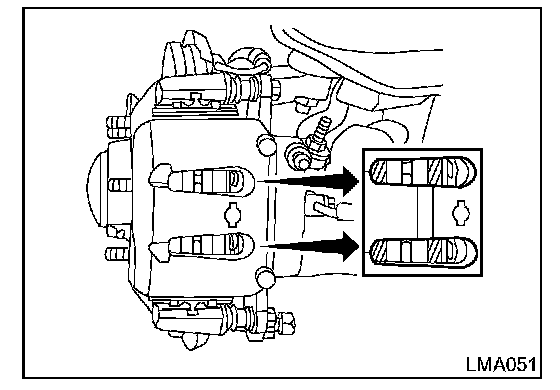

PAD
Check wear or damage.
Standard thickness:
10 mm (0.39 in)
Minimum thickness:
2.0 mm (0.079 in)
