Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom >> 7. ABS Warning Lamp Stays On When Ignition Switch Is On

7. ABS Warning Lamp Stays On When Ignition Switch Is On

7. Warning Lamp Stays On When Ignition Switch Is Turned On

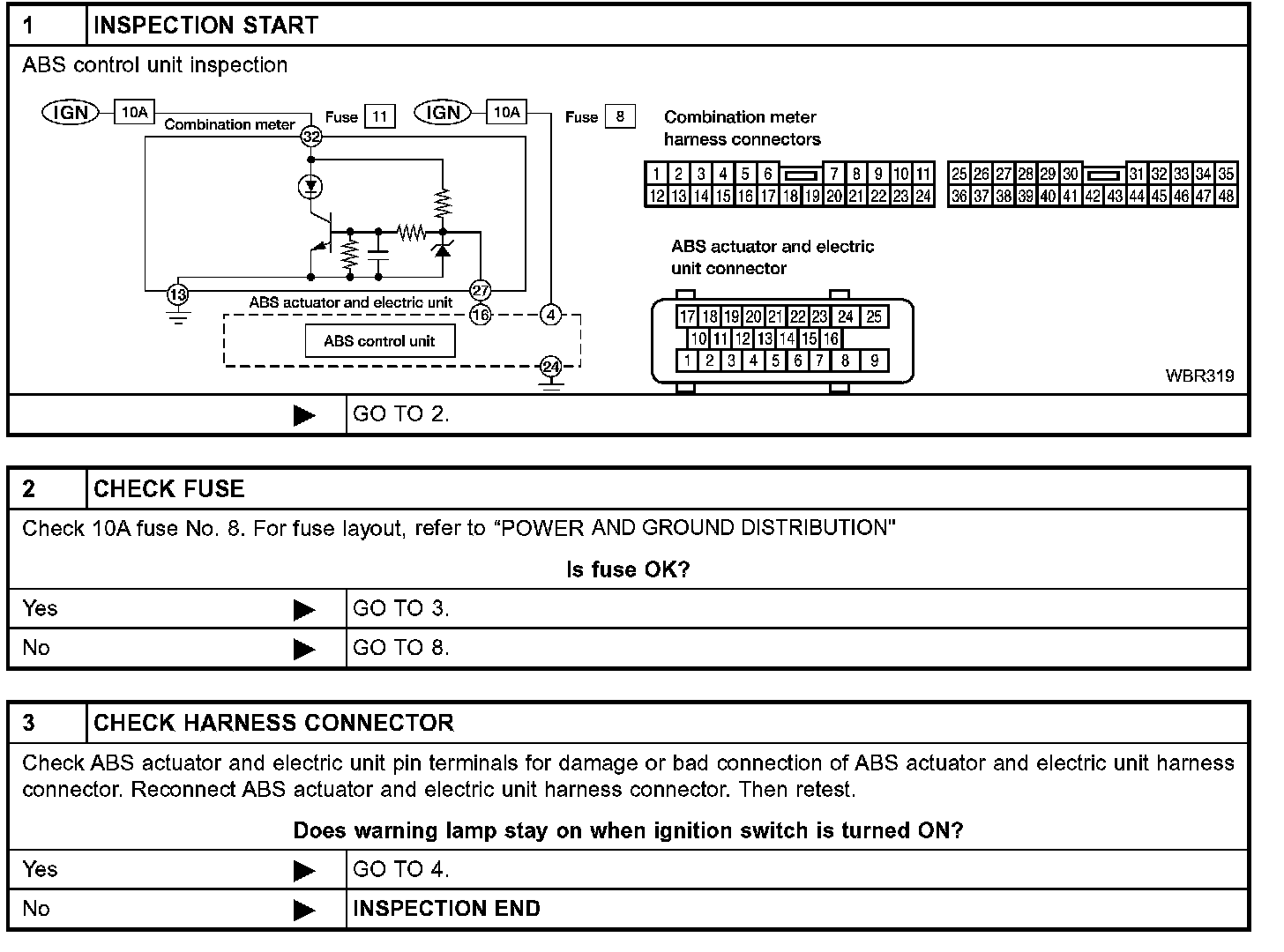

Procedure 1 - 3

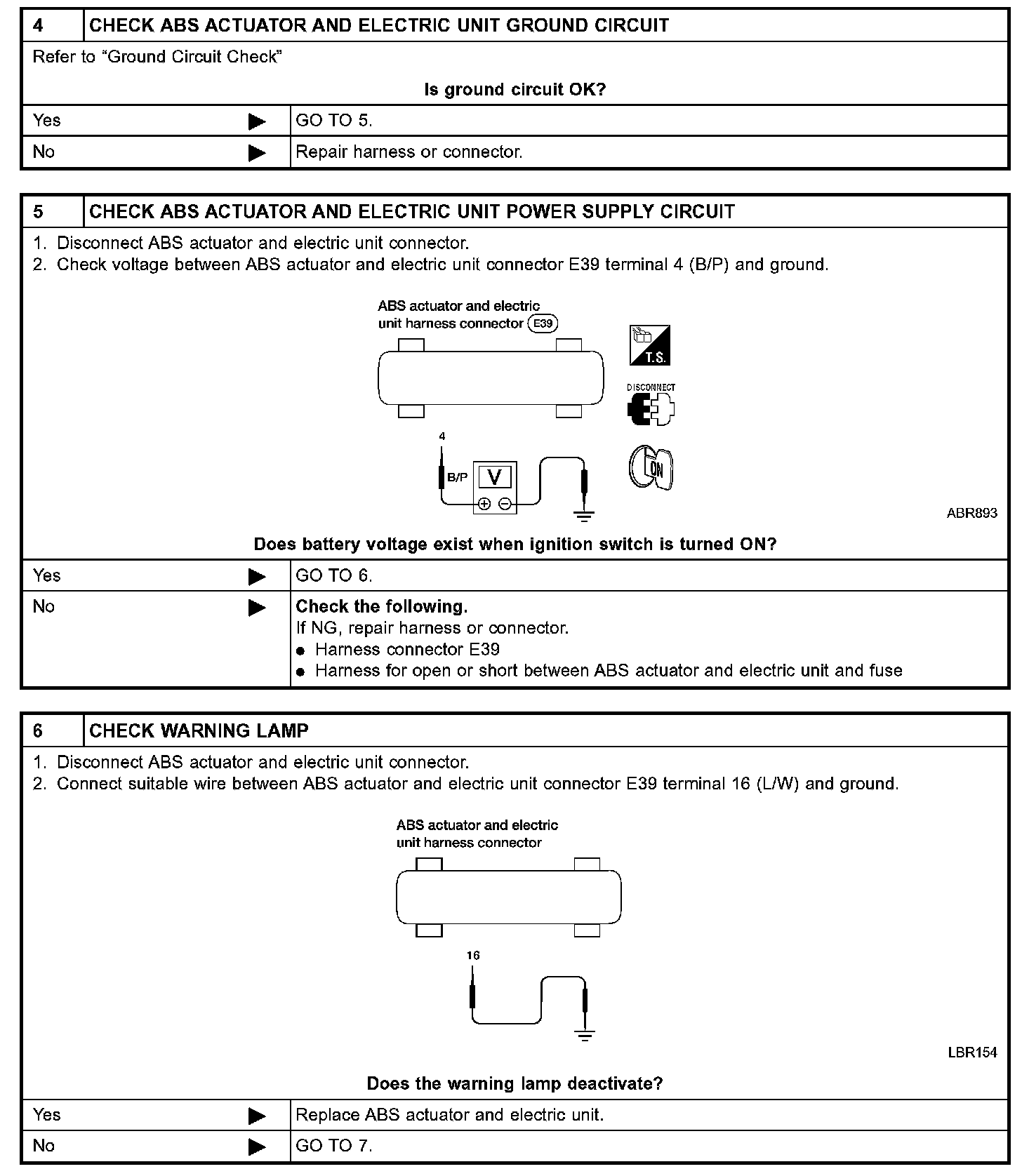

Procedure 4 - 6

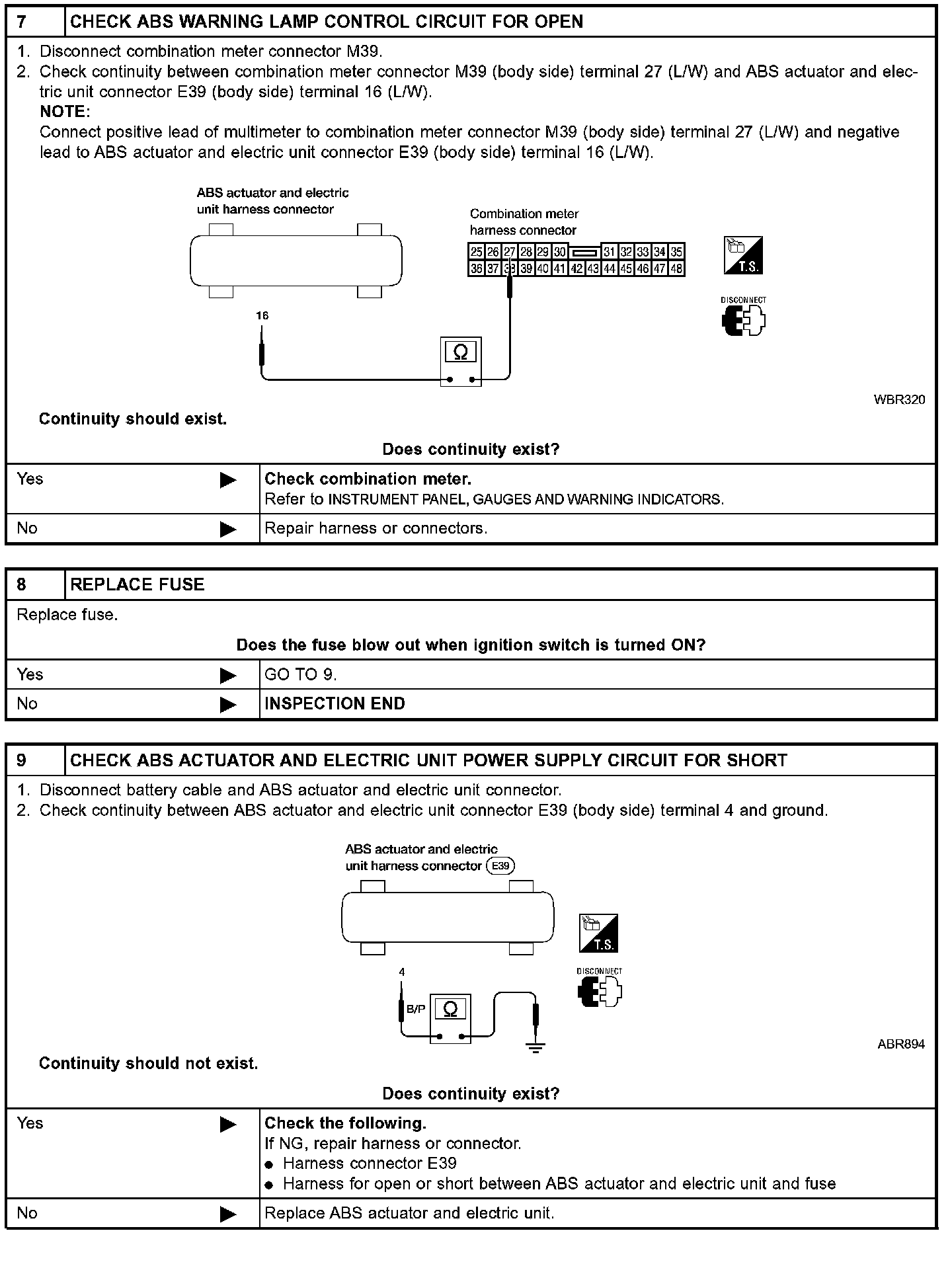

Procedure 7 - 9
