Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom >> 2. Unexpected Pedal Action

2. Unexpected Pedal Action

2. Unexpected Pedal Action





Procedure 1

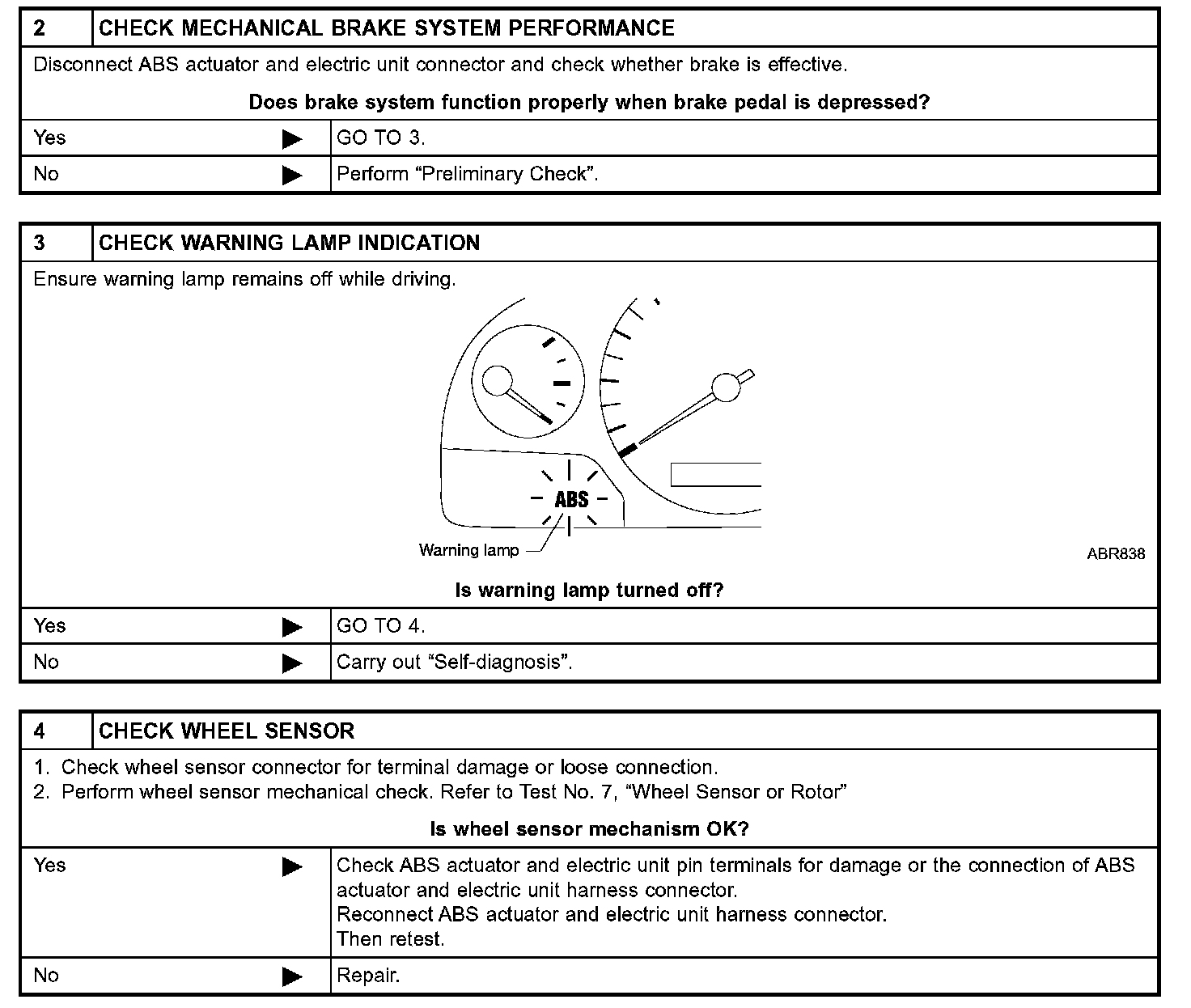

Procedure 2 - 4
