Door Mirror

Removal and Installation

CAUTION: Be careful not to scratch door rearview mirror body.

*For Wiring Diagram, refer to "POWER DOOR MIRROR".

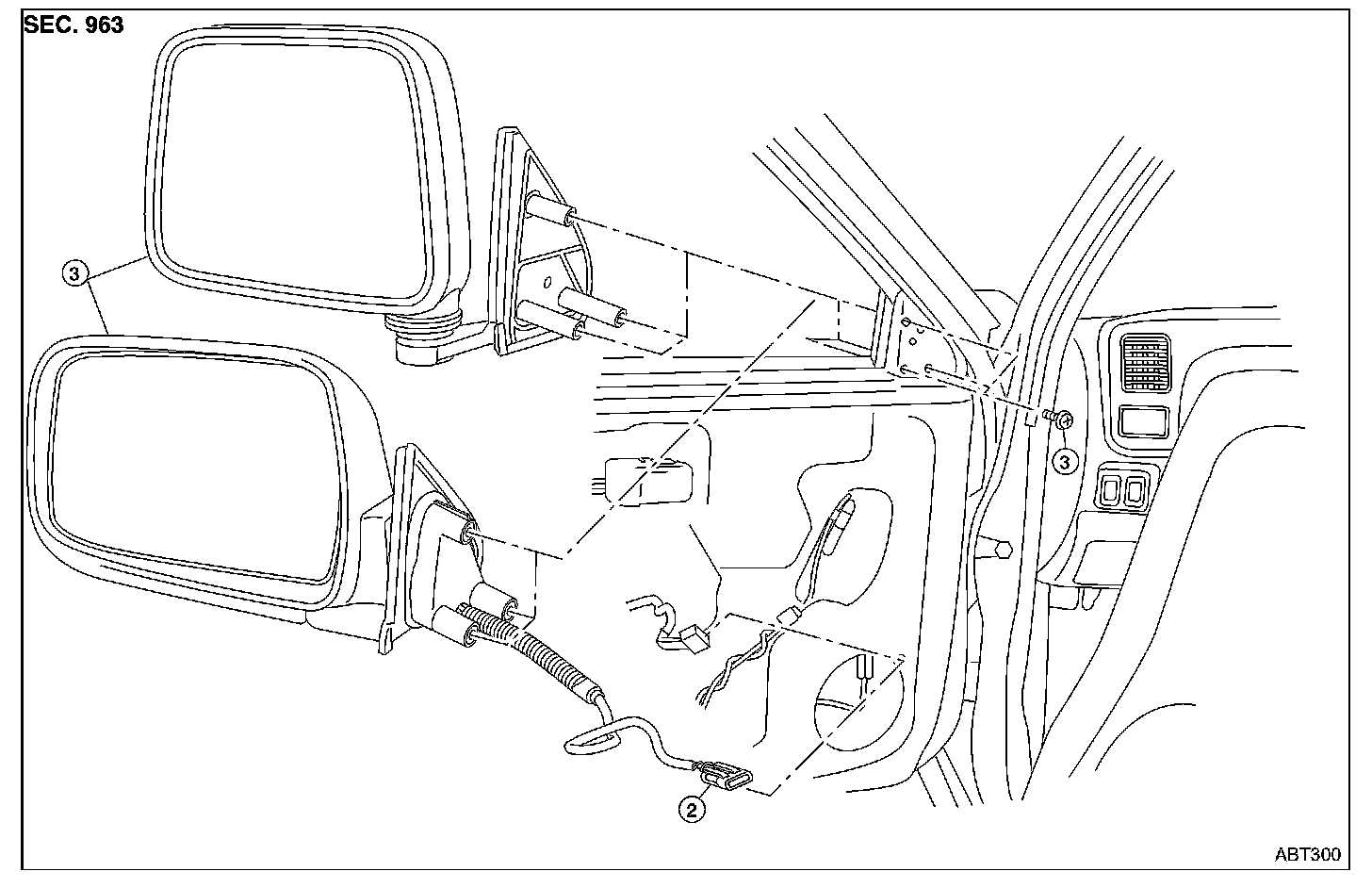

1. Remove door trim or inner cover from front corner of door. Refer to "Removal and Installation".
2. Disconnect door mirror harness connector.
3. Remove bolts securing door mirror, then remove door mirror assembly.
