Body and Frame: Locations

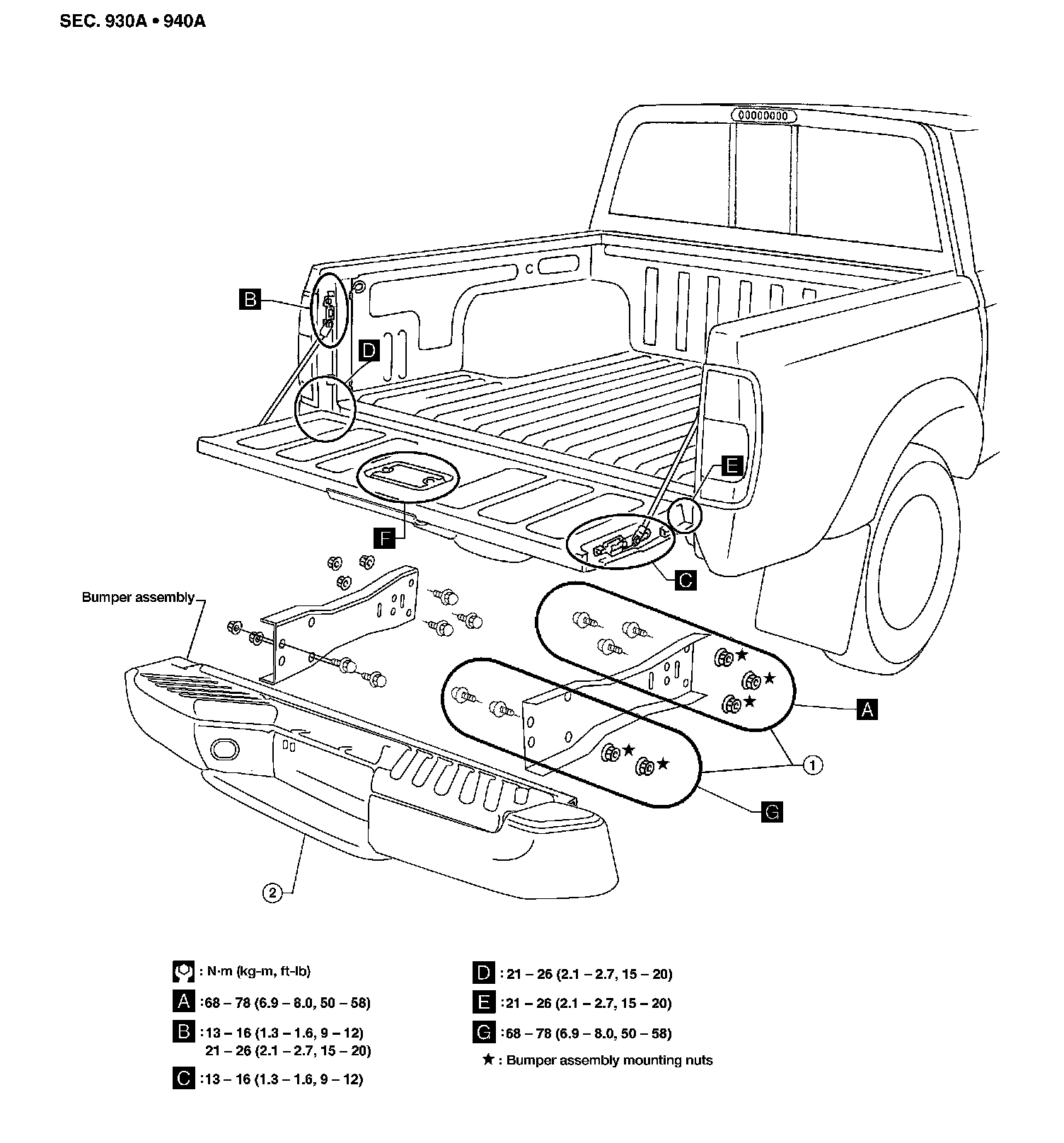

REAR BUMPER ASSEMBLY:

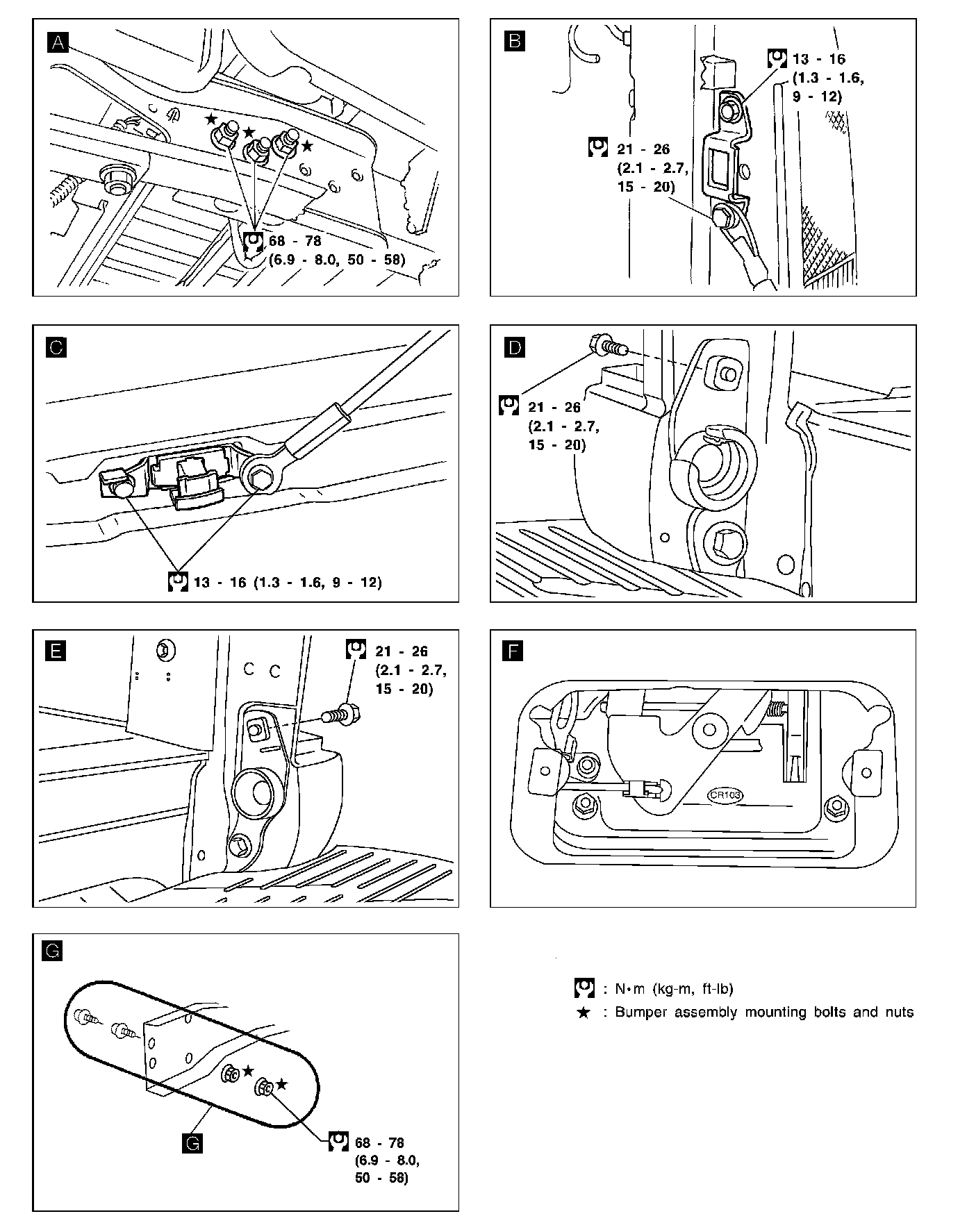

REAR BUMPER ASSEMBLY:

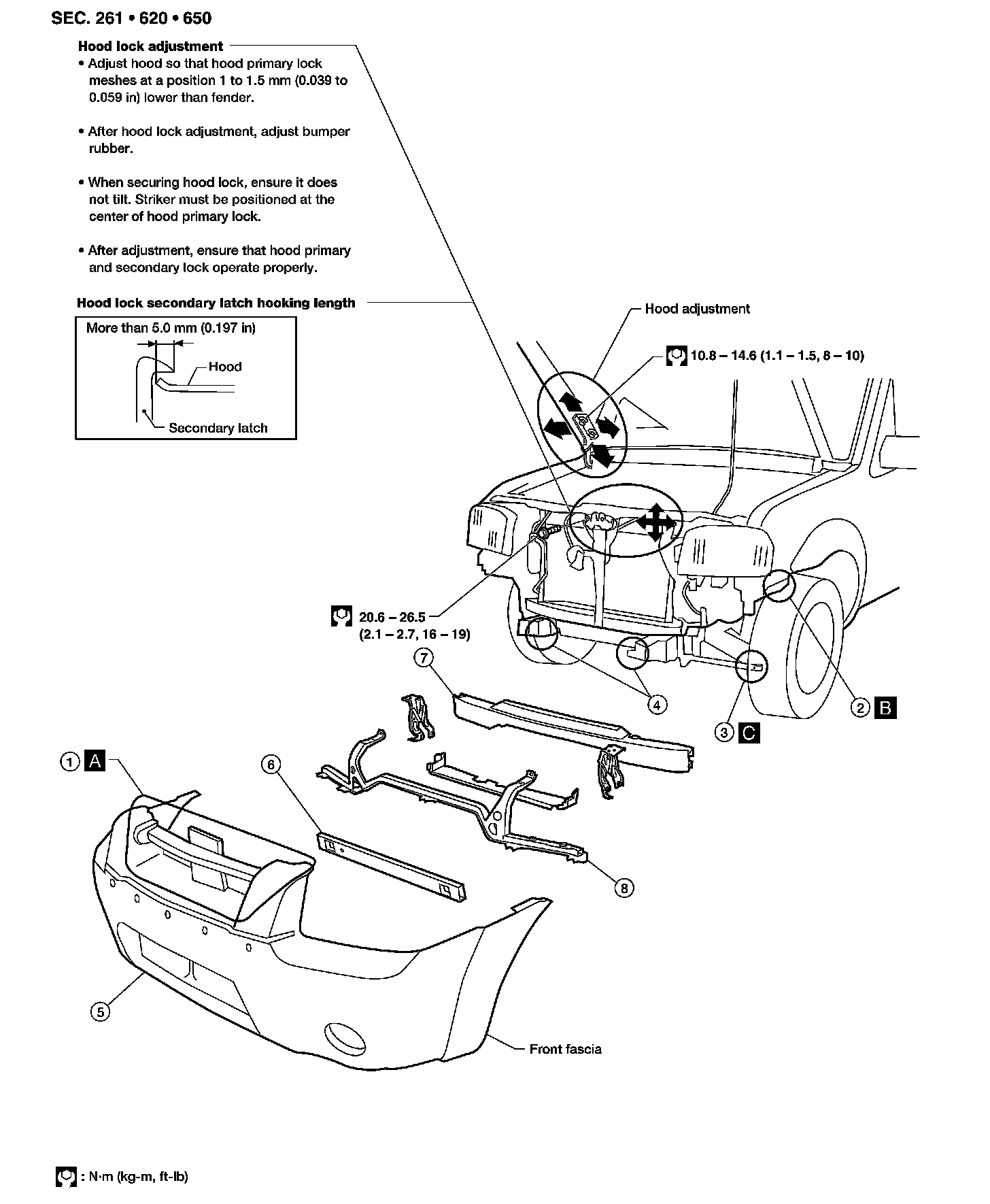

FRONT BUMPER ASSEMBLY:

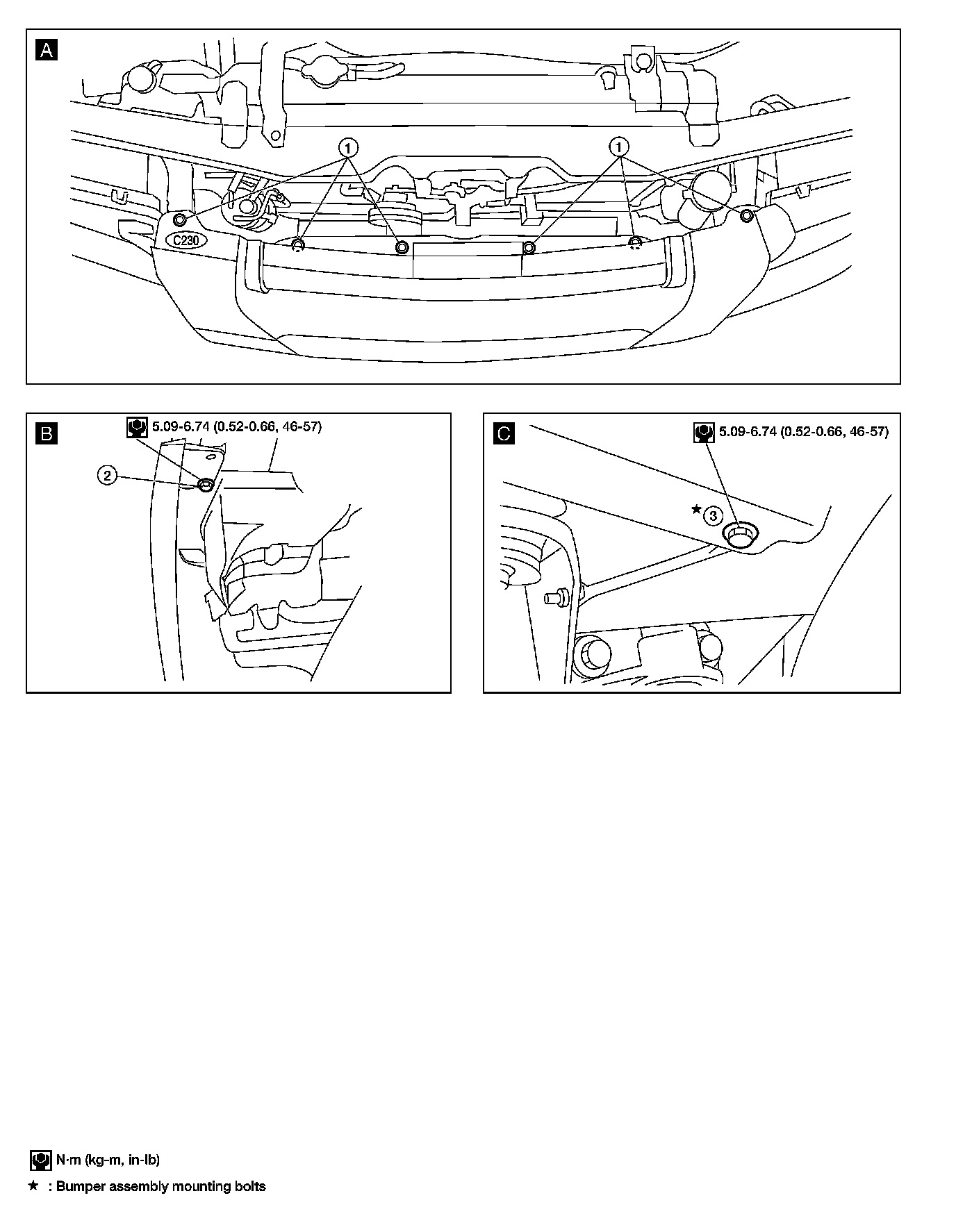

FRONT BUMPER ASSEMBLY:
