Home >> Nissan-Datsun Truck >> 2002 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Diagnosis By Symptom

Diagnosis By Symptom

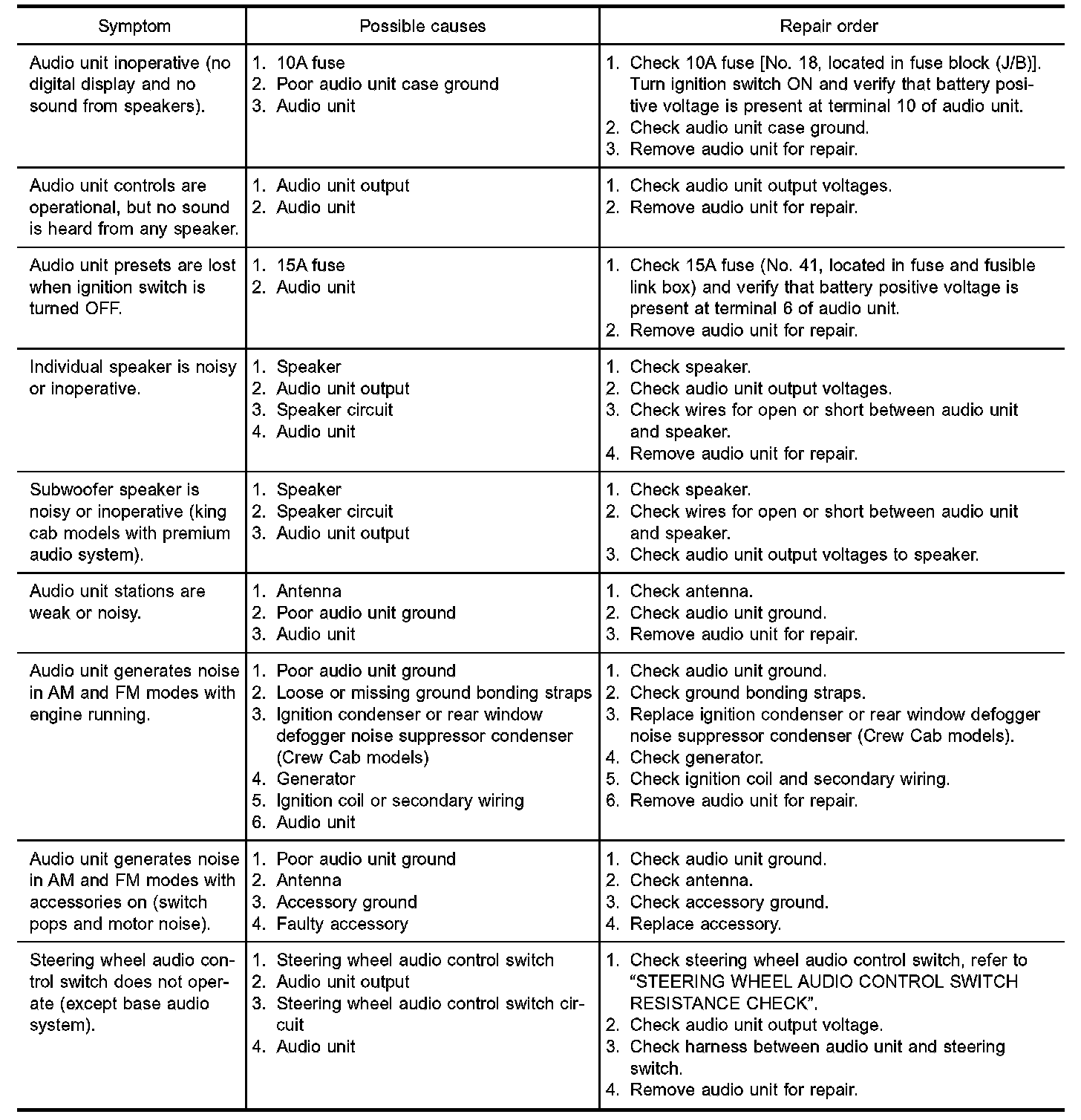

Audio Unit (Except Crew Cab With Amplifier):

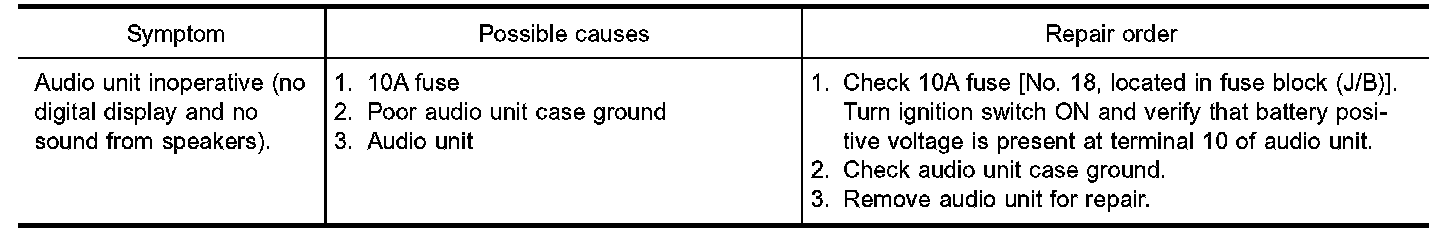

Audio Unit (Crew Cab With Amplifier) Part 1:

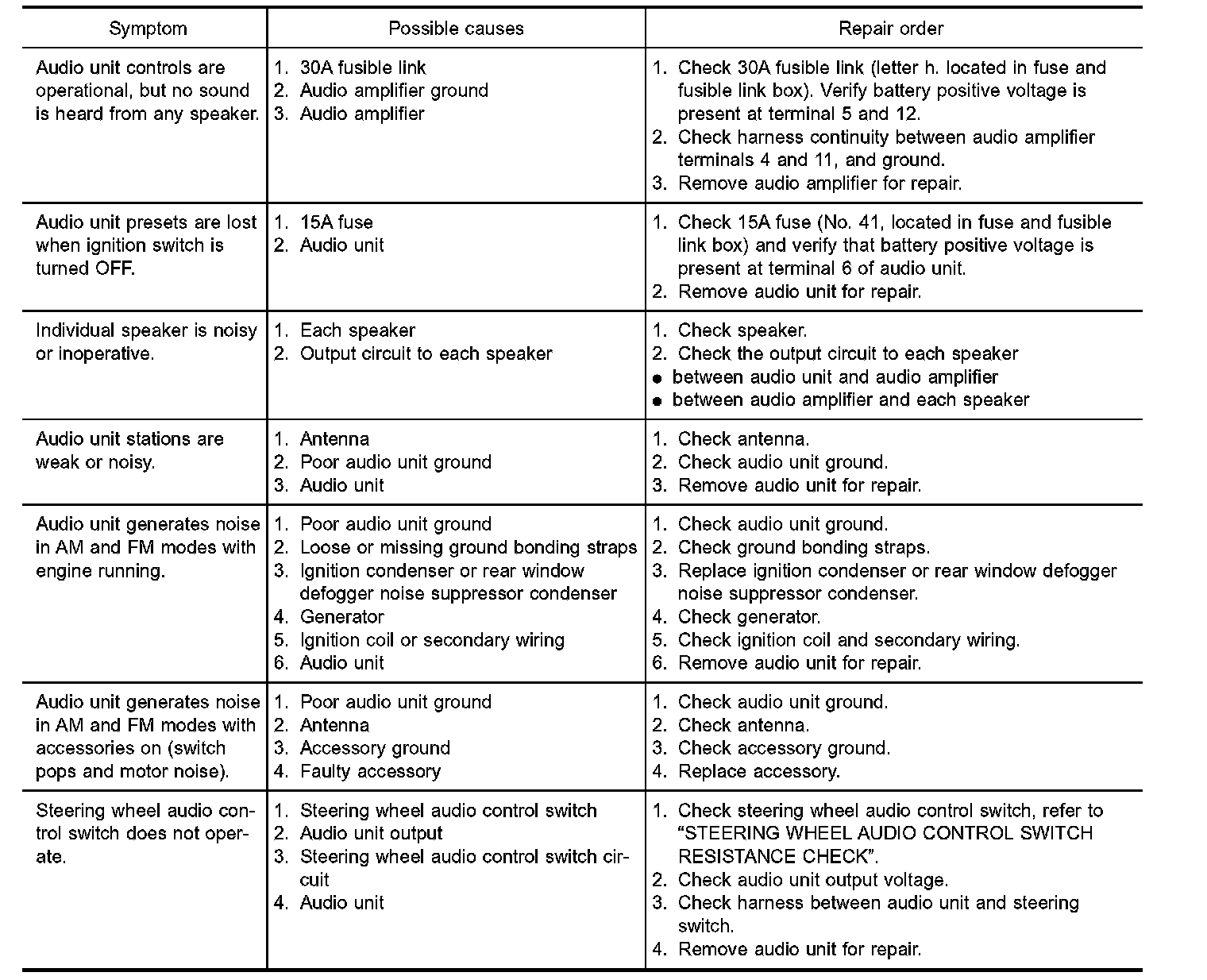

Audio Unit (Crew Cab With Amplifier) Part 2:
