Amplifier: Testing and Inspection

AMPLIFIER VOLTAGES

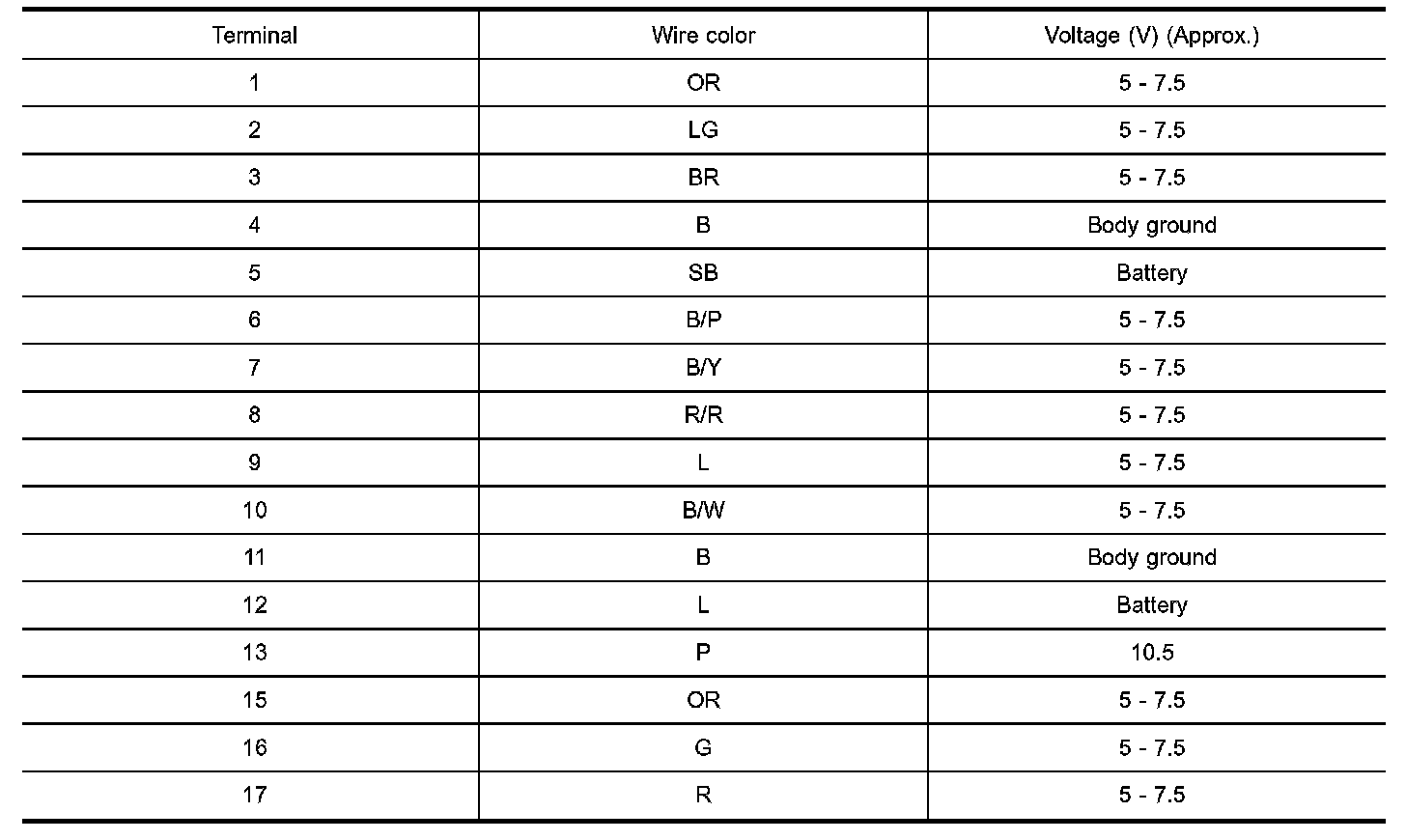

Amplifier Voltages Part 1:

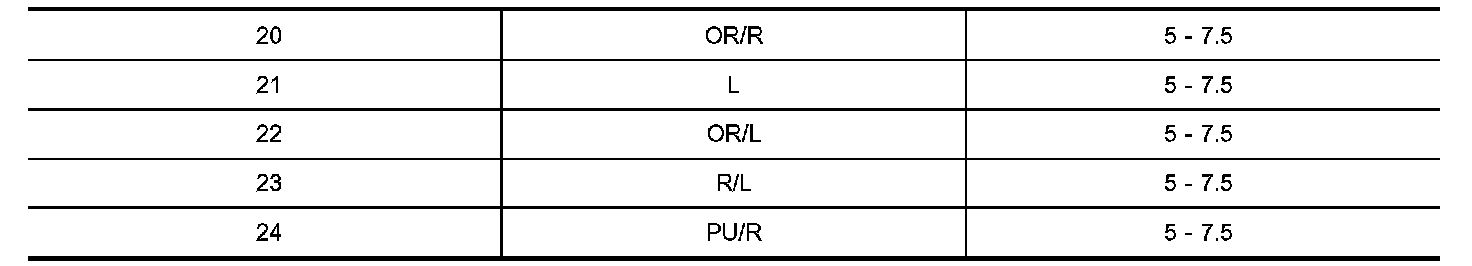

Amplifier Voltages Part 2:

All voltage inspections are made with:
- Ignition switch ON or ACC
- Audio unit ON
- Audio unit connected (If removed for inspection supply a ground to the case using a jumper wire.)
