Initial Inspection

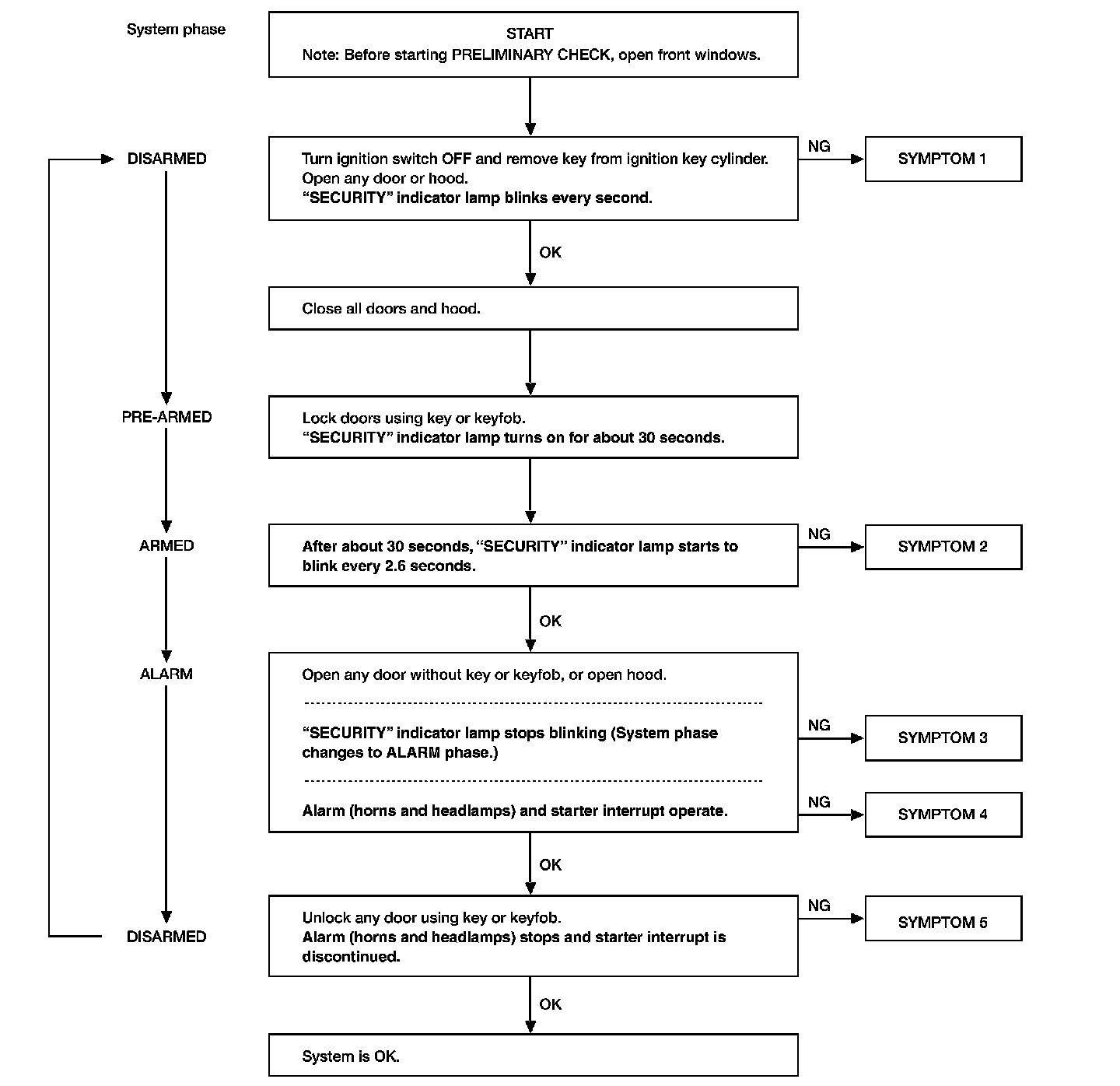

The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the flow chart.

After performing "PRELIMINARY CHECK", go to "SYMPTOM CHART".
Symptom Chart
