Terminal Lock Inspection






Terminal Lock Inspection

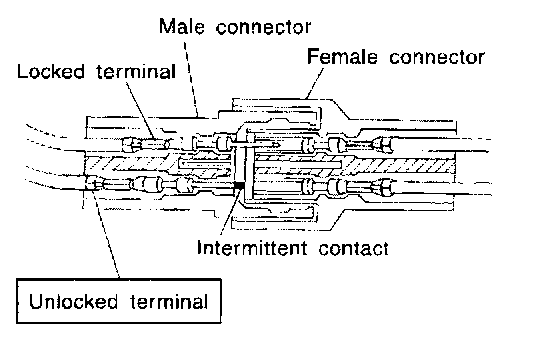

Check for unlocked terminals by pulling wire at the end of connector. An unlocked terminal may create intermittent signals in the circuit.
