Performance Chart

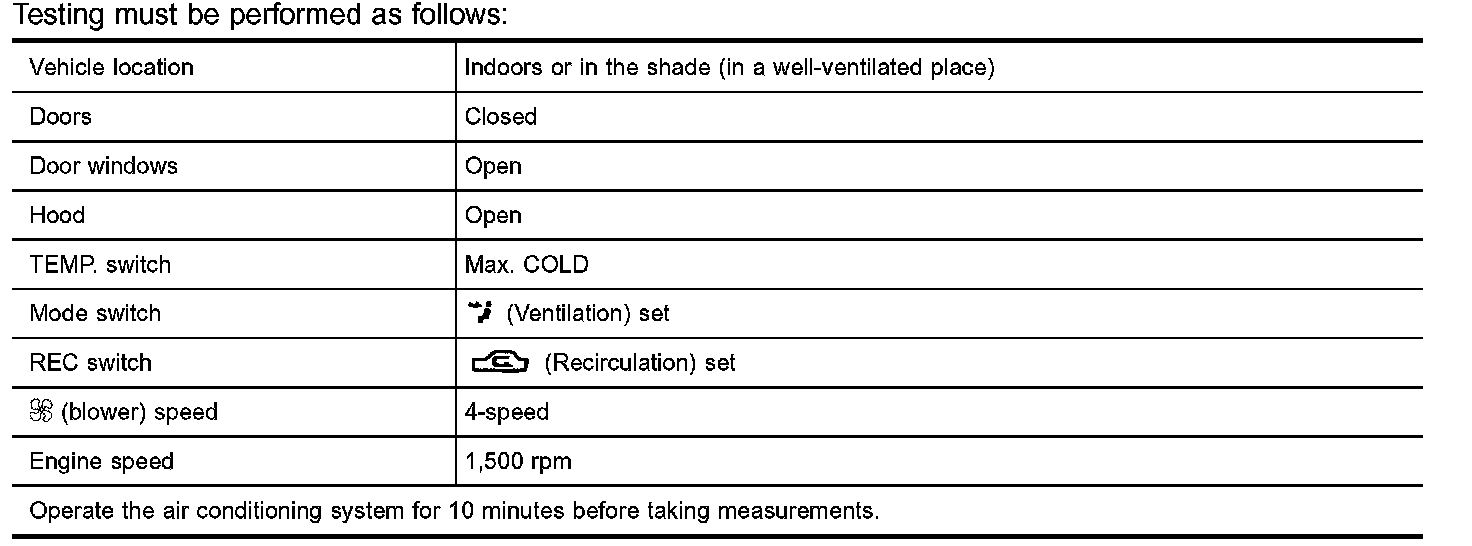

Test Condition:

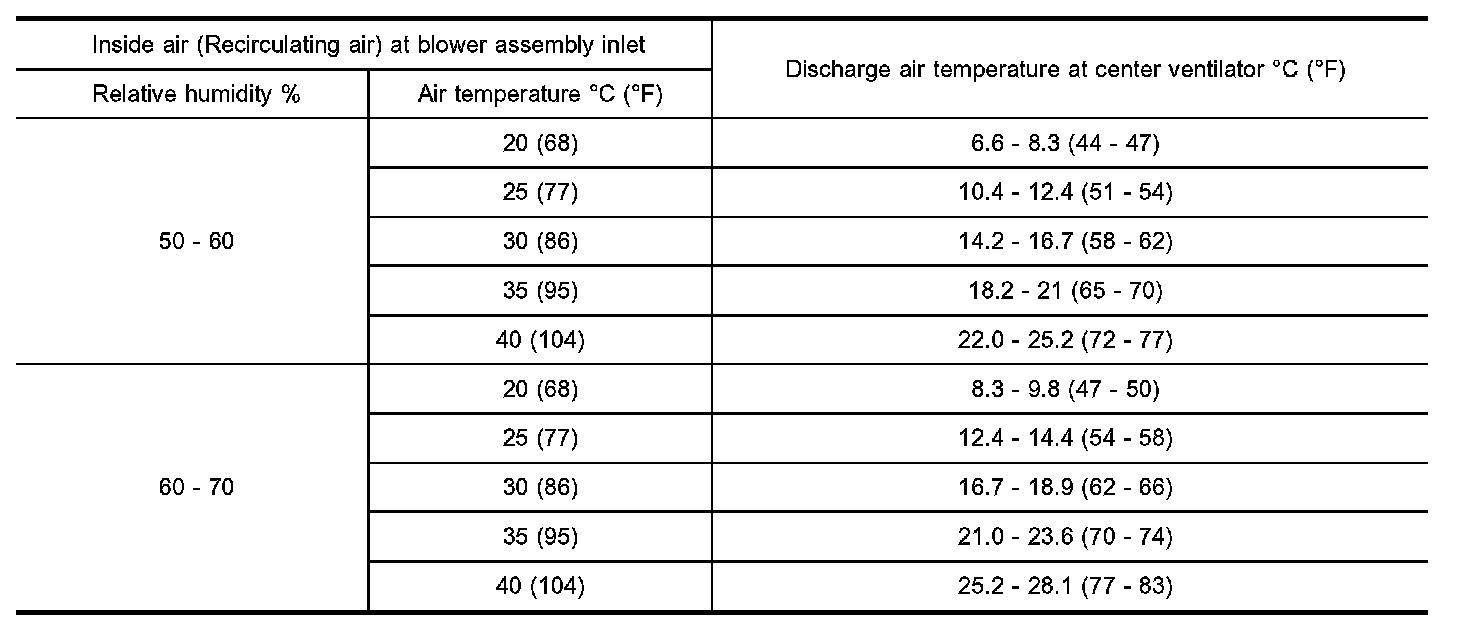

Test Reading - Recirculating-to-Discharge Air Temperature Table:



Ambient Air Temperature-to-Operating Pressure Table:
