Rear Cover Gasket Replacement

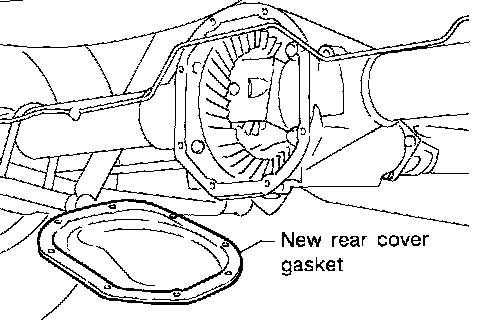

REAR COVER GASKET REPLACEMENT (Front final drive: Model R200A)
1. Drain gear oil.
2. Remove rear cover and rear cover gasket.






3. Install new rear cover gasket and rear cover.
4. Fill final drive with recommended gear oil.
