Front Oil Seal Replacement

FRONT OIL SEAL REPLACEMENT (Front final drive: Model R200A)
1. Remove front propeller shaft.

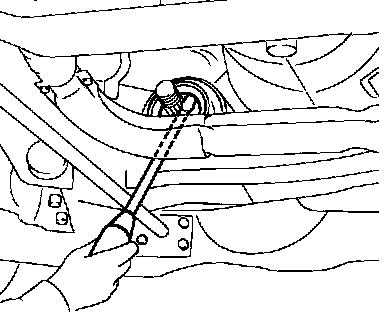

2. Loosen drive pinion nut.

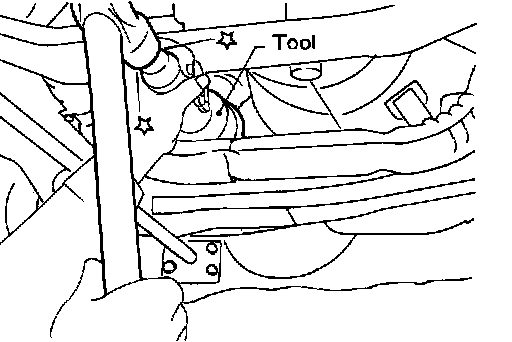

Tool number: KV38108300 (J-44195)

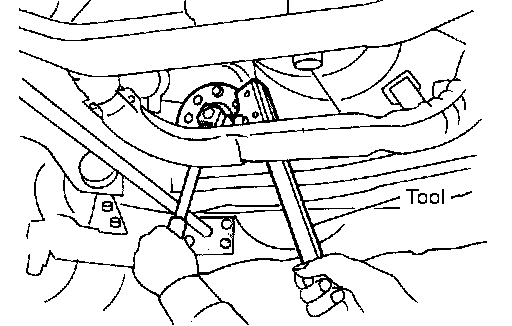

3. Remove companion flange.






4. Remove front oil seal.






5. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.
6. Install companion flange and drive pinion nut.
7. Install propeller shaft.

Tool number: KV38100500 (325273)
